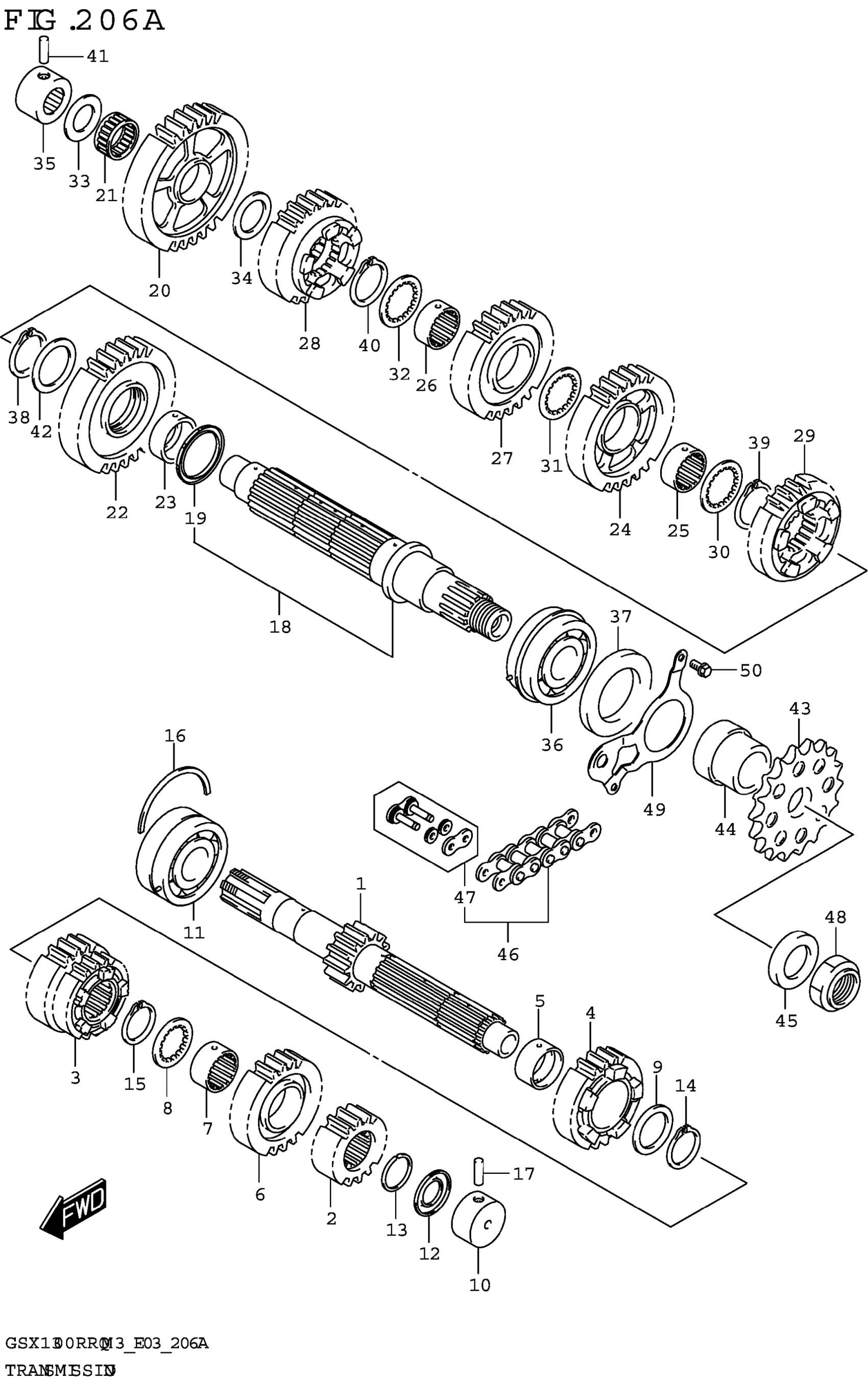

Suzuki GSX1300RRQM3 (2023) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR

24120-10L00

$251.73

2

GEAR,2ND DRIVE (NT:16)

24221-15H00

$147.00

3

GEAR,3RD & 4TH DRIVE (NT:19/2 | )

24231-15H00

$257.93

4

GEAR,5TH DRIVE (NT:22)

24251-15H01

$210.02

5

BUSH,5TH DRIVE GEAR

24252-24F20

$62.40

6

GEAR,6TH DRIVE

24261-10L00

$94.38

7

BUSH,6TH DRIVE GEAR

24262-24F20

$41.55

8

WASHER,6TH DRIVE GEAR

24263-10L00

$7.00

9

SHIM (27X36X2.5)

09181-27014

$6.87

10

BEARING

09263-20117

$50.30

11

BEARING (25X62X25.4)

09267-25012

$169.68

12

SEAL,OIL (20X31.2X2.7)

09285-20006

$5.88

13

CIRCLIP

09380-27004

$3.33

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27006

$2.73

16

C-RING

09390-62012

$6.69

17

PIN

04221-07209

$2.50

18

SHAFT,DRIVE

24130-10L00

$168.53

19

.RING,DRIVE SHAFT FRICTION

24136-48G01

$44.80

20

GEAR,1ST DRIVEN

24311-10L00

$107.08

21

BEARING (24X28X13)

09263-24030

$27.57

22

GEAR,2ND DRIVEN (NT:31)

24321-15H00

$214.50

23

BUSH,2ND DRIVEN GEAR

24322-48G00

$36.25

24

GEAR,3RD DRIVEN (NT:29)

24331-15H00

$214.50

25

BUSH,3RD DRIVEN GEAR

24332-24F20

$41.55

26

BUSH,3RD DRIVEN GEAR

24332-24F20

$41.55

27

GEAR,4TH DRIVEN (NT:27)

24341-15H00

$214.50

28

GEAR,5TH DRIVEN

24351-10L00

$143.12

29

GEAR,6TH DRIVEN (NT:24)

24361-15H00

$219.87

30

WASHER,LOCK (30X38X2)

09167-30008

$6.65

31

WASHER,LOCK (30X38X2)

09167-30008

$6.65

32

WASHER,LOCK (30X38X2)

09167-30008

$6.65

33

SHIM (20X34X1)

09181-20251

$2.77

34

SHIM (24X34X1)

09181-24005

$3.21

35

BEARING

09263-20118

$50.30

36

BEARING (30X62X23.8)

09267-30011

$181.72

37

SEAL,OIL (42X62X7)

09283-42018

$32.83

38

CIRCLIP

09380-30009

$3.15

39

CIRCLIP

09380-30009

$3.15

40

CIRCLIP

09380-30009

$3.15

41

PIN

04221-07209

$2.50

42

WASHER

08211-30405

$4.53

43

SPROCKET,ENGINE

27511-15H00

$95.40

44

SPACER,ENGINE SPROCKET NO.1

27531-15H00

$42.15

45

SPACER,ENGINE SPROCKET NO.2 ( | 7.2X42X6.5)

27532-15H00

$18.00

46

CHAIN ASSY,DRIVE (RK GB50GSVZ

27600-24F70-114

$405.80

47

.JOINT SET CHAIN

27620-24F70

$15.23

48

NUT

09159-22008

$27.24

49

RETAINER,CL PUSH ROD OIL SEAL

24751-10L00

$11.90

50

BOLT (6X12)

09103-06236

$2.71
