2022 Suzuki GSX1300RRQM2 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

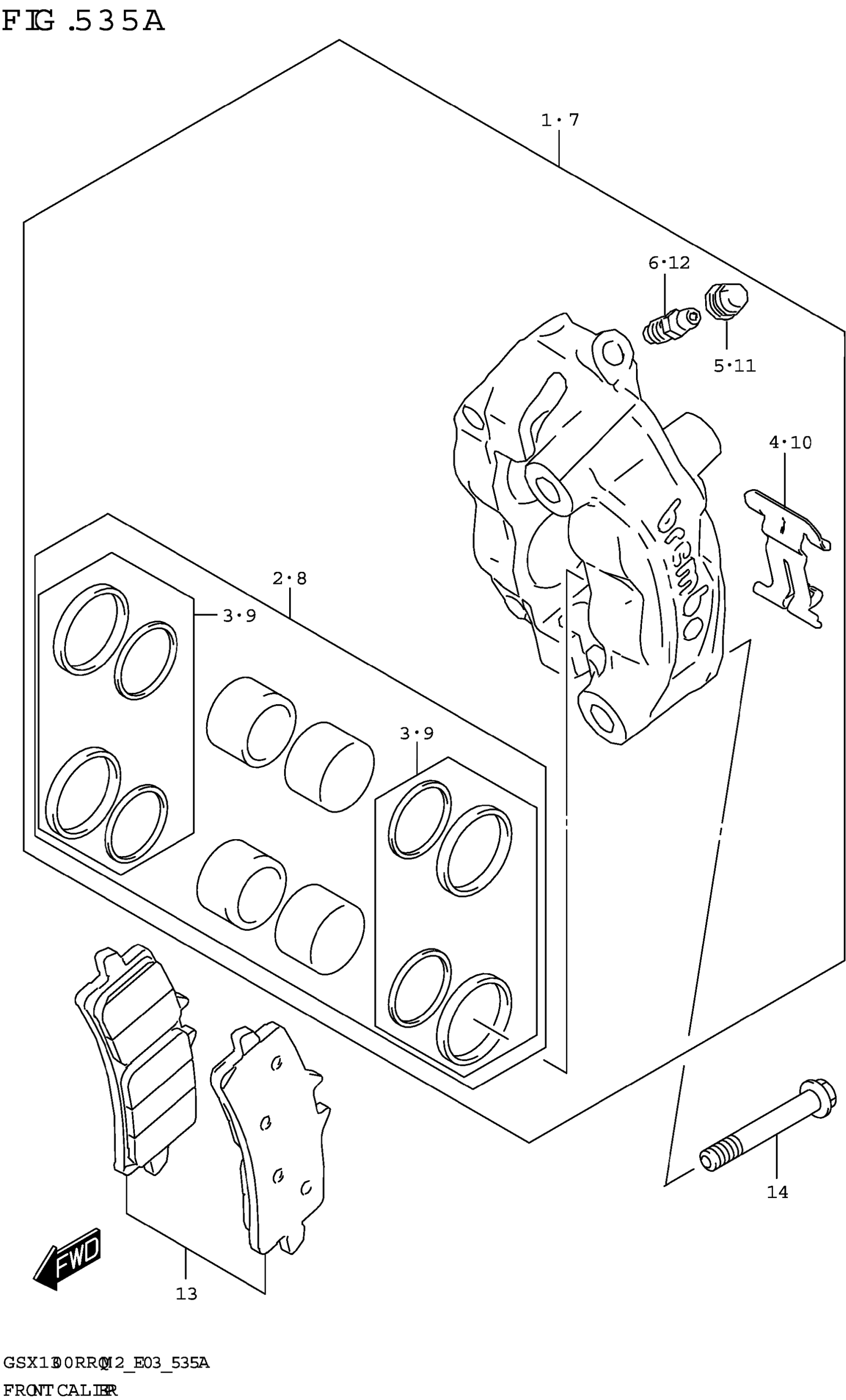

2022 Suzuki GSX1300RRQM2 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FRONT,R

59100-10L00-999

1

$514.60

In stock

2

.PISTON SET

59100-10820

1

$90.55

In stock

3

..SEAL SET

59100-10830

1

$54.08

In stock

4

.SPRING

59151-14J00

1

$24.03

In stock

5

.CAP,BLEEDER

59122-03FA0

—
Out of stock

6

.BLEEDER

59123-14J00

—
Out of stock

7

CALIPER ASSY,FRONT,L

59300-10L00-999

1

$514.60

In stock

8

.PISTON SET

59100-10820

1

$90.55

In stock

9

..SEAL SET

59100-10830

1

$54.08

In stock

10

.SPRING

59151-14J00

1

$24.03

In stock

11

.CAP,BLEEDER

59122-03FA0

—
Out of stock

12

.BLEEDER

59123-14J00

—
Out of stock

13

PAD SET (T:4.0)

59100-14860

2

$157.35

In stock

14

BOLT,FRONT CALIPER

59199-10L00

4

$6.00

In stock
