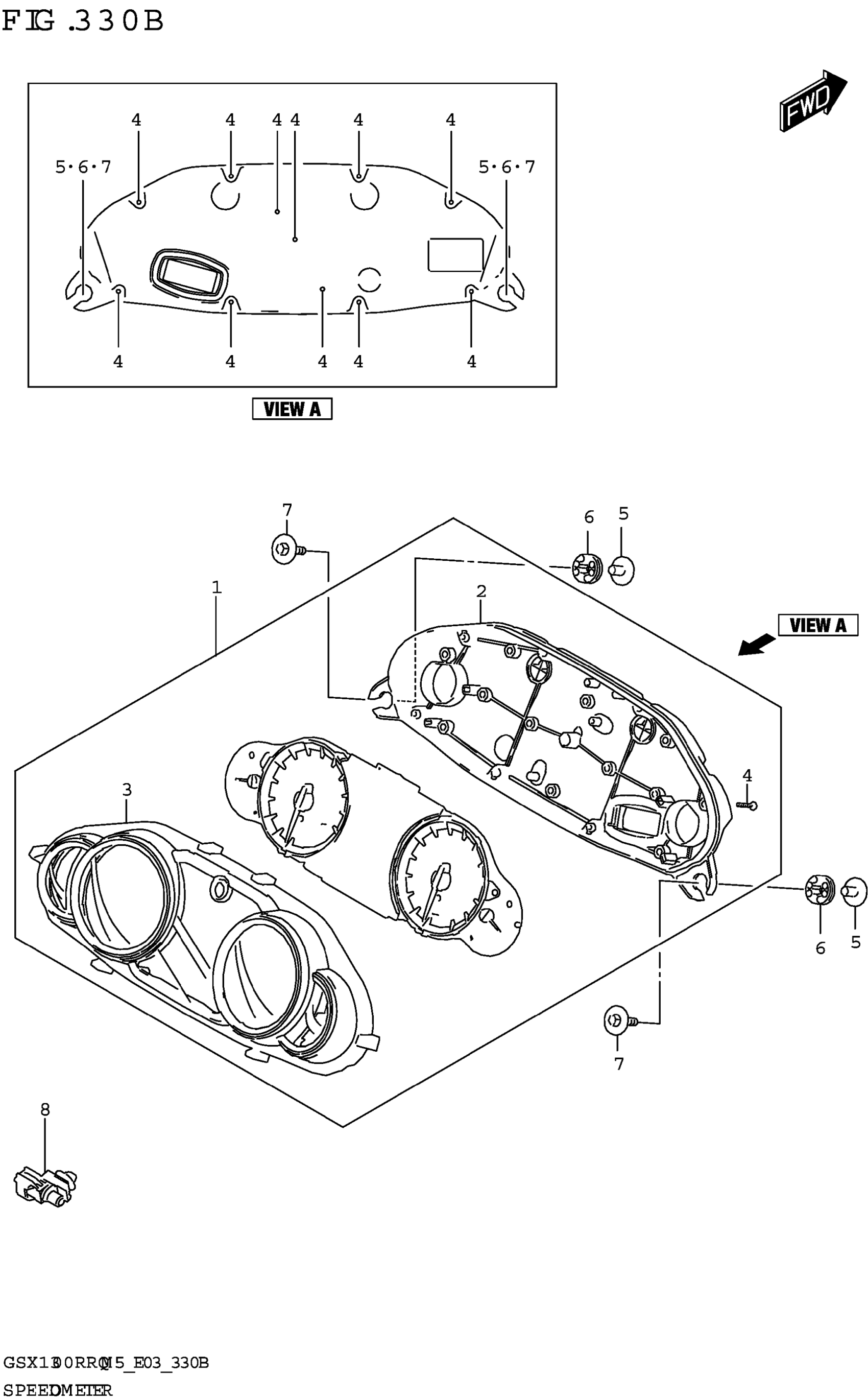

Suzuki GSX1300RRQKM5 (2025) SPEEDOMETER (E03,E33) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-10L11

$2,322.18

2

.CASE ASSY,LOWER

34111-10L00

$110.63

3

.CASE ASSY,UPPER

34150-10L00

$187.47

4

SCREW

34183-10C00

$2.19

5

WASHER

34187-24F00

$8.55

6

CUSHION,SPEEDOMETER

34955-10L00

$4.67

7

BOLT (6X25)

09116-06186

$2.66

8

SENSOR,AIR TEMP

95643-58J00

$57.00
