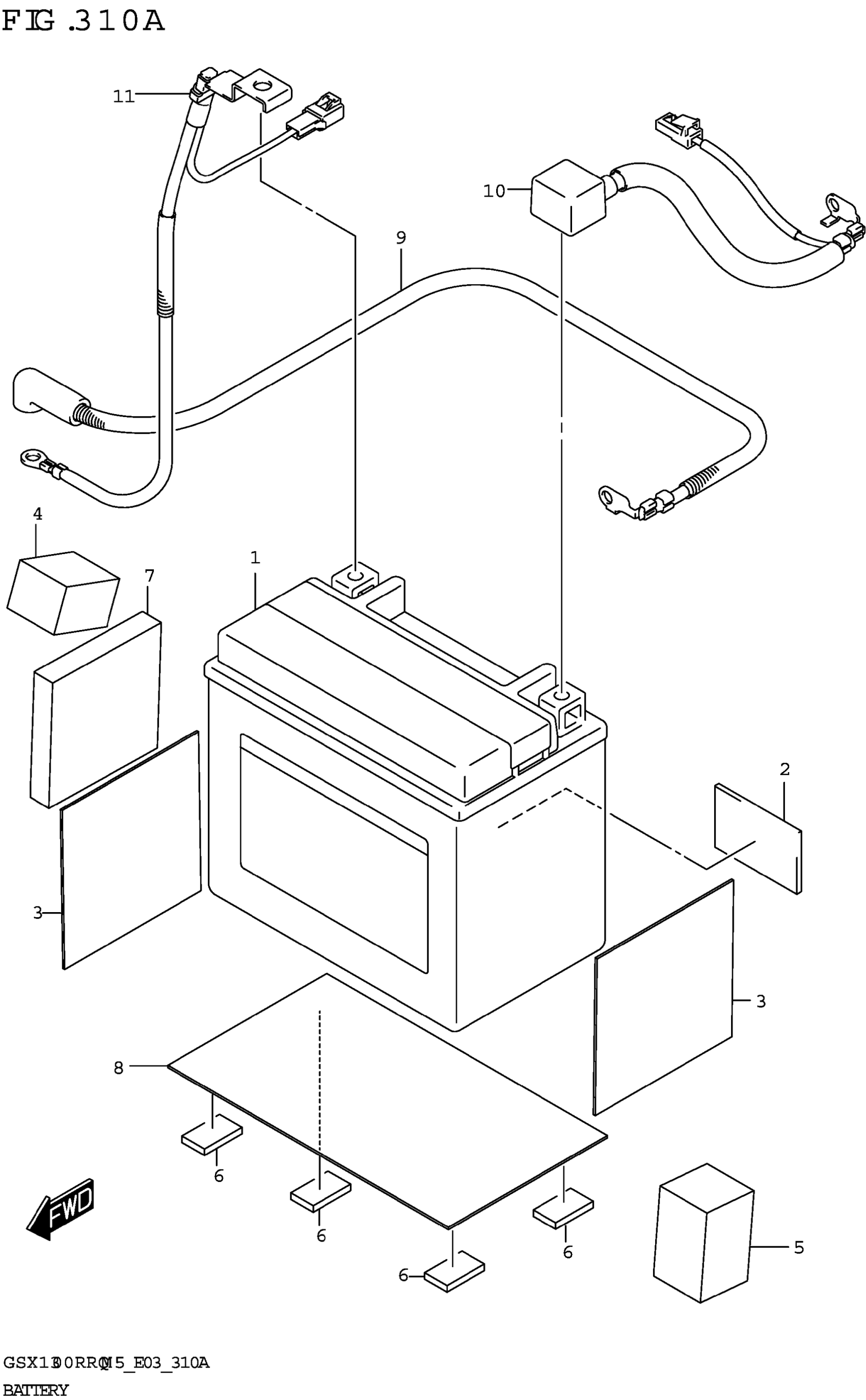

Suzuki GSX1300RRQKM5 (2025) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FTZ14S,12V/11.2 | H)

33620-31J01

$147.93

2

CUSHION (30X50X3)

33652-36001

$1.68

3

PROTECTOR,BATTERY

33652-10L00

$10.05

4

CUSHION,BATTERY

33652-10L10

$1.82

5

CUSHION,BATTERY

33652-10L20

$2.47

6

CUSHION This part replaces 33652-27G00.

44543-10G00

$5.23

7

CUSHION,HIGH TENSION CORD (58 | 58X10)

33442-41F00

Unavailable

8

CUSHION,REAR FENDER FRONT

63113-15H01

$17.47

9

WIRE,STARTER MOTOR LEAD

33810-10L00

$59.37

10

WIRE,BATTERY PLUS LEAD

33820-10L00

$45.73

11

WIRE,BATTERY MINUS LEAD

33860-10L00

$44.40
