2024 Suzuki GSX1300RRQ2M4 Lock SET Diagram

← All diagrams

Find the part on the Lock SET diagram for your 2024 Suzuki GSX1300RRQ2M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

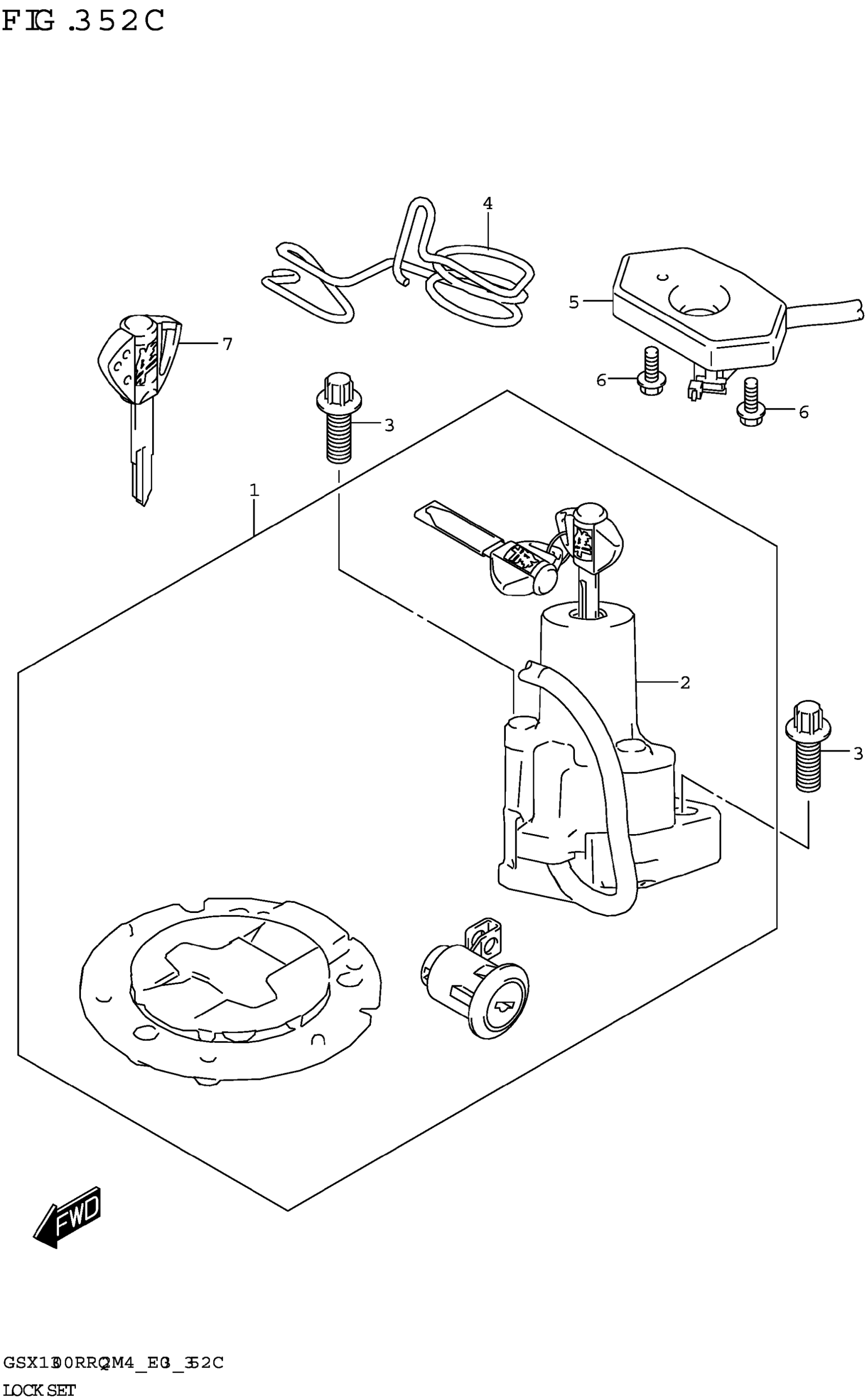

2024 Suzuki GSX1300RRQ2M4 Lock SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LOCK SET

37104-10821

1
Out of stock

2

.LOCK ASSY,STEERING

37100-10L21

1
Out of stock

3

BOLT (8X20)

09139-08016

2
Out of stock

4

GUIDE,WIRING HARNESS

36619-10L00

1
Out of stock

5

COVER,STEERING LOCK

37180-15HA0

1
Out of stock

6

BOLT

01547-0530A

2
Out of stock

7

KEY,BLANK

37146-10L00

1
Out of stock
