2011 Suzuki GSX1300RL1 Side Cowling Diagram

← All diagrams

Find the part on the Side Cowling diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

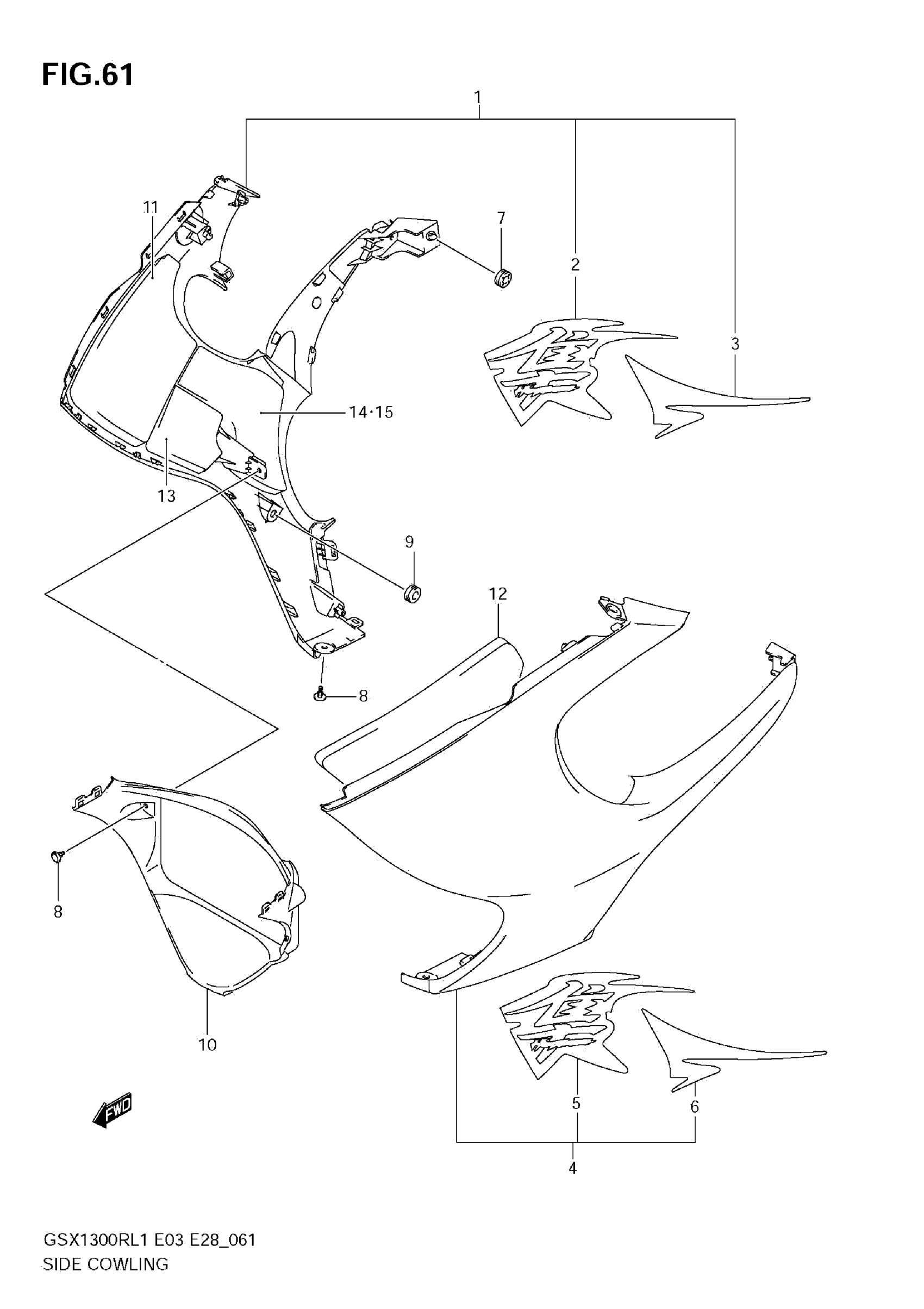

2011 Suzuki GSX1300RL1 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, SIDE RH (BLACK)

94450-15H21-YAY

1
Out of stock

1

COWLING, SIDE RH (BLUE)

94450-15H21-YKZ

—
Out of stock

1

COWLING, SIDE RH (WHITE)

94450-15H21-YPA

1
Out of stock

2

TAPE, UPPER RH | FOR YAY

68685-15H00-HWW

1
Out of stock

2

TAPE, UPPER RH | FOR YKZ

68685-15H00-JFG

1
Out of stock

2

TAPE, UPPER RH | FOR YPA

68685-15H00-HWZ

1
Out of stock

3

TAPE, LOWER RH | FOR YAY

68685-15H10-HUZ

1
Out of stock

3

TAPE, LOWER RH | FOR YKZ

68685-15H10-JFF

1
Out of stock

3

TAPE, LOWER RH | FOR YPA

68685-15H10-YWB

1
Out of stock

4

COWLING, SIDE LH (BLACK)

94460-15H21-YAY

1
Out of stock

4

COWLING, SIDE LH (BLUE)

94460-15H21-YKZ

—
Out of stock

4

COWLING, SIDE LH (WHITE)

94460-15H21-YPA

1
Out of stock

5

TAPE, UPPER LH | FOR YAY

68695-15H00-HWW

1
Out of stock

5

TAPE, UPPER LH | FOR YKZ

68695-15H00-JFG

1
Out of stock

5

TAPE, UPPER LH | FOR YPA

68695-15H00-HWZ

1
Out of stock

6

TAPE, LOWER LH | FOR YAY

68695-15H10-HUZ

1
Out of stock

6

TAPE, LOWER LH | FOR YKZ

68695-15H10-JFF

1
Out of stock

6

TAPE, LOWER LH | FOR YPA

68695-15H10-YWB

1
Out of stock

7

CUSHION

09320-08028

2
Out of stock

8

CLIP

94479-35F00

2
Out of stock

9

CUSHION, LOWER

09321-10018

2
Out of stock

10

COWLING, UNDER CENTER

94498-15H00

1
Out of stock

11

CUSHION, SIDE UPPER RH This part replaces 94476-15H00.

94476-15H01

1
Out of stock

12

CUSHION, SIDE UPPER LH This part replaces 94486-15H00.

94486-15H01

1
Out of stock

13

CUSHION, SIDE LOWER

94476-15H10

2
Out of stock

14

SHIELD, SIDE RH

94474-15H00

1
Out of stock

15

SHIELD, SIDE LH

94484-15H00

1
Out of stock
