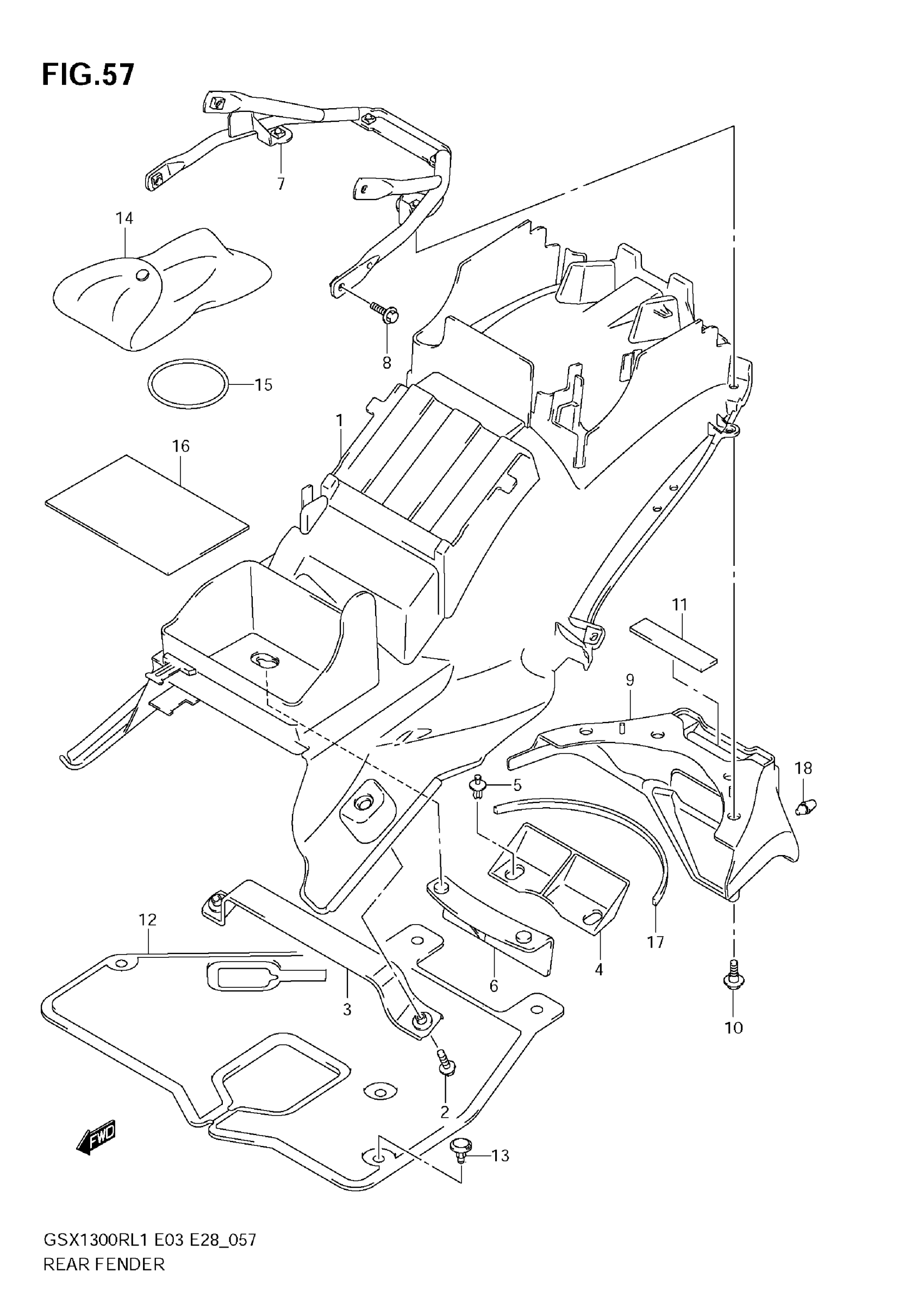

Suzuki GSX1300RL1 (2011) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (BLACK)

63111-15H00-291

$219.62

2

BOLT

01550-0616A

$1.97

3

BRACKET, FRONT

63130-15H00

Unavailable

4

MUDGUARD, REAR

63411-24F00

$15.27

5

CLIP

09409-07333

$2.29

6

MUDGUARD, REAR UPPER

63421-24F00

$17.55

7

BRACKET, REAR FENDER

63120-15H00

$260.78

8

BOLT

01550-0616A

$1.97

9

FENDER, REAR (BLACK)

63112-15H00-291

$84.40

10

BOLT (6X16)

09111-06099

$3.19

11

CUSHION

33652-49000

$4.05

12

SHIELD, INNER

47851-15H00

$100.95

13

CLIP

94479-35F00

$5.14

14

TOOL ASSY This part replaces 09800-21039.

09800-21089

$88.40

15

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.50

16

CUSHION,REAR FENDER FRONT This part replaces 63113-15H00.

63113-15H01

$17.47

17

CUSHION, COVER

63192-16GA0

$5.43

18

CUSHION This part replaces 09321-06028.

09321-06038

$2.05
