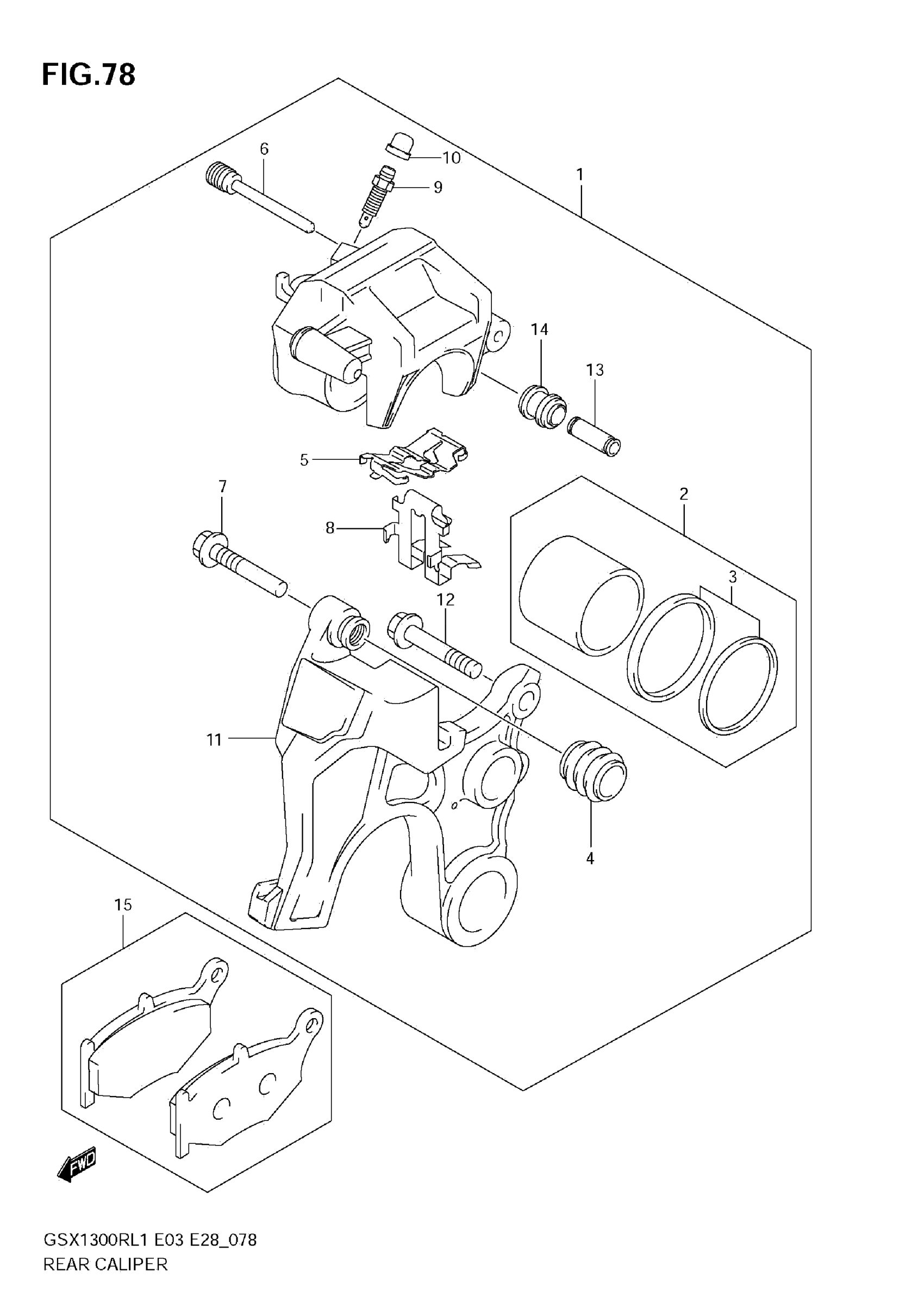

Find the part on the Rear Caliper diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1300RL1 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR

69100-15H00-999

1

$633.80

In stock

2

PISTON SET

69100-44890

1

$74.95

In stock

3

SEAL SET, PISTON

69102-05880

1

$19.41

In stock

4

BOOT, AXLE

59112-44B00

1

$8.88

In stock

5

SPRING, PAD

69115-44G00

1

$19.85

In stock

6

PIN, PAD

59141-40F00

1

$38.40

In stock

7

PIN, BOLT

69105-44G00

1

$14.44

In stock

8

RETAINER

69116-44G00

1

$10.90

In stock

9

BLEEDER

59121-18410

1

$8.70

In stock

10

CAP, BLEEDER PLUG

55156-66310

1

$5.15

In stock

11

BRACKET

69150-15H00

1

$186.88

In stock

12

BOLT

69182-44G00

1

$12.40

In stock

13

SLEEVE

69185-44G00

1

$24.37

In stock

14

BOOT, SLEEVE

69186-44G00

1

$13.55

In stock

15

PAD SET

69100-15820

1

$65.75

In stock
