Description

Price

1

WHEEL,FR(17M/CX | FOR YAY,YKZ This part replaces 54111-15H00-019.

54111-15H01-019

$828.58

1

WHEEL, FR, 17M/CXMT3.50 (SILVER) | FOR YPA

54111-15H00-YMY

Unavailable

2

SPACER, HUB BEARING

54731-33E20

$55.32

3

BEARING (25X52X15)

09262-25061

$29.88

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5

AXLE, FRONT

54711-15H00

$183.30

6

BOLT, FRONT AXLE

54712-41G10

$14.82

7

SPACER, FRONT AXLE, RH This part replaces 54751-41G00.

54751-41G10

$17.99

8

DISC, FRONT BRAKE This part replaces 59210-15H00.

59210-15H10

$312.58

9

BOLT (8X21)

09106-08160

$3.22

10

TIRE, FRONT This part replaces 55110-24F50.

55110-24F70

$415.68

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

12

BALANCER, WHEEL, NO.1

55411-22H00

$9.70

12

BALANCER, WHEEL, NO.2

55412-22H00

$11.37

12

BALANCER, WHEEL, NO.3

55413-22H00

$12.93

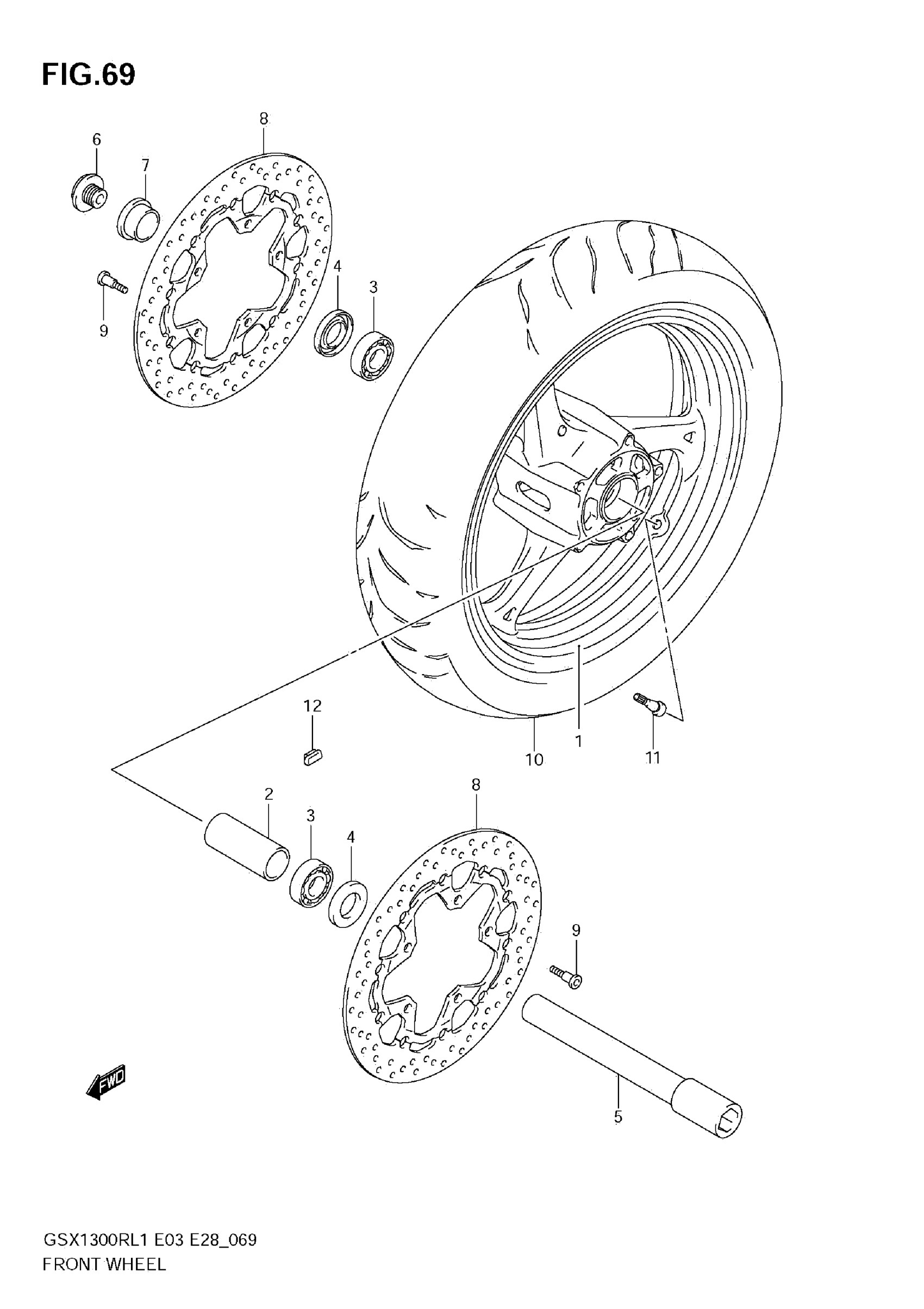

Suzuki GSX1300RL1 (2011) FRONT WHEEL Diagram
