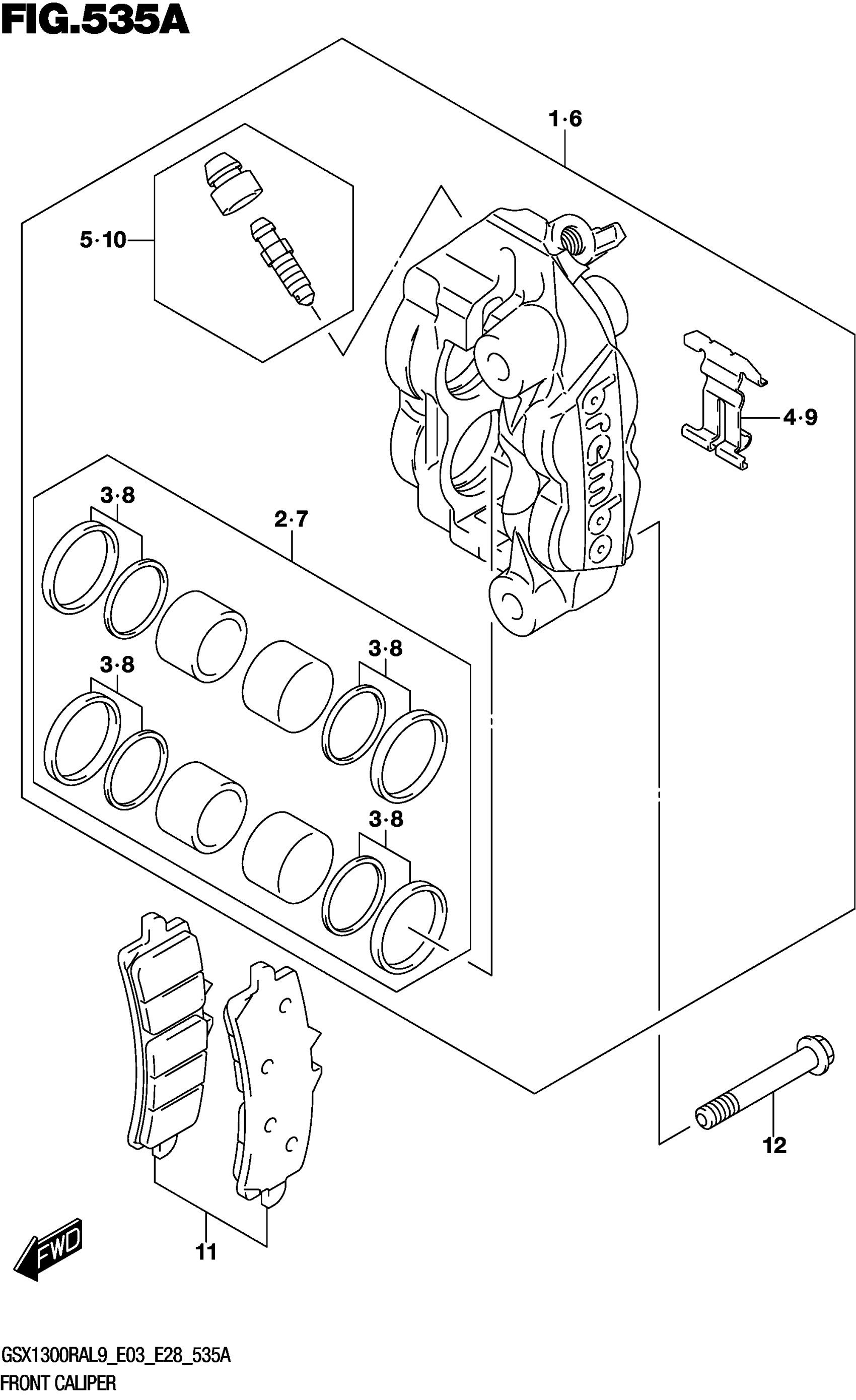

Find the part on the Front Caliper diagram for your 2019 Suzuki GSX1300RAL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX1300RAL9 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

CALIPER ASSY, FRONT RH

59100-14J30-999

1
Out of stock

1-2

CALIPER ASSY, FRONT RH | OPT

59110-14JB0

1
Out of stock

1-2

CALIPER ASSY, FRONT RH | BLUE

59110-14JB0

1
Out of stock

1-3

CALIPER ASSY, FRONT RH | OPT

59110-14JC0

1
Out of stock

1-3

CALIPER ASSY, FRONT RH | YELLOW

59110-14JC0

1
Out of stock

1-4

CALIPER ASSY, FRONT RH | OPT

59110-14JD0

1
Out of stock

1-4

CALIPER ASSY, FRONT RH | RED

59110-14JD0

1
Out of stock

2

.PISTON SET

59100-14810

1
Out of stock

3

..SEAL SET,PISTON

59100-14820

1
Out of stock

4

.SPRING

59151-14J00

1
Out of stock

5

.BLEEDER SET

59100-14840

1
Out of stock

6-1

CALIPER ASSY, FRONT LH

59300-14J30-999

1
Out of stock

6-2

CALIPER ASSY, FRONT LH | OPT

59310-14JB0

1
Out of stock

6-2

CALIPER ASSY, FRONT LH | BLUE

59310-14JB0

1
Out of stock

6-3

CALIPER ASSY, FRONT LH | OPT

59310-14JC0

1
Out of stock

6-3

CALIPER ASSY, FRONT LH | YELLOW

59310-14JC0

1
Out of stock

6-4

CALIPER ASSY, FRONT LH | OPT

59310-14JD0

1
Out of stock

6-4

CALIPER ASSY, FRONT LH | RED

59310-14JD0

1
Out of stock

7

.PISTON SET

59100-14810

1
Out of stock

8

..SEAL SET,PISTON

59100-14820

1
Out of stock

9

.SPRING

59151-14J00

1
Out of stock

10

.BLEEDER SET

59100-14840

1
Out of stock

11

PAD SET (T:4.0)

59100-14860

2
Out of stock

12

BOLT (10X70)

09103-10450

4
Out of stock
