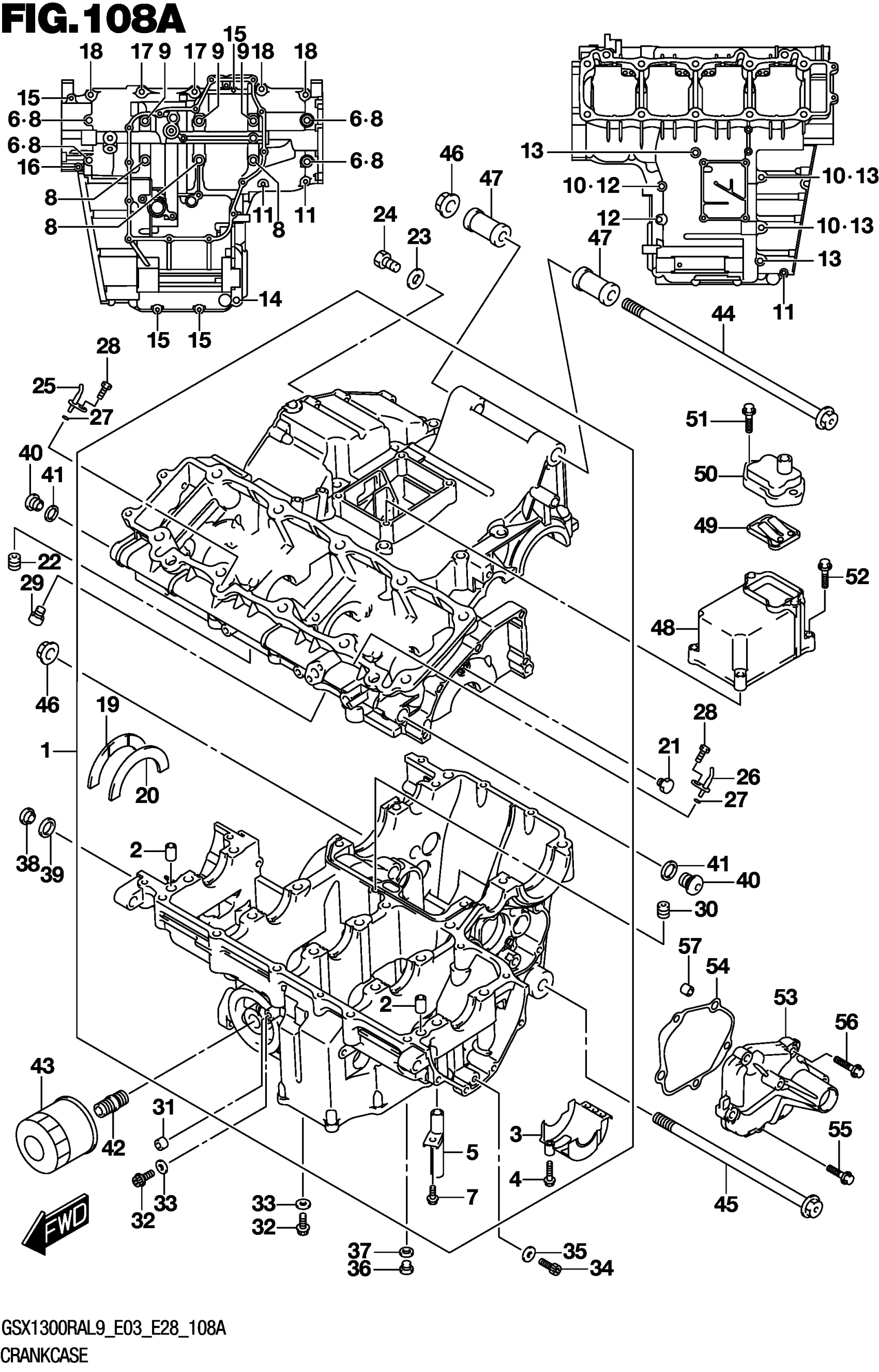

Suzuki GSX1300RAL9 (2019) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-24820

$3,393.47

2

PIN,CRANKCASE

11319-33E50

$5.01

3

.SEPARATOR,OIL

11323-24F10

Unavailable

4

BOLT

01547-0625A

$2.01

5

.UNION,BREATHER

11328-24F00

$21.07

6

.GASKET (10.2X20X2.3)

09168-10031

$2.01

7

BOLT

01547-0612A

$2.01

8

.BOLT (9X95)

09103-09008

$6.95

9

.BOLT (9X115)

09103-09010

$10.77

10

GASKET (8.2X14X1)

09168-08016

$1.64

11

BOLT

01547-0650A

$2.51

12

.BOLT

01550-0865A

$3.21

13

.BOLT

01550-0880A

$4.62

14

.BOLT

01550-1060A

$3.68

15

BOLT

01547-0640A

$2.31

16

BOLT

01547-0660A

$2.80

17

.BOLT (8X60)

09103-08155

Unavailable

18

.BOLT (8X50)

09103-08355

$4.62

19

.BEARING,CRANK THRUST (GREEN) | RH

12228-24F00-0D0

$10.18

20-1

.BEARING,CRANK THRUST,L (RED) | LH

12228-24F00-0A0

$14.45

20-2

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$10.18

20-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$14.35

20-4

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.18

20-5

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$14.98

20-5

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$14.98

20-6

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$14.98

21

JET, MAGNETO COOLING

11393-33E01

$15.63

22

JET,AIR (#100)

09493-20012

$21.17

23

GASKET (5.8X13X1.2)

09168-06023

$2.01

24

BOLT

07120-0612A

$2.50

25

JET,PISTON COOLING

11390-34E00

$24.28

26

JET,PISTON COOLING

11390-34E10

$24.28

27

O-RING (D:1.2,ID:4)

09280-04004

$1.76

28

BOLT (6X12)

09106-06075

$2.50

29

BOLT (6X10)

09106-06076

$3.01

30

JET, T/M OIL 180

09493-36006

$18.33

31

JET,OIL PAN GALLERY

11532-46E00

$13.02

32

BOLT

07120-0612A

$2.50

33

GASKET (5.8X13X1.2)

09168-06023

$2.01

34

BOLT

07130-0816B

$4.62

35

GASKET (8.2X14X1)

09168-08016

$1.64

36

PLUG (10X10)

09248-10010

$3.82

37

GASKET (10X14X3.6)

09168-10002

$1.96

38

PLUG (16X8)

09248-16012

$4.19

39

GASKET (16X22X2)

09168-16002

$1.89

40

PLUG (14X12)

09248-14011

$2.80

41

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

42

UNION,OIL STAND

16591-06B01

$6.45

43

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$11.99

44

BOLT (12X320)

09103-12120

$36.20

45

BOLT (12X243)

09103-12119

$33.80

46

NUT

09159-12056

$6.65

47

SPACER,ENG MTG (L47)

11611-24F00

$30.20

48

COVER,BREATHER

11331-15H00

$99.63

49

VALVE ASSY,BREATHER REED

13150-01H01

$78.90

50

COVER,BREATHER REED VALVE

11372-21H00

$21.70

51

BOLT

01547-0620A

$2.01

52

BOLT

01547-0630A

$2.31

53

COVER, GEAR SHIFT

11383-15H00

$126.08

54

.GASKET,GEAR SHIFT COVER

11485-24F00

$5.97

55

BOLT

01547-0625A

$2.01

56

BOLT

01547-0635A

$2.31

57

PIN (8.5X18X2.3)

04211-09149

$1.64
