2017 Suzuki GSX1300RAL7 Under Cowling Diagram

← All diagrams

Find the part on the Under Cowling diagram for your 2017 Suzuki GSX1300RAL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

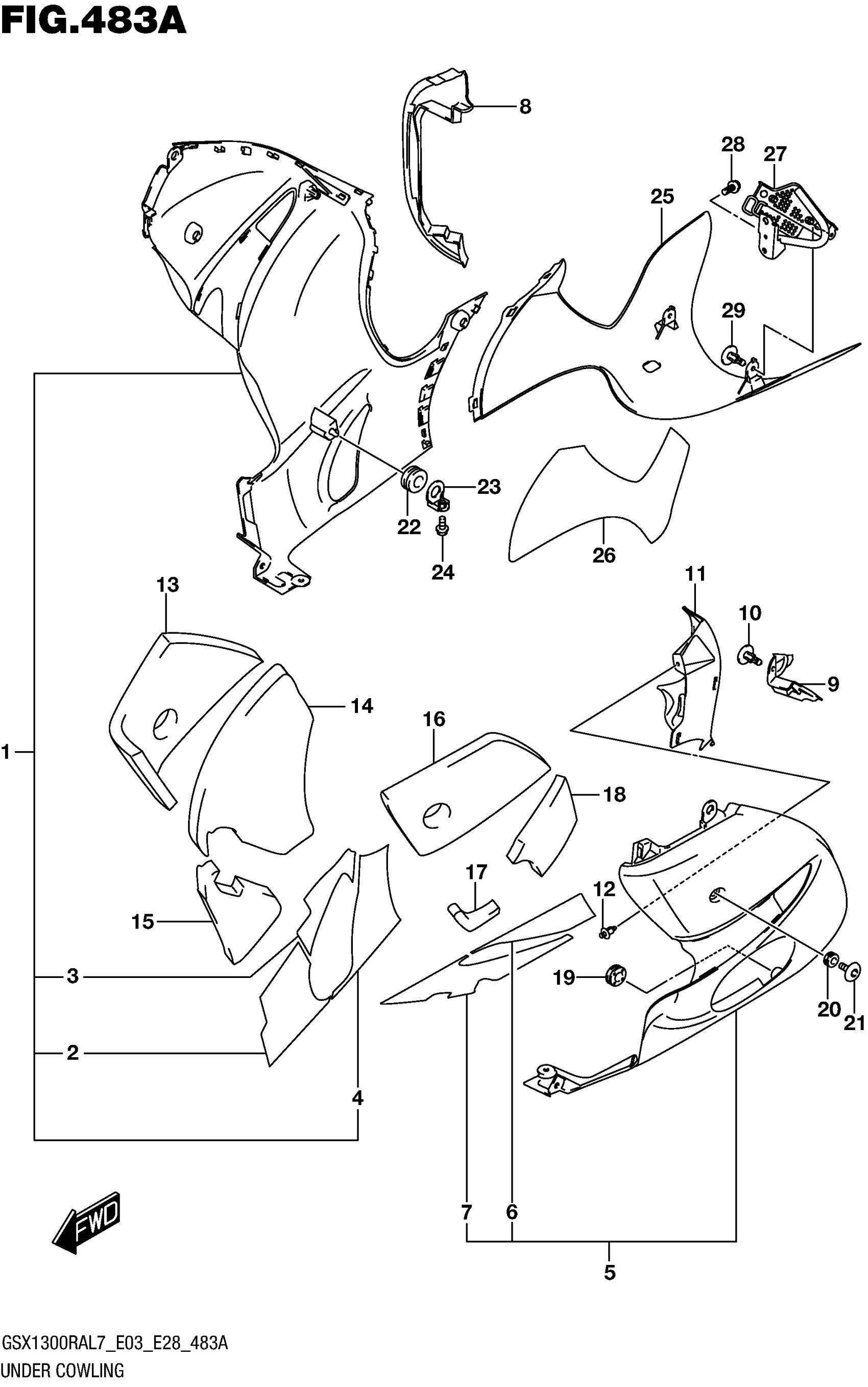

2017 Suzuki GSX1300RAL7 Under Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, UNDER RH (BLACK)

94470-15H60-YVB

1

$329.73

In stock

2

.SHIELD, HEAT RH NO.1

94472-15H00

1

$25.95

In stock

3

.SHIELD, HEAT RH NO.3

94472-15H20

1

$17.20

In stock

4

.SHIELD, HEAT RH NO.2

94472-15H10

1

$25.95

In stock

5

COWLING, UNDER LH (BLACK)

94480-15H60-YVB

1

$329.73

In stock

6

.SHIELD, HEAT LH NO.1

94482-15H00

1

$27.73

In stock

7

.SHIELD, HEAT LH NO.2

94482-15H10

1

$18.42

In stock

8

PROTECTOR, RH

94475-15H00

1

$37.62

In stock

9

PROTECTOR, LH

94485-15H00

1

$20.65

In stock

10

CLIP, LH

94479-35F00

1
Out of stock

11

COVER, UNDER LH

94489-15H00

1

$35.65

In stock

12

CLIP (BLACK) | LH

09409-06314-5PK

1

$2.92

In stock

13

1

$73.63

In stock

14

1

$85.15

In stock

15

1

$27.58

In stock

16

1

$56.87

In stock

17

1

$39.57

In stock

18

1

$28.18

In stock

19

CUSHION, LH

94479-15H00

1
Out of stock

20

CUSHION

09320-09016

3
Out of stock

21

BOLT (6X20)

09139-06190

4
Out of stock

22

CUSHION

09320-08028

2
Out of stock

23

PLATE, UNDER COWL

94560-15H00

2

$14.18

In stock

24

BOLT

01550-0612A

2
Out of stock

25

COWLING, UNDER REAR (BLACK)

94661-15H00-YVB

1

$397.88

In stock

26

SHIELD, HEAT

94667-15H00

1

$31.98

In stock

27

BRACKET, REAR COWLING

94540-15H01

1

$93.08

In stock

28

BOLT (8X16)

01550-0816A

2
Out of stock

29

CLIP

94479-35F00

2
Out of stock
