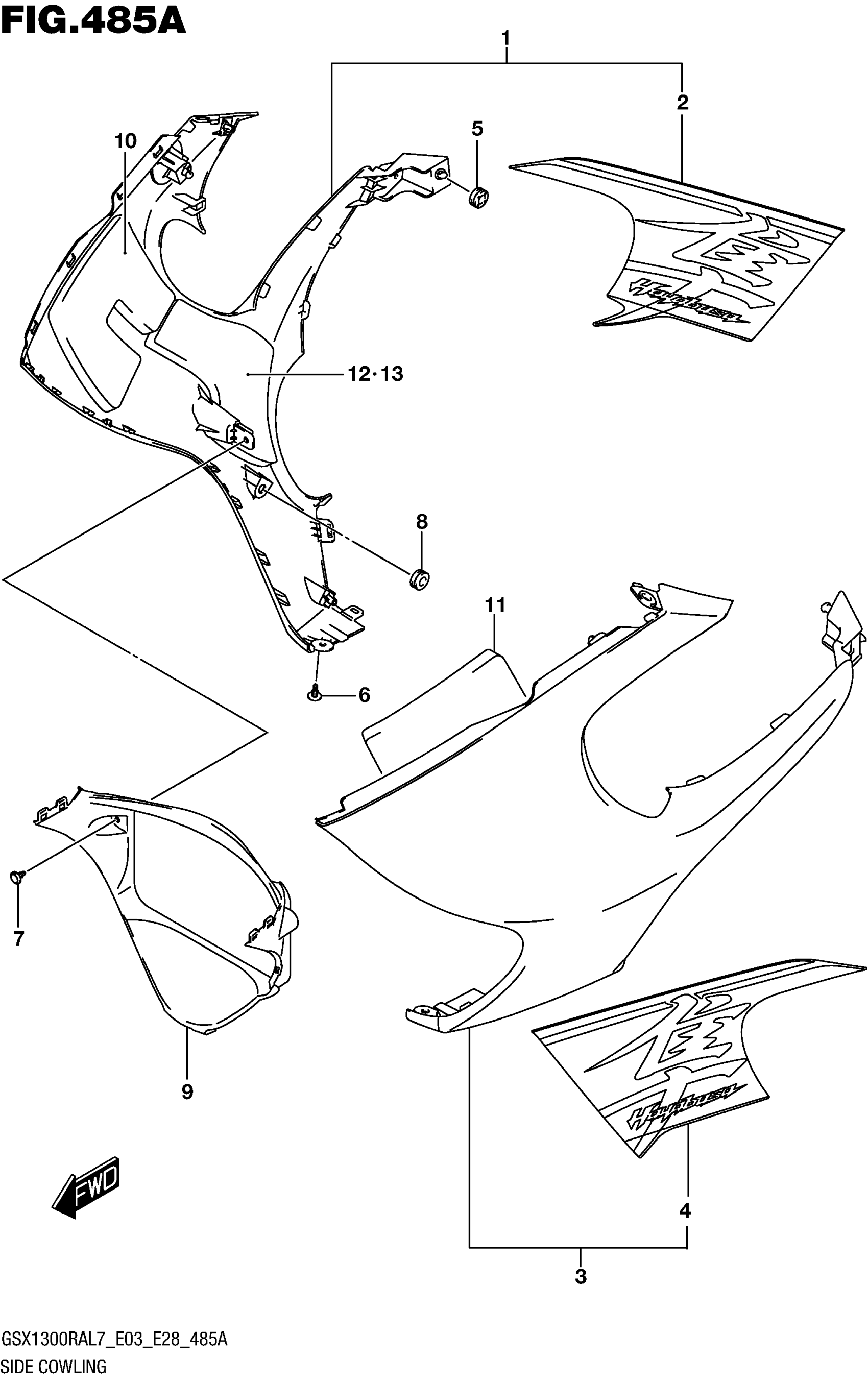

Find the part on the Side Cowling diagram for your 2017 Suzuki GSX1300RAL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX1300RAL7 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

COWLING, SIDE RH (BLACK) | FOR YVB

94450-15H80-YVB

1
Out of stock

1-2

COWLING, SIDE RH (WHITE) | FOR AGT

94450-15H80-YWW

1
Out of stock

1-3

COWLING, SIDE RH (BLUE) | FOR BBD

94450-15H80-YKY

1
Out of stock

2-1

.TAPE, SIDE COWLING RH | FOR YVB

68685-15H60-BGB

1
Out of stock

2-1

(BLACK/GRAY

68685-15H60-BGB

1
Out of stock

2-2

.TAPE, SIDE COWLING RH | FOR YWW

68685-15H60-BGC

1
Out of stock

2-2

(WHITE/BLACK

68685-15H60-BGC

1
Out of stock

2-3

.TAPE, SIDE COWLING RH | FOR YKY

68685-15H60-BGD

1
Out of stock

2-3

(BLUE/WHITE

68685-15H60-BGD

1
Out of stock

3-1

COWLING, SIDE LH (BLACK) | FOR YVB

94460-15H80-YVB

1
Out of stock

3-2

COWLING, SIDE LH (WHITE) | FOR AGT

94460-15H80-YWW

1
Out of stock

3-3

COWLING, SIDE LH (BLUE) | FOR BBD

94460-15H80-YKY

1
Out of stock

4-1

.TAPE, SIDE COWLING LH | FOR YVB

68695-15H60-BGB

1
Out of stock

4-1

(BLACK/GRAY

68695-15H60-BGB

1
Out of stock

4-2

.TAPE, SIDE COWLING LH | FOR YWW

68695-15H60-BGC

1
Out of stock

4-2

(WHITE/BLACK

68695-15H60-BGC

1
Out of stock

4-3

.TAPE, SIDE COWLING LH | FOR YKY

68695-15H60-BGD

1
Out of stock

4-3

(BLUE/WHITE

68695-15H60-BGD

1
Out of stock

5

CUSHION

09320-08028

2
Out of stock

6

CLIP

94479-35F00

2
Out of stock

7

CLIP

94479-35F00

2
Out of stock

8

CUSHION

09321-10018

2
Out of stock

9

COWLING, UNDER CENTER

94498-15H00

1
Out of stock

10

CUSHION, SIDE UPPER RH

94476-15H01

1
Out of stock

11

CUSHION, SIDE UPPER LH

94486-15H01

1
Out of stock

12

SHIELD, SIDE RH

94474-15H00

1
Out of stock

13

SHIELD, SIDE LH

94484-15H00

1
Out of stock

14

COLOR :

SPECIAL NOTE

—
Out of stock

14

AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

—
Out of stock

14

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

—
Out of stock
