2016 Suzuki GSX1300RAL6 Under Cowling Diagram

← All diagrams

Find the part on the Under Cowling diagram for your 2016 Suzuki GSX1300RAL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

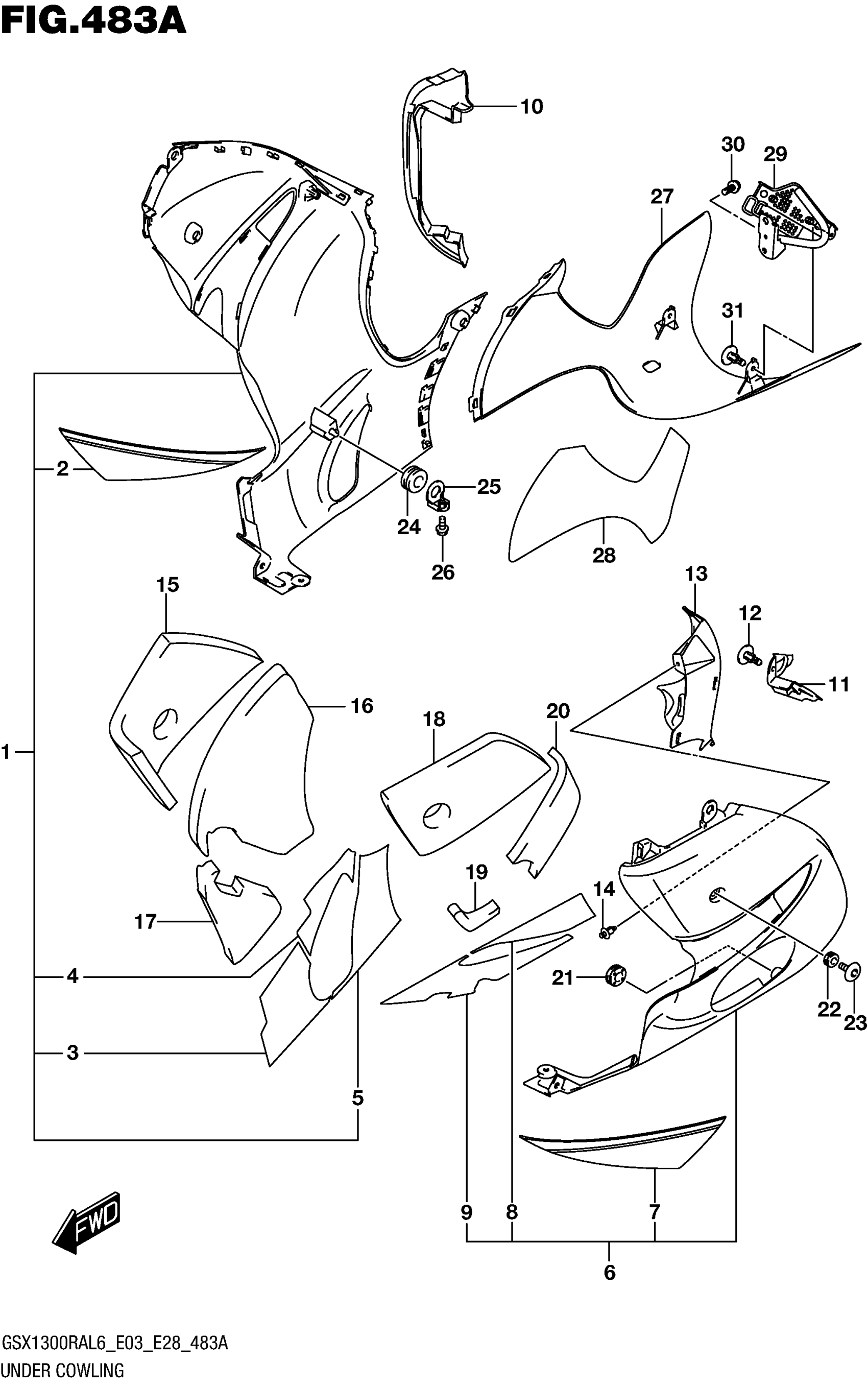

2016 Suzuki GSX1300RAL6 Under Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

1

$377.85

In stock

1-2

COWLING, UNDER RH (SILVER) | FOR ARA

94470-15H50-5KX

1
Out of stock

1-3

1

$377.85

In stock

2-1

.TAPE, UNDER COWLING RH | FOR AAX

68185-15H50-AWS

1
Out of stock

2-2

.TAPE, UNDER COWLING RH | FOR 5KX

68185-15H50-A96

1
Out of stock

2-3

1

$45.25

In stock

3

.SHIELD, HEAT RH NO.1

94472-15H00

1

$25.95

In stock

4

.SHIELD, HEAT RH NO.3

94472-15H20

1

$17.20

In stock

5

.SHIELD, HEAT RH NO.2

94472-15H10

1

$25.95

In stock

6-1

1

$377.85

In stock

6-2

COWLING, UNDER LH (SILVER) | FOR ARA

94480-15H50-5KX

1
Out of stock

6-3

1

$377.85

In stock

7-1

.TAPE, UNDER COWLING LH | FOR AAX

68195-15H50-AWS

1
Out of stock

7-2

.TAPE, UNDER COWLING LH | FOR 5KX

68195-15H50-A96

1
Out of stock

7-3

1

$45.25

In stock

8

.SHIELD, HEAT LH NO.1

94482-15H00

1

$27.73

In stock

9

.SHIELD, HEAT LH NO.2

94482-15H10

1

$18.42

In stock

10

PROTECTOR, RH

94475-15H00

1

$37.62

In stock

11

PROTECTOR, LH

94485-15H00

1

$20.65

In stock

12

CLIP, LH

94479-35F00

1
Out of stock

13

COVER, UNDER LH

94489-15H00

1

$35.65

In stock

14

CLIP (BLACK) | LH

09409-06314-5PK

1

$2.92

In stock

15

1

$73.63

In stock

16

1

$85.15

In stock

17

1

$27.58

In stock

18

1

$56.87

In stock

19

1

$39.57

In stock

21

CUSHION, LH

94479-15H00

1
Out of stock

22

CUSHION

09320-09016

3
Out of stock

23

BOLT (6X20)

09139-06190

4
Out of stock

24

CUSHION

09320-08028

2
Out of stock

25

PLATE, UNDER COWL

94560-15H00

2

$14.18

In stock

26

BOLT

01550-0612A

2
Out of stock

27-1

1

$380.47

In stock

27-2

1

$409.05

In stock

28

SHIELD, HEAT

94667-15H00

1

$31.98

In stock

30

BOLT (8X16)

01550-0816A

2
Out of stock

31

CLIP

94479-35F00

2
Out of stock

32

COLOR :

SPECIAL NOTE

—
Out of stock

32

AA3=YLF(GRAY),YVB(BLACK)

SPECIAL NOTE

—
Out of stock

32

ARA=RB5(WHITE),YMD(SILVER)

SPECIAL NOTE

—
Out of stock

32

A9Z=YMD(SILVER),YYG(RED)

SPECIAL NOTE

—
Out of stock
