2016 Suzuki GSX1300RAL6 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2016 Suzuki GSX1300RAL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

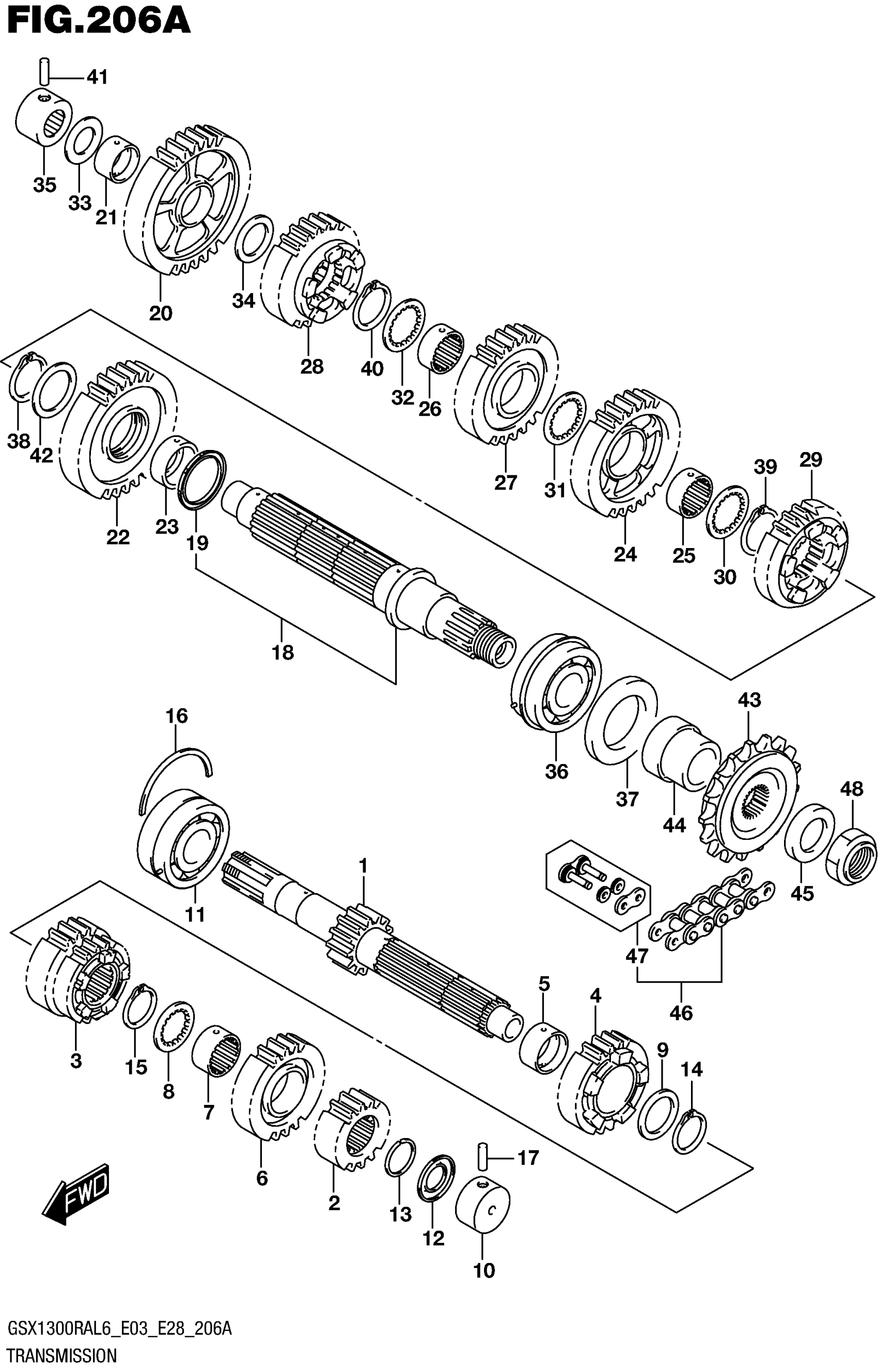

2016 Suzuki GSX1300RAL6 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:13)

24120-24F00

1
Out of stock

2

GEAR,2ND DRIVE (NT:16)

24221-15H00

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE

24231-15H00

1
Out of stock

3

(NT:19/21)

24231-15H00

1
Out of stock

4

GEAR,5TH DRIVE (NT:22)

24251-15H01

1
Out of stock

5

BUSH, 5TH DRIVE GEAR

24252-24F10

1
Out of stock

6

GEAR, 6TH DRIVE (NT:23)

24261-15H00

1
Out of stock

7

BUSH, 6TH DRIVE GEAR

24262-24F10

1
Out of stock

8

LOCK WASHER

09167-27003

1
Out of stock

9

SHIM (27X36X2.5)

09181-27014

1
Out of stock

10

BEARING (20X34X17.5) | LH

09263-20085

1
Out of stock

11

BEARING (25X62X25.4) | RH

09267-25012

1
Out of stock

12

OIL SEAL (20X31.2X2.7)

09285-20006

1
Out of stock

13

CIRCLIP

09380-27004

1
Out of stock

14

CIRCLIP

09380-27006

1
Out of stock

15

CIRCLIP

09380-27006

1
Out of stock

16

C RING | RH

09390-62012

1
Out of stock

17

PIN | LH

04221-07209

1
Out of stock

18

SHAFT, DRIVE

24130-15H00

1
Out of stock

19

.RING, DRIVE SHAFT FRICTION

24136-48G01

1
Out of stock

20

GEAR, 1ST DRIVEN (NT:34)

24311-15H00

1
Out of stock

21

BUSH, 1ST DRIVEN GEAR

24312-24F10

1
Out of stock

22

GEAR,2ND DRIVEN (NT:31)

24321-15H00

1
Out of stock

23

BUSH, 2ND DRIVEN GEAR

24322-48G00

1
Out of stock

24

GEAR,3RD DRIVEN (NT:29)

24331-15H00

1
Out of stock

25

BUSH, 3RD DRIVEN GEAR

24332-24F10

1
Out of stock

26

BUSH, 4TH DRIVEN GEAR

24332-24F10

1
Out of stock

27

GEAR,4TH DRIVEN (NT:27)

24341-15H00

1
Out of stock

28

GEAR, 5TH DRIVEN (NT:25)

24351-15H01

1
Out of stock

29

GEAR,6TH DRIVEN (NT:24)

24361-15H00

1
Out of stock

30

LOCK WASHER

09167-30008

1
Out of stock

31

LOCK WASHER

09167-30008

1
Out of stock

32

LOCK WASHER

09167-30008

1
Out of stock

33

SHIM (20X34X1)

09181-20251

1
Out of stock

34

SHIM (24X34X1)

09181-24005

1
Out of stock

35

BEARING (20X34X20) | RH

09263-20040

1
Out of stock

36

BEARING (30X62X23.8) | LH

09267-30011

1
Out of stock

37

OIL SEAL (42X62X7)

09283-42018

1
Out of stock

38

CIRCLIP

09380-30009

1
Out of stock

39

CIRCLIP

09380-30009

1
Out of stock

40

CIRCLIP

09380-30009

1
Out of stock

41

PIN

04221-07209

1
Out of stock

42

WASHER

08211-30405

1
Out of stock

43

SPROCKET, ENGINE (NT:18)

27510-15H00

1
Out of stock

44

SPACER,ENGINE SPROCKET NO.1

27531-15H00

1
Out of stock

45

SPACER,ENGINE SPROCKET NO.2 (

27532-15H00

1
Out of stock

46

CHAIN ASSY, DRIVE

27600-24F60-118

1
Out of stock

46

(RK GB50GSVZ4) | L:118->114

27600-24F60-118

1
Out of stock

47

.JOINT SET, DRIVEN

27620-24F60

1
Out of stock

48

NUT

09159-22008

1
Out of stock
