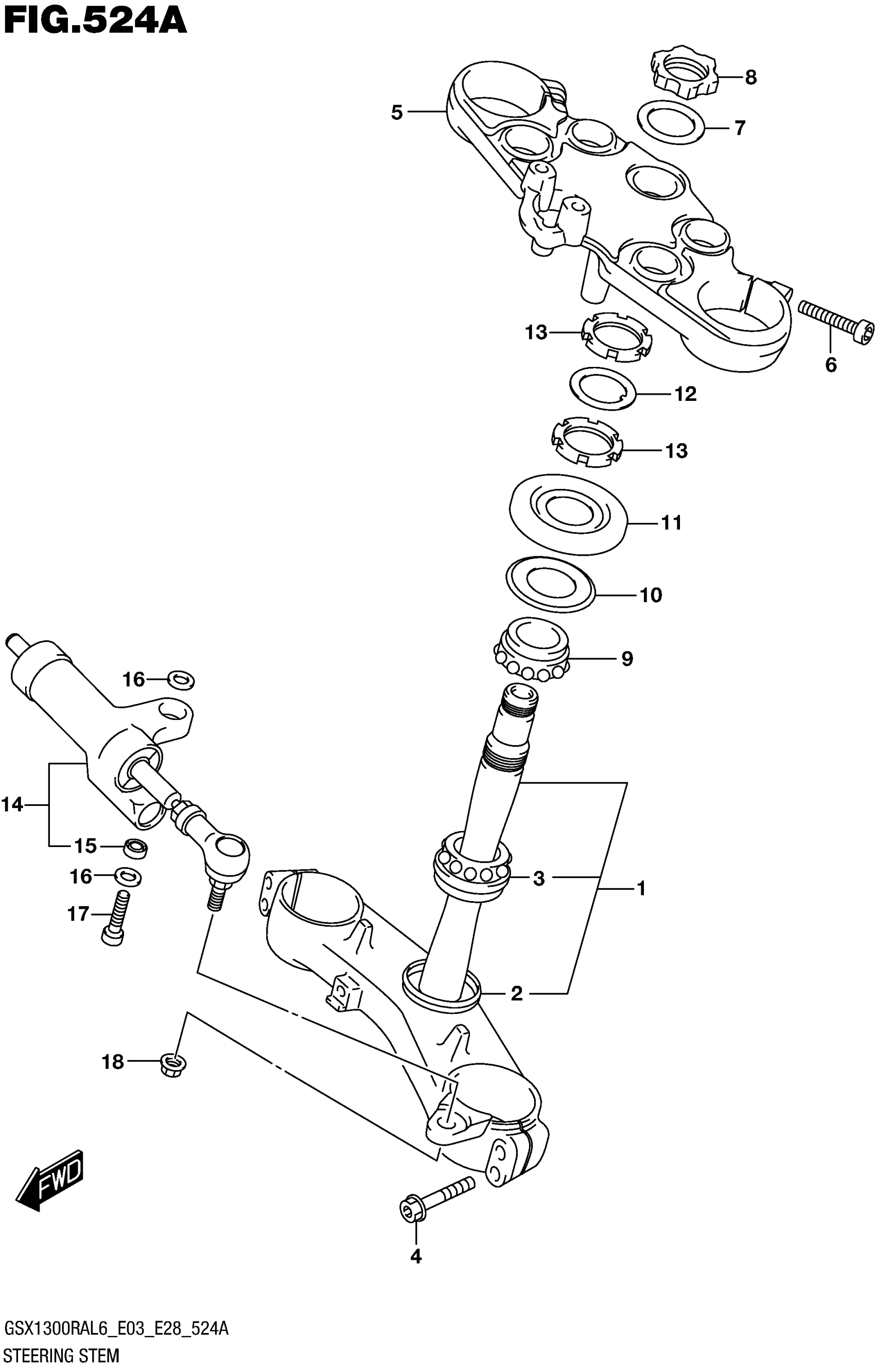

Suzuki GSX1300RAL6 (2016) STEERING STEM Diagram

#

Description
Price

1

BRACKET,FR FORK UNDER

51410-24F50

$1,146.85

2

.SEAL, LOWER

51644-12C00

$9.04

3

.BEARING (30X55X17)

09267-30010

$44.72

4

BOLT,AXLE STOPPER (8X40)

51166-01D80

Unavailable

5

BRACKET,FR FORK UPR

51311-24F50

$486.92

6

BOLT

51328-24F50

$10.35

7

WASHER

51356-24F50

$7.35

8

NUT

51353-24F00

$49.30

9

BEARING (30X55X17)

09267-30010

$44.72

10

SEAL, DUST UPPER (30.1X56X4)

51644-12C00

$9.04

11

COVER, STEERING UPPER

51643-41G00

$8.57

12

WASHER, STEM

51641-33E00

$5.93

13

NUT, STEM

51631-33E00

$22.62

14

DAMPER ASSY,STEERING

51750-15H00

$858.35

15

.BEARING (8X17.5X11)

09269-08003

$48.44

16

SEAL, DUST

64339-14101

$7.83

17

BOLT

07130-08307

$4.98

18

NUT

08319-3108A

$2.38
