2016 Suzuki GSX1300RAL6 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2016 Suzuki GSX1300RAL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

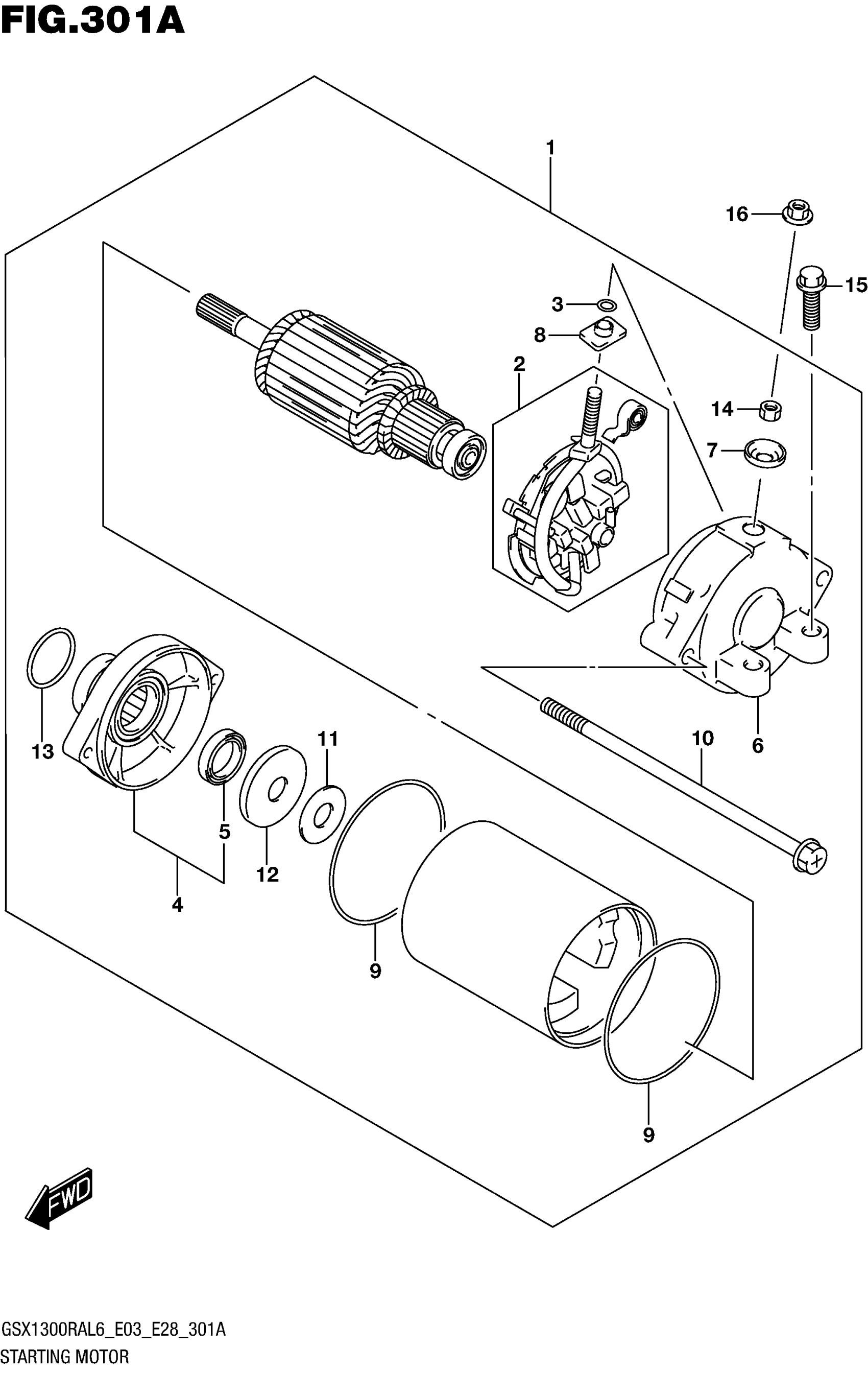

2016 Suzuki GSX1300RAL6 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STARTING This part replaces 31100-15H20.

31100-15H21

1
Out of stock

2

.HOLDER SET, BRUSH

31132-45C00

1
Out of stock

3

.O RING

31143-38300

1
Out of stock

4

.HOUSING ASSY, STARTER

31150-15H20

1
Out of stock

5

..OIL SEAL

31153-49210

1
Out of stock

6

.FRAME, STARTER END

31171-24F00

1
Out of stock

7

.BUSHING

31172-38300

1
Out of stock

8

.BUSHING

31173-88C00

1
Out of stock

9

.O RING

31264-44110

2
Out of stock

10

.BOLT

31281-24F00

2
Out of stock

11

.SHIM

31361-38300

2
Out of stock

12

.SHIM SET This part replaces 31361-43400.

31170-43400

1
Out of stock

13

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

14

.NUT

08310-00067

1
Out of stock

15

BOLT

01547-0625A

2
Out of stock

16

NUT

08361-3506A

1
Out of stock
