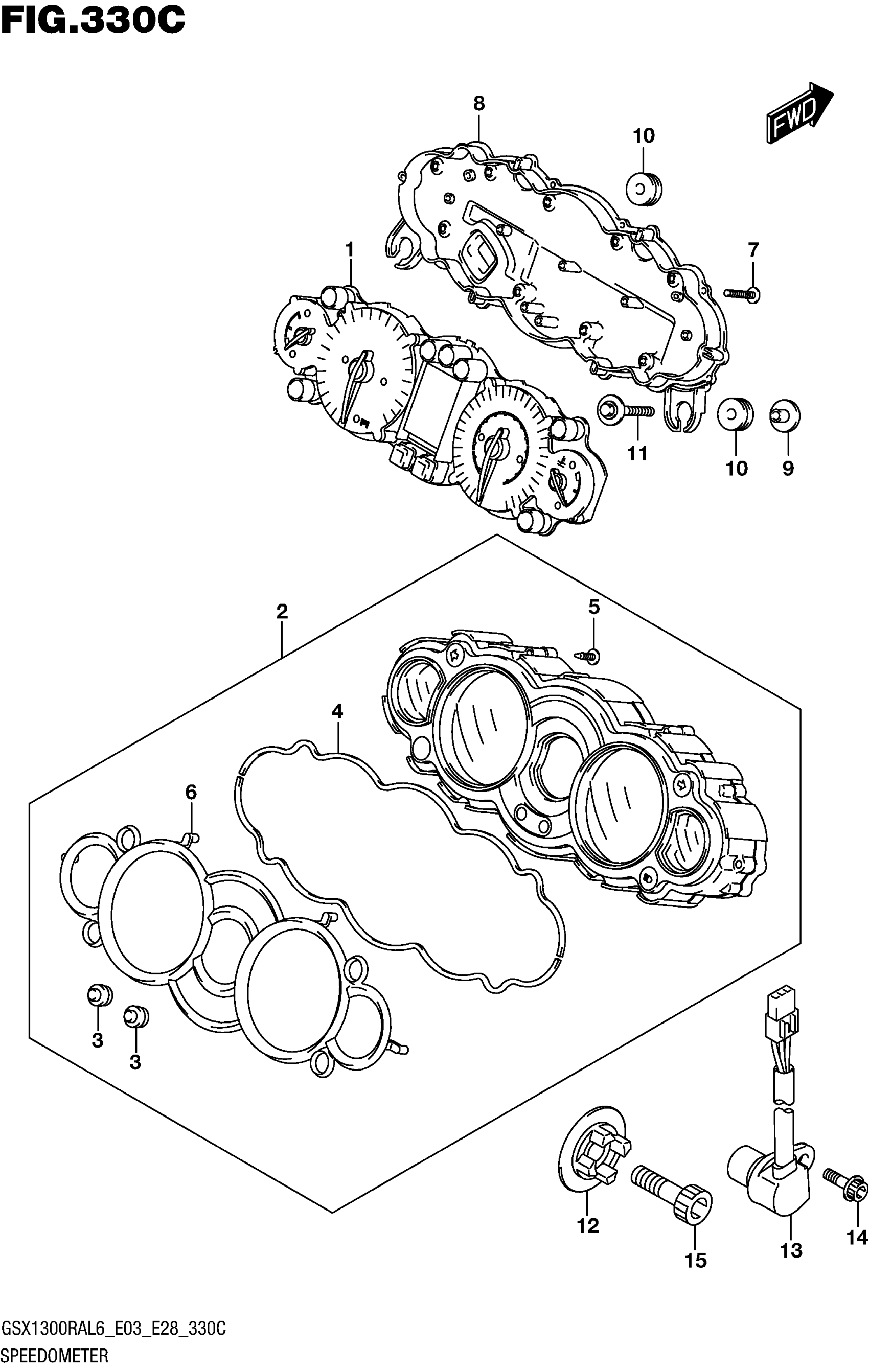

Find the part on the Speedometer diagram for your 2016 Suzuki GSX1300RAL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX1300RAL6 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COMBINATION METER

34120-15H30

1

$1,357.48

In stock

2

UPPER CASE ASSY

34150-15H00

1

$577.12

In stock

3

.SWITCH RUBBER

34124-39G00

2

$11.18

In stock

4

.PACKING

34153-15H00

2

$44.42

In stock

5

.SCREW (2.3X8)

34183-31F10

6
Out of stock

6

.RING

34193-15H00

1

$268.65

In stock

7

SCREW (3X16)

09132-03008

20

$1.86

In stock

8

LOWER CASE ASSY

34111-15H01

1

$276.27

In stock

9

WASHER, SPEEDOMETER

34187-24F00

2

$8.55

In stock

10

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

4
Out of stock

11

BOLT (6X25)

09116-06186

2
Out of stock

12

ROTOR, SPEED

34981-47H01

1

$21.96

In stock

13

SENSOR, SPEED

34990-35F00

1
Out of stock

14

BOLT

07120-0512B

1

$2.84

In stock

15

BOLT

07130-0825A

1
Out of stock
