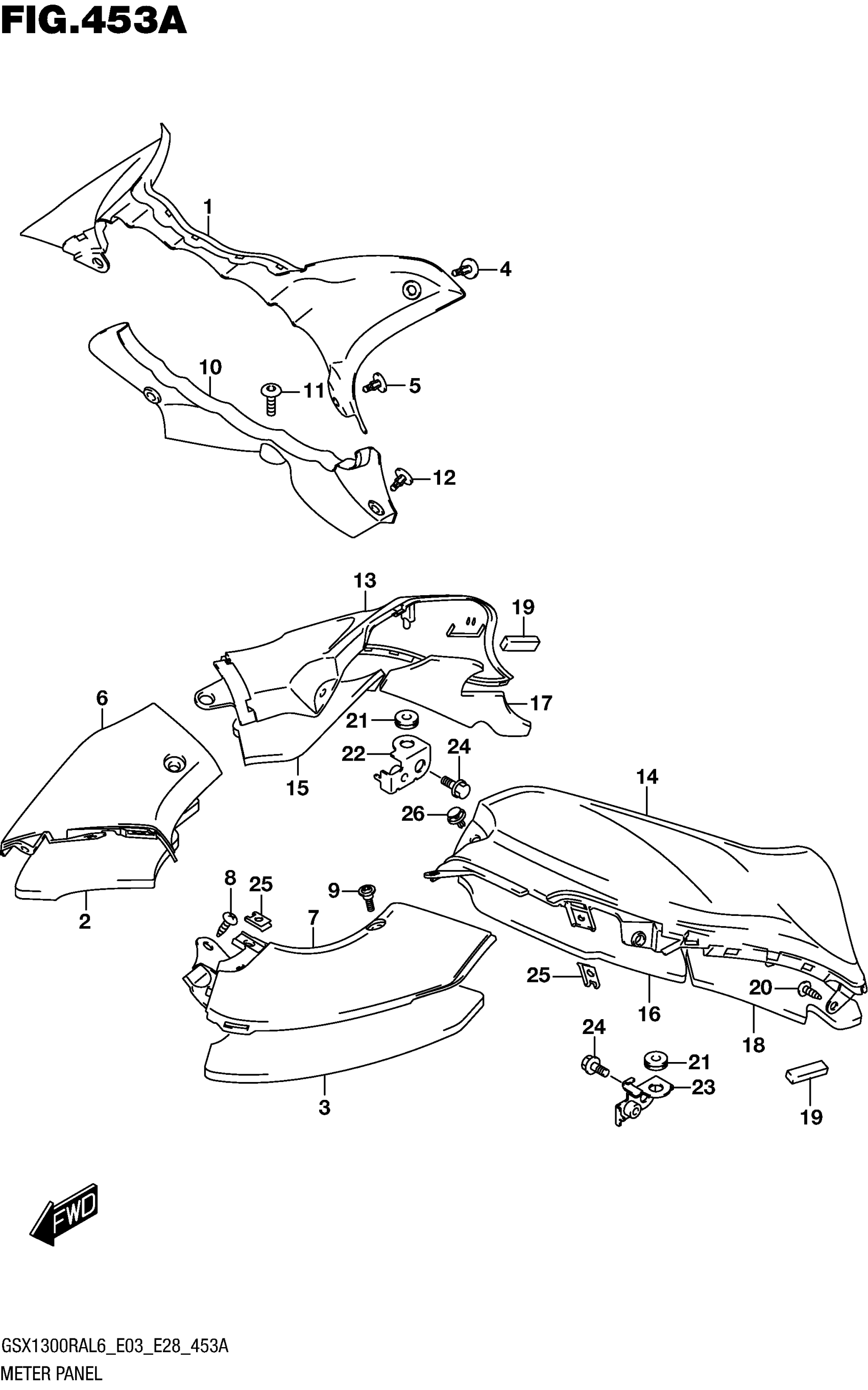

Suzuki GSX1300RAL6 (2016) METER PANEL Diagram

#

Description
Price

1

PANEL, METER UPPER

94424-15H00

$67.63

2

CUSHION, RH This part replaces 94643-15H00.

94643-15H01

$27.10

3

CUSHION, LH This part replaces 94644-15H00.

94644-15H01

$26.55

4

CLIP (BLACK)

09409-06314-5PK

$2.80

5

CLIP

09409-07333

$2.29

6

PANEL, METER RH

94641-15H00

$36.55

7

PANEL, METER LH

94651-15H00

$37.60

8

SCREW

03241-1516A

$1.97

9

SCREW (5X16)

09139-05504

$3.38

10

PANEL, METER REAR

94425-15H00

$69.90

11

SCREW (5X13)

09139-05503

$2.71

12

CLIP

09409-08327

$2.31

13

PANEL, SIDE RH

94621-15H00

$87.72

14

PANEL, SIDE LH

94631-15H00

$87.30

15

CUSHION, FRONT RH This part replaces 94622-15H00.

94622-15H01

$33.77

16

CUSHION, FRONT LH This part replaces 94632-15H00.

94632-15H01

$35.35

17

CUSHION, REAR RH This part replaces 94623-15H00.

94623-15H01

$27.45

18

CUSHION, REAR LH This part replaces 94633-15H00.

94633-15H01

$26.67

19

CUSHION

33652-02H00

$10.78

20

SCREW

03541-0516A

$1.37

21

CUSHION

47191-06J00

$5.48

22

BRACKET RH

94520-24F20

$28.80

23

BRACKET LH

94530-24F20

$36.98

24

BOLT

01550-0620A

$1.97

25

NUT COWL

94484-24F00

$3.63

26

CLIP

09409-07332

$2.50
