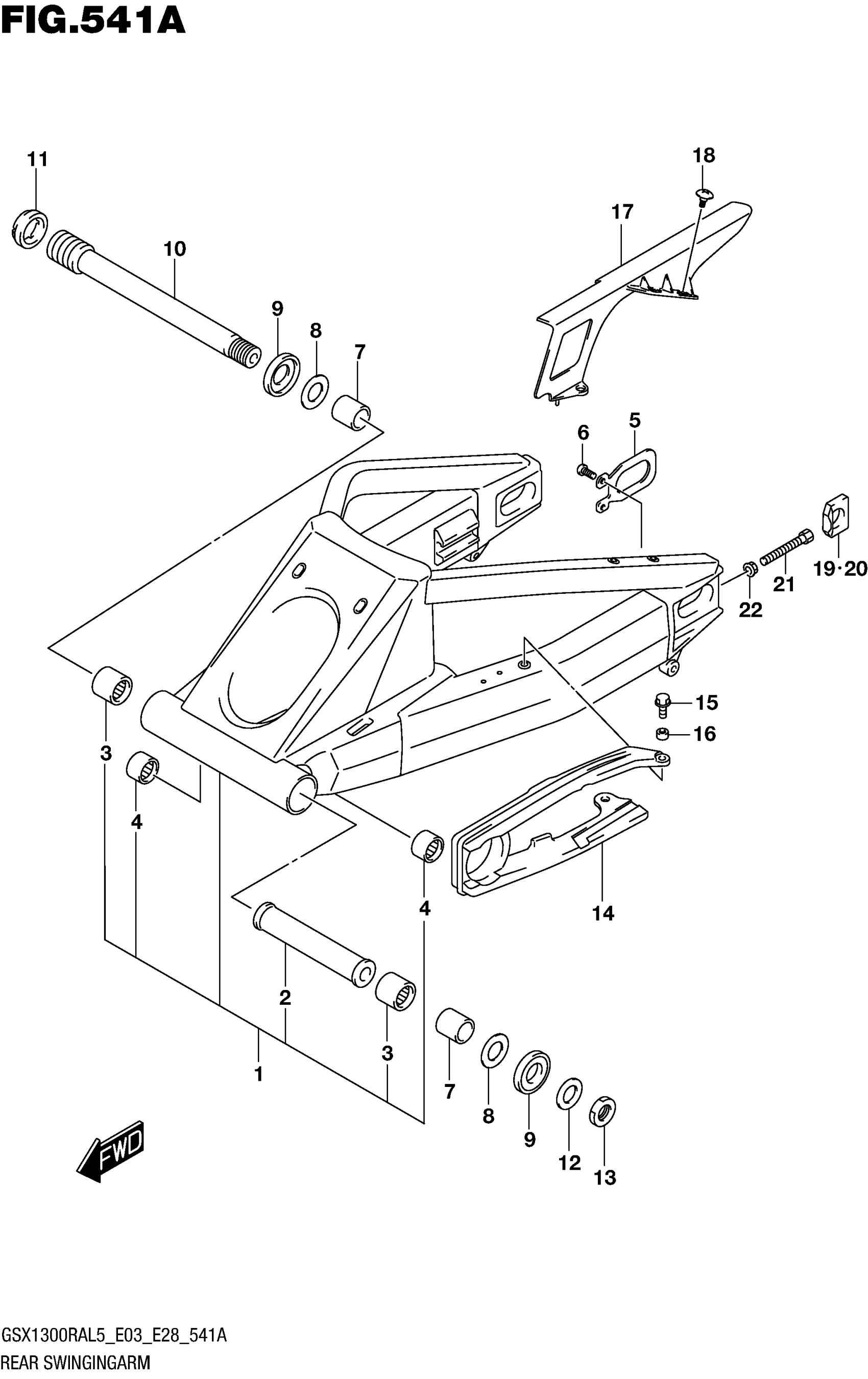

Suzuki GSX1300RAL5 (2015) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-24F50-YAP

$3,220.32

2

SPACER, CENTER

61281-33E20

$63.75

3

BEARING (30X40X25)

09263-30040

$35.38

4

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

5

PLATE, BRACKET

61124-33E00

$6.27

6

SCREW (6X16)

09125-06073

$1.93

7

SPACER,RR SWGARM PIVOT BEARIN

61251-17E20

$12.02

8

WASHER

08211-25481

$5.17

9

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$8.29

10

SHAFT,RR SWINGINGARM PIVOT

61211-16G00

$204.23

11

NUT, PIVOT SHAFT

61214-40C31

$64.22

12

WASHER (25.2X42X3.2)

09160-25070

$4.30

13

NUT

09159-25003

$28.75

14

BUFFER,CHAIN This part replaces 61273-15H00.

61273-15H01

$72.12

15

BOLT (6X20)

09116-06152

$2.14

16

SPACER (6.5X9X5)

09180-06306

$2.06

17

CASE,CHAIN

61311-15H00

$74.48

18

SCREW (6X16)

09139-06168

$2.64

19

ADJUSTER, CHAIN, L This part replaces 61446-40F10.

61446-40F00

$43.20

20

ADJUSTER, CHAIN, R This part replaces 61445-40F20.

61445-40F00

$43.20

21

BOLT (8X50)

09100-08287

$2.80

22

NUT

08316-1008A

$2.47
