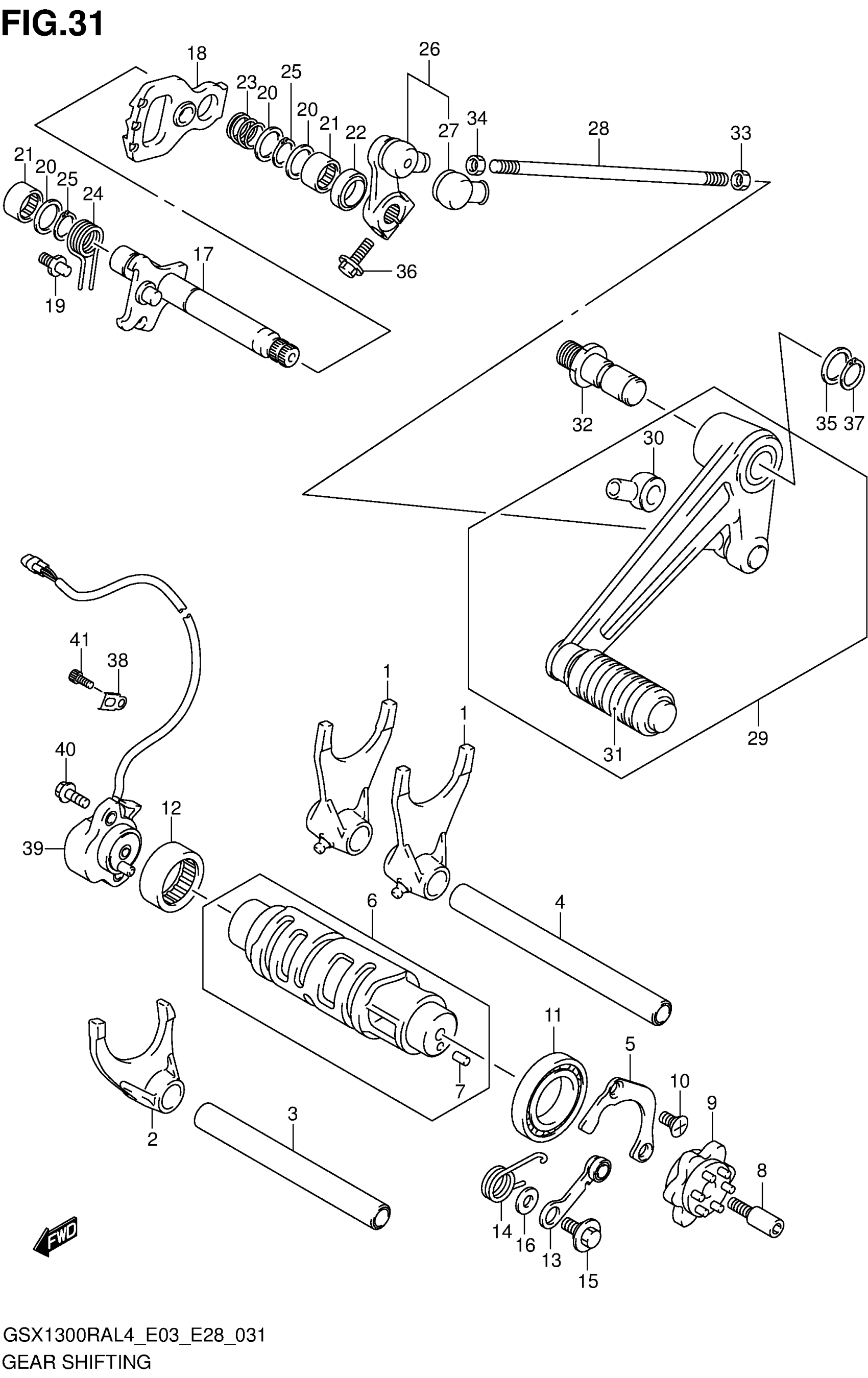

Suzuki GSX1300RAL4 (2014) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-24F20

$126.46

2

FORK,GEAR SHIFT NO.3

25231-24F20

$127.74

3

SHAFT, GEAR SHIFT NO.2 | L:132

25411-24F00

$32.85

4

SHAFT, GEAR SHIFT NO.1 | L:152

25411-38B01

$32.65

5

RETAINER,SHIFT CAM BEARING

24741-24F10

$11.63

6

CAM, GEAR SHIFT

25310-24F00

$266.47

7

PIN (4X13.8)

04221-04089

$1.15

8

STOPPER, SHIFT CAM DRIVE PLATE

25312-42F01

$7.60

9

PLATE, GEAR SHIFT CAM

25381-13E00

$63.22

10

SCREW (6X12)

09126-06011

$2.09

11

BEARING (25X47X8)

09262-25006

$23.85

12

BEARING (25X32X12) | RH

09263-25018

$19.88

13

STOPPER, SHIFT CAM

25350-24F00

$36.88

14

SPRING, SHIFT CAM STOPPER

25355-24F00

$8.09

15

BOLT (6X14.3)

09111-06041

$2.73

16

WASHER

08211-06141

$1.66

17

SHAFT,GEAR SHIF This part replaces 25510-15H00.

25510-15H01

$85.60

18

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$23.32

19

STOPPER, GEAR SHIFT ARM

25671-01011

$4.28

20

SHIM (14X22X1) | RH

09181-14167

$2.64

21

BEARING (14X20X12)

09263-14027

$12.57

22

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.23

23

SPRING

09440-17009

$1.80

24

SPRING

09444-20001

$4.97

25

CIRCLIP

08331-3114A

$1.97

26

ARM,GEAR SHIFT This part replaces 25520-40F00.

25520-40F01

$53.65

27

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

28

ROD, GEAR SHIFT LINK (L:150)

25525-19F00

$9.79

29

LEVER ASSY,GEAR This part replaces 25600-17G01.

25600-17G02

$102.36

30

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

31

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.21

32

SHAFT, GEAR SHIFT LEVER

25617-03F10

$11.80

33

NUT

09140-06020

$1.73

34

NUT | LH

09140-06025

$1.89

35

WASHER (12.5X20X1)

09160-12011

$1.52

36

BOLT

01500-0625A

$1.82

37

CIRCLIP

08331-3112A

$1.82

38

CLAMP, POSITION SENSOR LEAD

31497-45000

$2.17

39

SENSOR ASSY,GEA This part replaces 37730-15H01.

37730-15H02

$71.44

40

BOLT

07120-0516A

$1.72

41

BOLT

07130-0510A

$2.92
