2014 Suzuki GSX1300RAL4 Bracket Steering Damper Diagram

← All diagrams

Find the part on the Bracket Steering Damper diagram for your 2014 Suzuki GSX1300RAL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

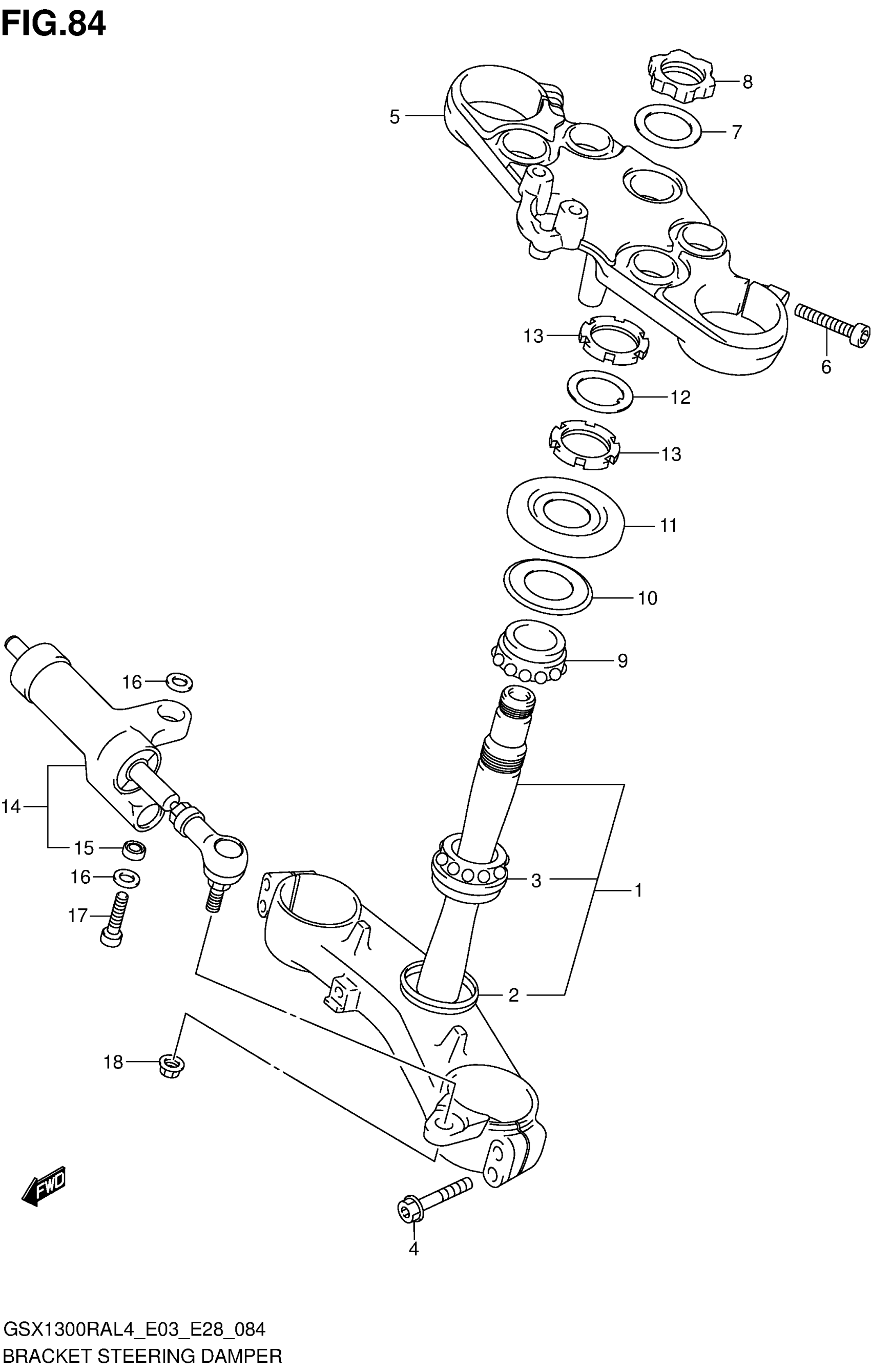

2014 Suzuki GSX1300RAL4 Bracket Steering Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,FR FORK UNDER

51410-24F50

1
Out of stock

2

SEAL, LOWER

51644-12C00

1
Out of stock

3

BEARING (30X55X17)

09267-30010

1
Out of stock

4

BOLT,AXLE STOPPER (8X40)

51166-01D80

4
Out of stock

5

BRACKET,FR FORK UPR

51311-24F50

1
Out of stock

6

BOLT

51328-24F50

2
Out of stock

7

WASHER

51356-24F50

1
Out of stock

8

NUT

51353-24F00

1
Out of stock

9

BEARING (30X55X17)

09267-30010

1
Out of stock

10

SEAL, DUST UPPER (30.1X56X4)

51644-12C00

1
Out of stock

11

COVER, STEERING UPPER

51643-41G00

1
Out of stock

12

WASHER, STEM

51641-33E00

1
Out of stock

13

NUT, STEM

51631-33E00

2
Out of stock

14

DAMPER ASSY,STEERING

51750-15H00

1
Out of stock

15

BEARING (8X17.5X11)

09269-08003

1
Out of stock

16

SEAL, DUST

64339-14101

2
Out of stock

17

BOLT

07130-08307

1
Out of stock

18

NUT

08319-3108A

1
Out of stock
