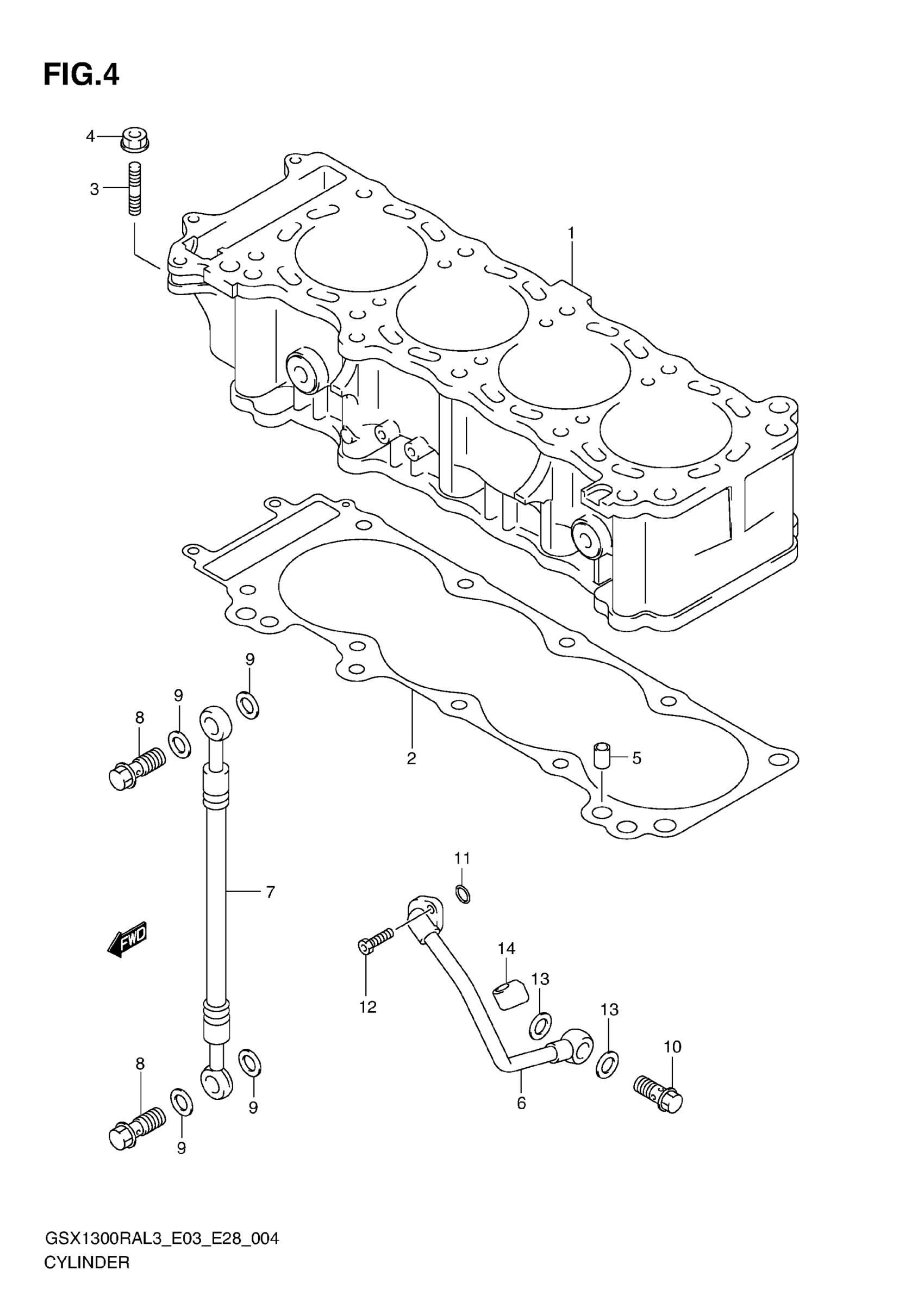

Suzuki GSX1300RAL3 (2013) CYLINDER Diagram

#

Description
Price

1

CYLINDER

11210-15H00-0F0

$2,218.27

2

GASKET

11241-15H00

$47.33

3

BOLT,STUD

01421-0625B

$2.50

4

NUT

08316-1006B

$2.50

5

PIN

04211-11169

$1.77

6

PIPE,CRANKCASE OIL

11280-24F00

$81.72

7

HOSE, OIL

11282-24F00

$74.06

8

UNION

09360-10062

$5.81

9

GASKET (10.1X16X1)

09168-10007

$1.71

10

UNION

09360-14012

$9.80

11

O RING (D:2.4,ID:11.8)

09280-12012

$4.19

12

BOLT (6X16)

09106-06073

$2.38

13

.GASKET (14X20X1.5)

09168-14015

$2.01

14

CUSHION,CRANKCASE OIL PIPE This part replaces 11283-24F00.

11283-24F01

$5.73
