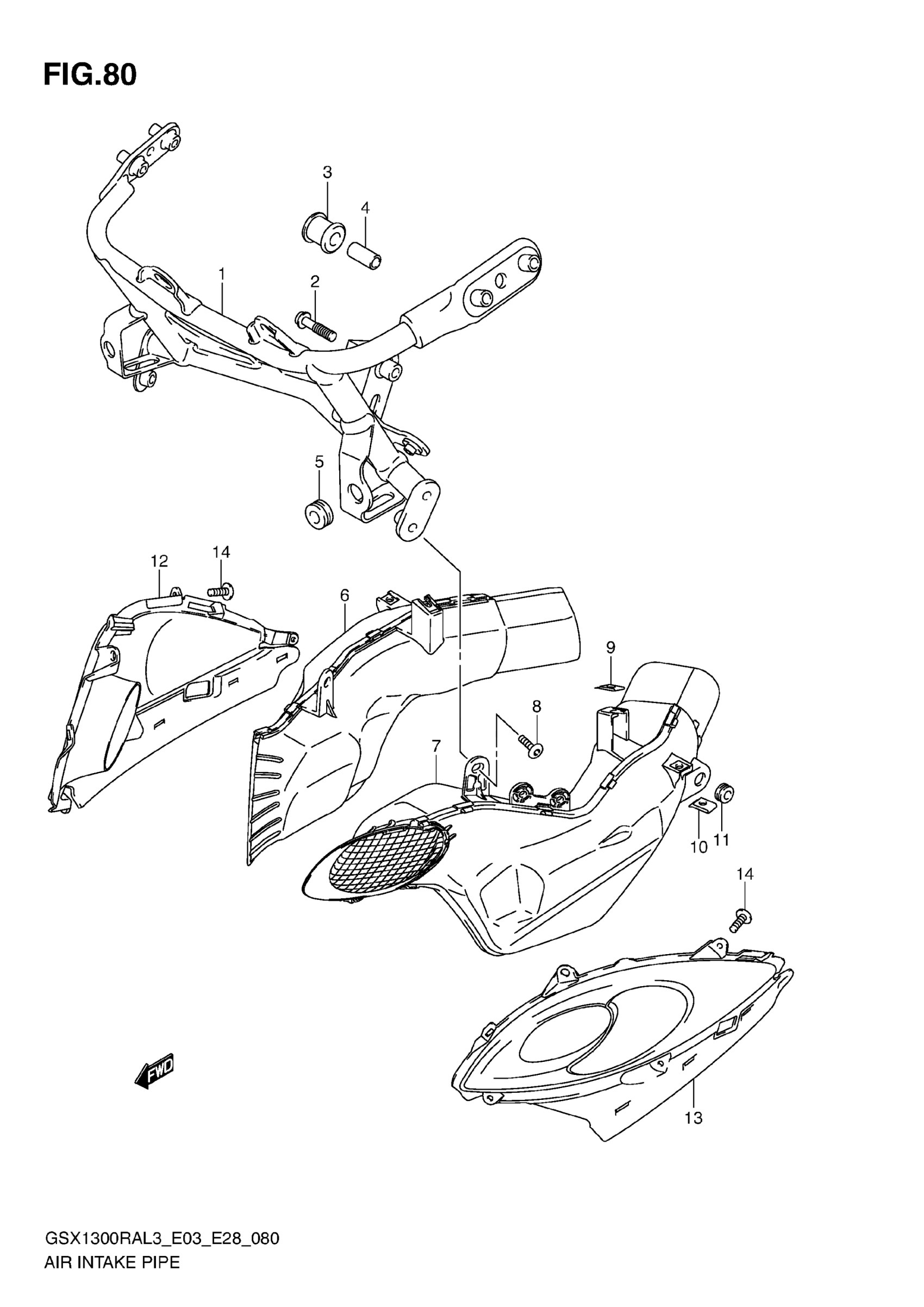

Suzuki GSX1300RAL3 (2013) AIR INTAKE PIPE Diagram

#

Description
Price

1

BRACE, COWLING This part replaces 94510-15H00.

94510-15H01

$484.68

2

BOLT (8X40)

09103-08367

$4.12

3

CUSHION, UPPER

94541-41C00

$4.87

4

SPACER (8.6X12.2X26.5)

09180-08215

$3.84

5

CUSHION

09320-08028

$2.80

6

PIPE, INTAKE RH

94420-15H01

$156.30

7

PIPE, INTAKE LH

94430-15H01

$156.30

8

SCREW

94423-15H00

$6.57

9

NUT COWL

94484-24F00

$3.63

10

NUT

09148-05038

$1.97

11

CUSHION

09320-08028

$2.80

12

COVER,INTAKE,R | FOR KGK This part replaces 94671-15H00-YMF.

94671-15H01-YMF

$356.93

12

COVER,INTAKE,R | FOR AJN This part replaces 94671-15H00-YWW.

94671-15H01-YWW

$371.38

12

COVER,INTAKE,R | FOR AJM This part replaces 94671-15H00-YVB.

94671-15H01-YVB

$281.53

13

COVER,INTAKE,L | FOR KGK This part replaces 94681-15H00-YMF.

94681-15H01-YMF

$278.42

13

COVER,INTAKE,L | FOR AJN This part replaces 94681-15H00-YWW.

94681-15H01-YWW

$278.92

13

COVER,INTAKE,L | FOR AJM This part replaces 94681-15H00-YVB.

94681-15H01-YVB

$278.92

14

SCREW (5X16)

09132-05053

$2.26
