Description

Price

1

STAND,PROP

42310-24F00

$185.07

2

BOLT, PROP STAND

09111-10059

$6.27

3

NUT

09159-10103

$2.80

4

SPRING, INNER

09443-14068

$5.03

5

SPRING, OUTER

09443-19015

$5.43

6

BRACKET,PROP STAND This part replaces 42330-24F00.

42330-24F01

$177.00

7

BOLT

09100-12077

$5.83

8

PEDAL, BRAKE This part replaces 43111-24F00.

43111-24F01

$178.13

9

WASHER

09160-18022

$2.80

10

HOOK,RETURN SPRING

43561-24F00

$17.63

11

CLIP This part replaces 08331-31186.

08331-3118A

$2.30

12

SPRING, RETURN

09443-13032

$5.88

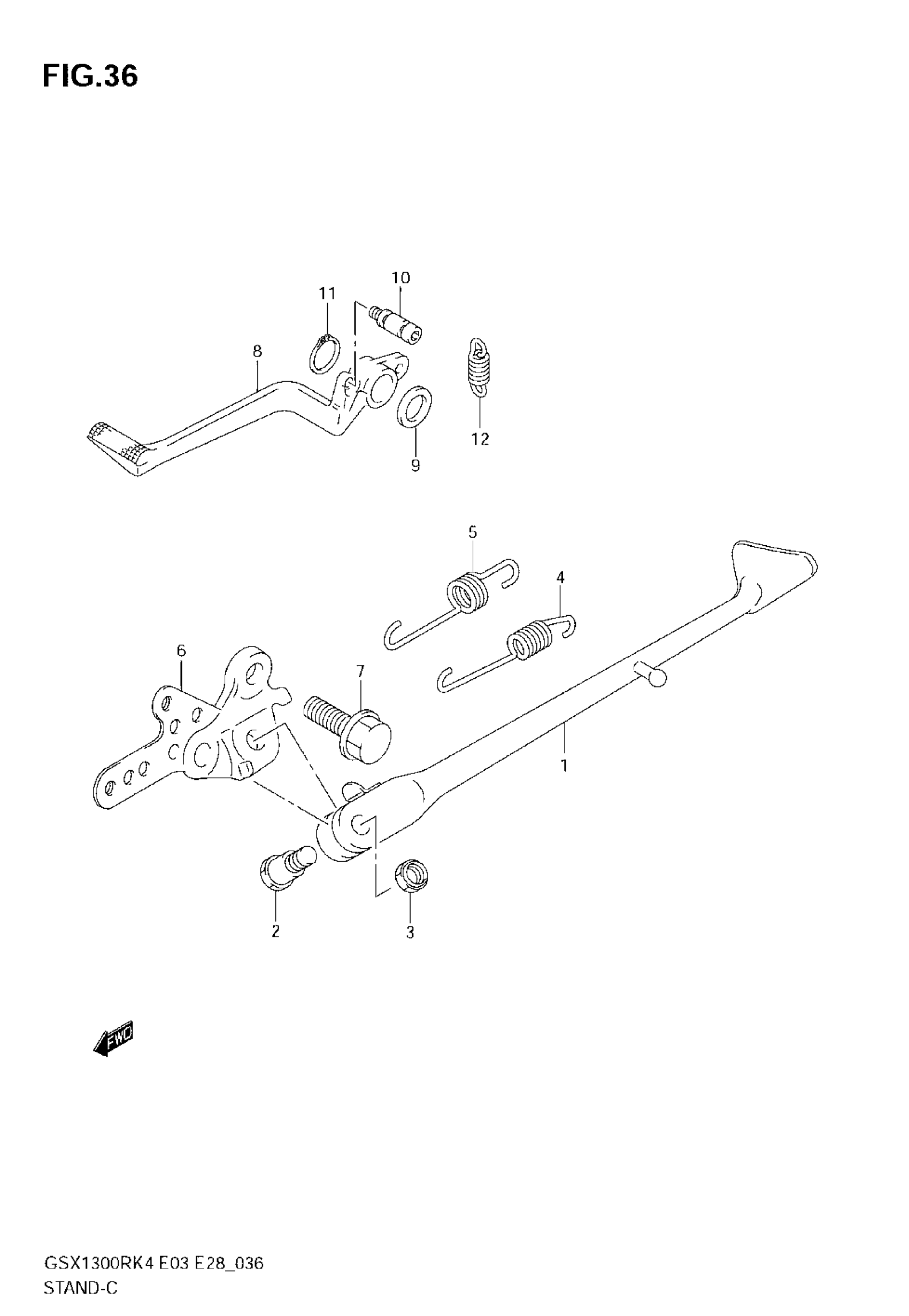

Suzuki GSX1300R (2007) STAND Diagram
