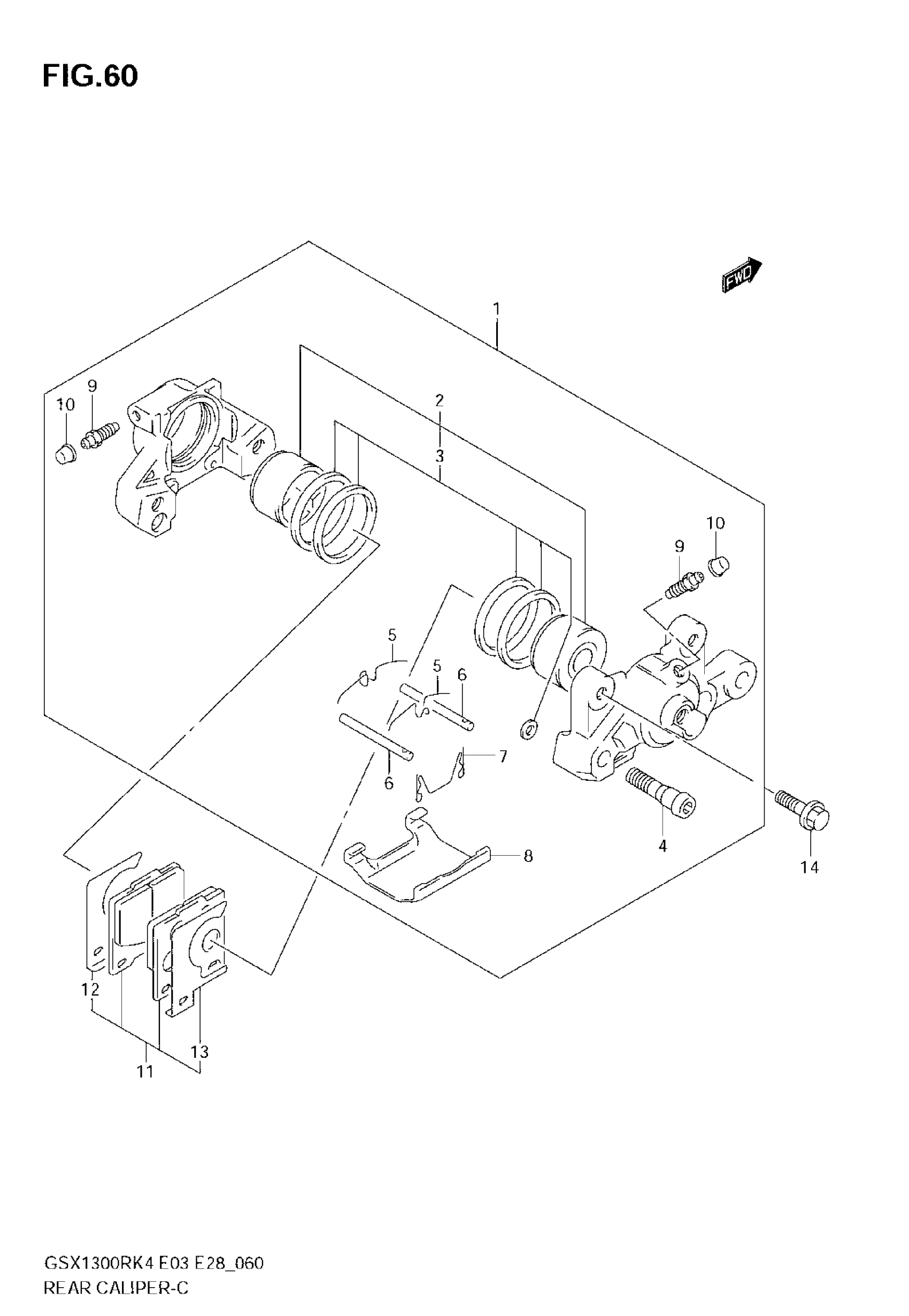

Suzuki GSX1300R (2007) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 10

69100-05CH0-999

$402.60

2

PISTON SET

69100-05851

$58.04

3

SEAL SET, PISTON This part replaces 69100-32821.

69101-05840

$21.92

4

BOLT

59145-05C50

$7.85

5

SPRING

59143-16700

$5.54

6

PIN

69141-46E01

$8.35

7

CLIP

69142-46E01

$15.75

8

COVER

59151-16701

$13.15

9

BLEEDER

59121-18410

$8.35

10

CAP

55156-66310

$4.94

11

PAD & SHIM SET | Includes Item(s) 12 - 13

69102-05860

$65.37

12

SHIM, INNER

59371-20C00

$18.33

13

SHIM, OUTER

59381-20C00

$18.33

14

BOLT

09103-08359

$3.54
