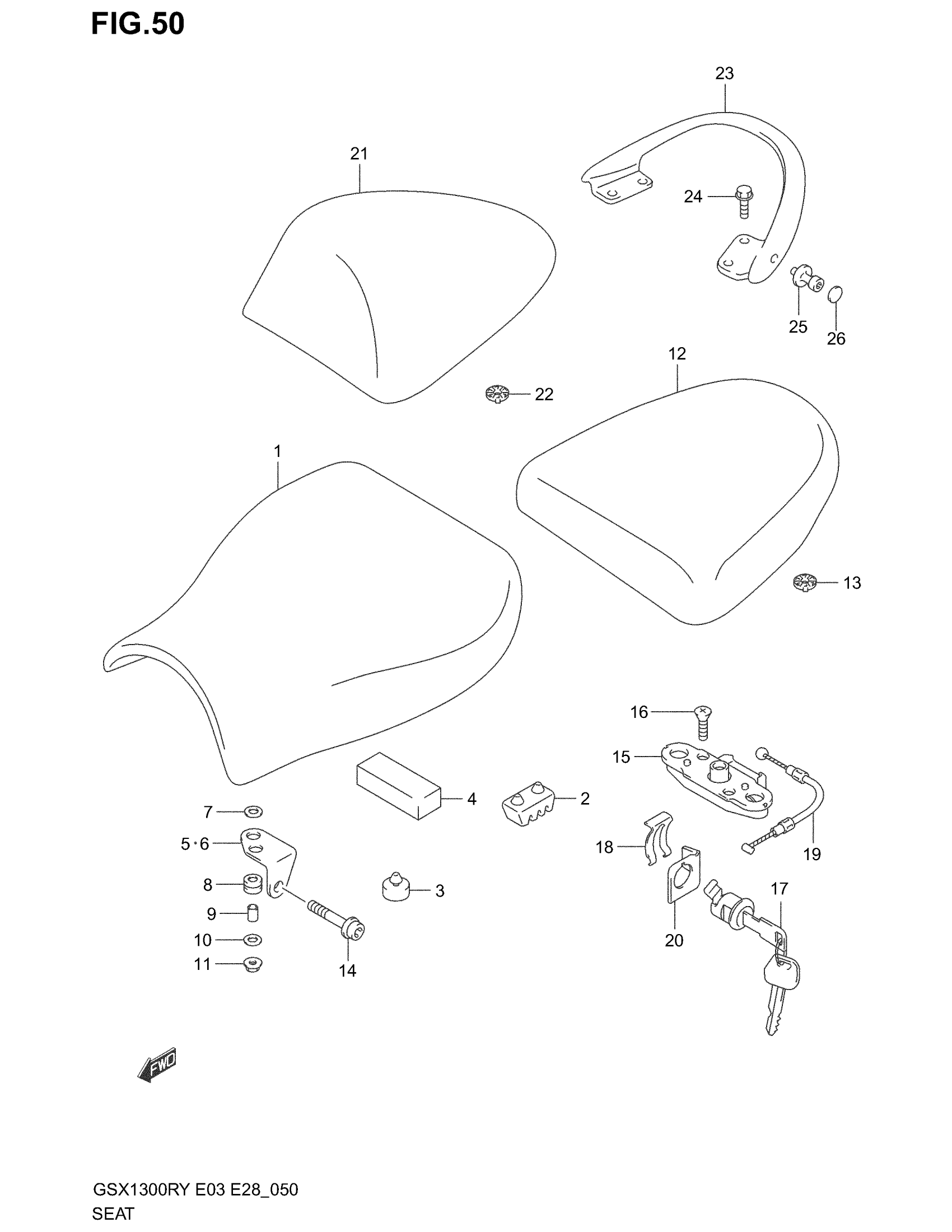

Suzuki GSX1300R (2003) SEAT (MODEL X/Y) Diagram

#

Description
Price

1

SEAT ASSY | MODEL X This part replaces 45100-24F00-W05.

45100-24F12-W05

$229.58

1

SEAT ASSY | MODEL Y; Includes Item(s) 2 - 11 This part replaces 45100-24F01-W05.

45100-24F12-W05

$229.58

2

CUSHION

45149-45330

$3.56

3

CUSHION

09321-10011

$2.80

4

CUSHION

45117-47D00

Unavailable

5

BRACKET, SEAT FRONT RH

45115-24F00

Unavailable

6

BRACKET, SEAT FRONT LH

45116-24F00

Unavailable

7

WASHER

09160-06066

$1.89

8

CUSHION,SEAT This part replaces 45149-24F00.

45149-24F02

$13.42

9

SPACER (6.5X10X10)

09180-06310

$1.92

10

WASHER | MODEL X

09160-06066

$1.89

10

WASHER, SEAT | MODEL Y

45117-24F00

$6.83

11

NUT This part replaces 08316-10063.

08316-1006B

$2.50

12

SEAT ASSY,PILLI | Includes Item(s) 13 This part replaces 45300-24F00-W05.

45300-24F11-W05

$278.75

13

CUSHION

45213-31300

$2.80

14

BOLT, SEAT FRONT (6X40)

45191-24F00

$4.67

15

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$155.43

16

SCREW This part replaces 02122-06303.

02122-0630B

$2.07

17

LOCK ASSY, SEAT

95700-14810

$98.21

18

PLATE, SEAT LOCK

45289-11F00

$5.67

19

CABLE, SEAT LOCK

45280-24F00

$13.39

20

GUIDE, CABLE

45288-14F00

$4.91

21

BOX, SEAT TAIL (BLACK) | MODEL X FOR M9T

45550-24F00-Y7L

Unavailable

21

BOX, SEAT TAIL (BROWN) | MODEL X FOR M9S

45550-24F00-Y9K

Unavailable

21

BOX, SEAT TAIL (RED) | MODEL Y E3 FOR CN4

45550-24F00-YC6

Unavailable

21

BOX, SEAT TAIL (BLUE) | MODEL Y E3 FOR CN5 This part replaces 45550-24F00-1LF.

45550-24F10-1LF

Unavailable

21

BOX, SEAT TAIL (BLACK) | MODEL Y E28 FOR M9T

45550-24F00-Y7L

Unavailable

21

BOX, SEAT TAIL (BLUE) | MODEL Y E28 FOR CN5; Includes Item(s) 22 This part replaces 45550-24F00-1LF.

45550-24F10-1LF

Unavailable

22

CUSHION

45213-31300

$2.80

23

HANDLE, PILLION RIDER (GRAY) This part replaces 46211-24F00-35W.

46211-24F01-35W

Unavailable

24

BOLT This part replaces 01550-08303.

01550-0830A

$2.80

25

HOOK, HANDLE | MODEL X This part replaces 46212-24F10.

46212-24F11

$30.47

25

HOOK, HANDLE | MODEL Y

46212-24F11

$30.47

26

CAP

09250-05009

$2.10
