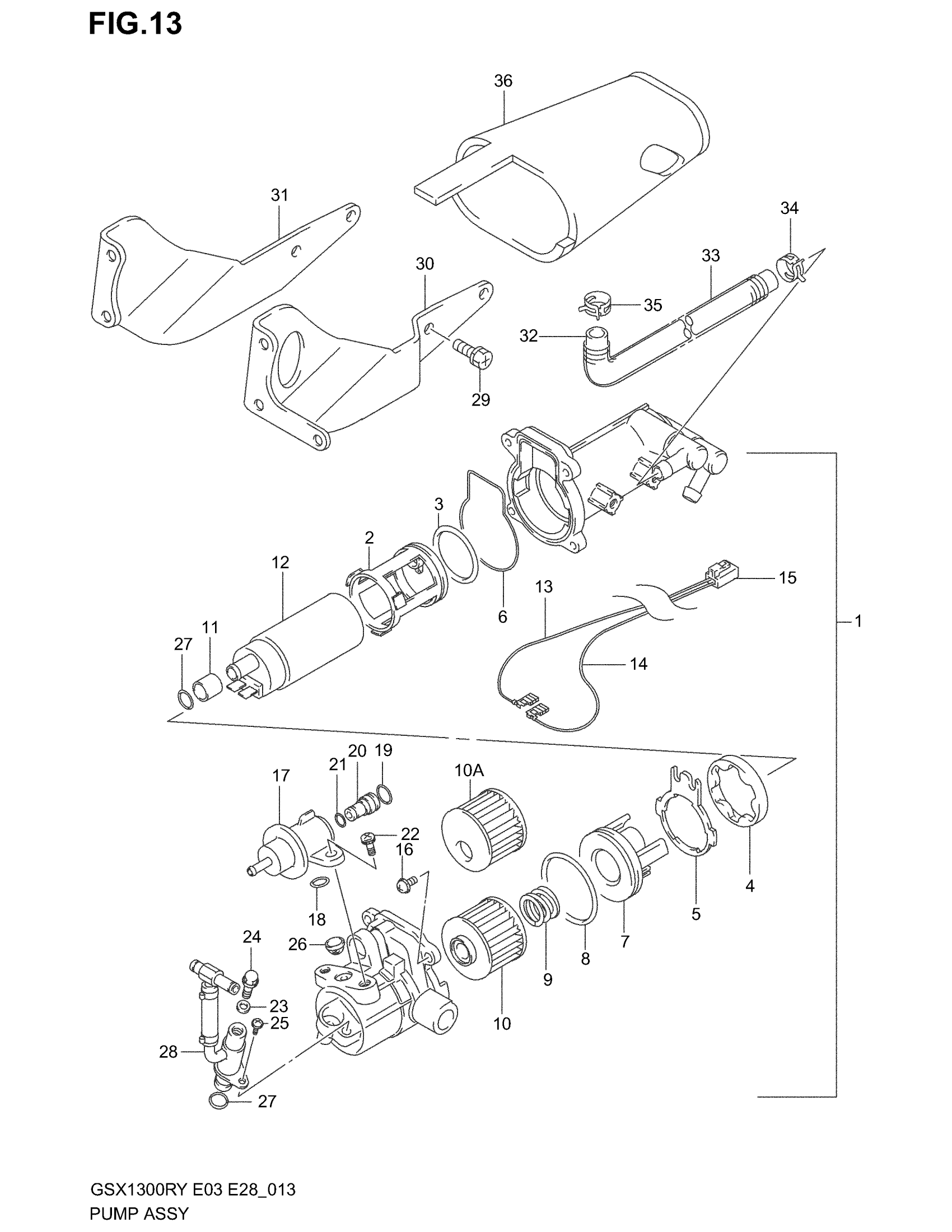

Suzuki GSX1300R (2003) PUMP ASSY (MODEL X/Y) Diagram

#

Description
Price

1

PUMP ASSY,FUEL | MODEL X This part replaces 15100-24F01.

15100-24F31

$809.03

1

PUMP ASSY,FUEL | MODEL Y; Includes Item(s) 2 - 27 This part replaces 15100-24F30.

15100-24F31

$809.03

2

INSULATOR

15130-24F10

Unavailable

3

O RING

15142-24F00

$31.10

4

INSULATOR

15141-24F00

Unavailable

5

PLATE, STAY

15143-24F00

Unavailable

6

PACKING This part replaces 15144-24F00.

15144-24F01

$17.74

7

COLLAR | MODEL X

15145-24F00

Unavailable

7

COLLAR | MODEL Y

15145-24F30

Unavailable

8

O RING

15146-24F00

$28.53

9

SPRING | MODEL X

15151-24F00

Unavailable

9

SPRING | MODEL Y

15151-24F30

Unavailable

10

STRAINER, FUEL | MODEL X

15410-24F00

$61.38

10A

STRAINER, FUEL | MODEL Y

15152-24F30

$59.36

11

COLLAR

15155-24F00

Unavailable

12

PUMP ASSY, FUEL

15180-24F00

Unavailable

13

HARNESS (+)

15147-24F00

Unavailable

14

HARNESS (-)

15148-24F00

Unavailable

15

HOUSING, CONNECTOR

15154-24F00

Unavailable

16

SCREW

15153-24F00

$2.80

17

REGULATOR ASSY, PRESSURE

15610-24F00

Unavailable

18

O RING

15156-24F00

Unavailable

19

O RING

15157-24F00

Unavailable

20

JOINT

15158-24F00

Unavailable

21

O RING

15159-24F00

Unavailable

22

SCREW

15161-24F00

Unavailable

23

PACKING

15162-24F00

Unavailable

24

BOLT

15163-24F00

Unavailable

25

SCREW

15164-24F00

Unavailable

26

SCREEN, FUEL STRAINER

15165-24F00

$10.58

27

.O-RING

15721-24F00

$8.31

28

PIPE SET

15170-24F00

Unavailable

29

BOLT

13611-24F10

Unavailable

30

PLATE, FUEL PUMP STAY LH

15211-24F00

Unavailable

31

PLATE, FUEL PUMP STAY RH

15212-24F00

Unavailable

32

HOSE, FUEL RETURN | MODEL X

15801-24F00

$15.25

32

HOSE, FUEL RETURN | MODEL Y

15801-24F10

$15.16

33

SPRING This part replaces 09440-17020.

09440-17020-XC0

$7.33

34

CLIP, PUMP SIDE | MODEL X

09401-13417

$2.24

34

CLIP, PUMP SIDE | MODEL Y

09401-14404

$2.29

35

CLIP | MODEL X This part replaces 09401-11407.

09401-11415

$2.24

35

CLIP, TANK SIDE | MODEL Y

09401-12405

$2.24

36

COVER, FUEL PUMP

15310-24F00

Unavailable
