2003 Suzuki GSX1300R Frame Cover Diagram

← All diagrams

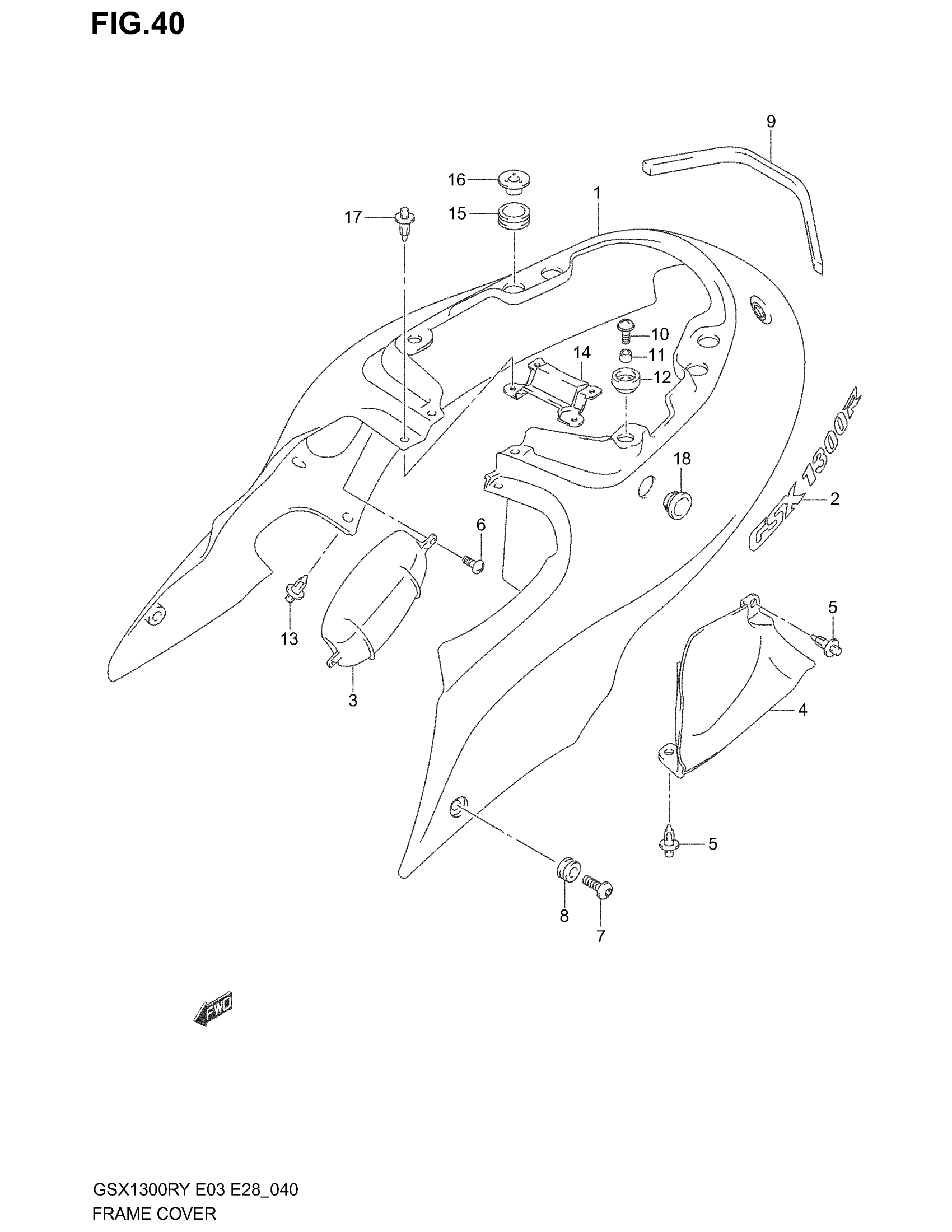

Find the part on the Frame Cover diagram for your 2003 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX1300R Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | FOR M9S This part replaces 47110-24F00-Y9K.

47110-24F01-Y9K

1
Out of stock

1

COVER,FRAME PRI | FOR M9T; Includes Item(s) 2 - 2 This part replaces 47110-24F00-Y7L.

47111-24F01

1
Out of stock

2

EMBLEM | FOR Y9K

68131-24F00-N0Z

2
Out of stock

2

EMBLEM | FOR Y7L

68131-24F00-N1D

2
Out of stock

3

CAP, RH

47511-24F00

1
Out of stock

3

CAP, RH | E33

47511-24F10

1
Out of stock

4

CAP, LH

47521-24F00

1
Out of stock

5

CLIP, LH (BLACK)

09409-06314-5PK

2
Out of stock

6

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

2
Out of stock

7

SCREW This part replaces 09139-06087.

09139-06126

2
Out of stock

8

CUSHION

09320-09016

2
Out of stock

9

CUSHION, REAR

47161-27E00

1
Out of stock

10

SCREW, UPPER

09136-06105

2
Out of stock

11

SPACER

09180-06288

2
Out of stock

12

CUSHION

09320-10045

2

$3.63

In stock

13

CLIP, LOWER (BLACK)

09409-06314-5PK

4
Out of stock

14

COVER, CENTER (BROWN) | FOR M9S

47311-24F00-Y9K

1
Out of stock

14

COVER, CENTER (BLACK) | FOR M9T

47311-24F00-Y7L

1
Out of stock

15

CUSHION, UPPER REAR

47191-24F00

4
Out of stock

16

.WASHER,FRAME COVER This part replaces 47190-24F00.

47190-24F01

4
Out of stock

17

CLIP (BLACK)

09409-06314-5PK

4
Out of stock

18

CUSHION, CENTER

47191-24F20

2
Out of stock
