2003 Suzuki GSX1300R 2ND AIR Diagram

← All diagrams

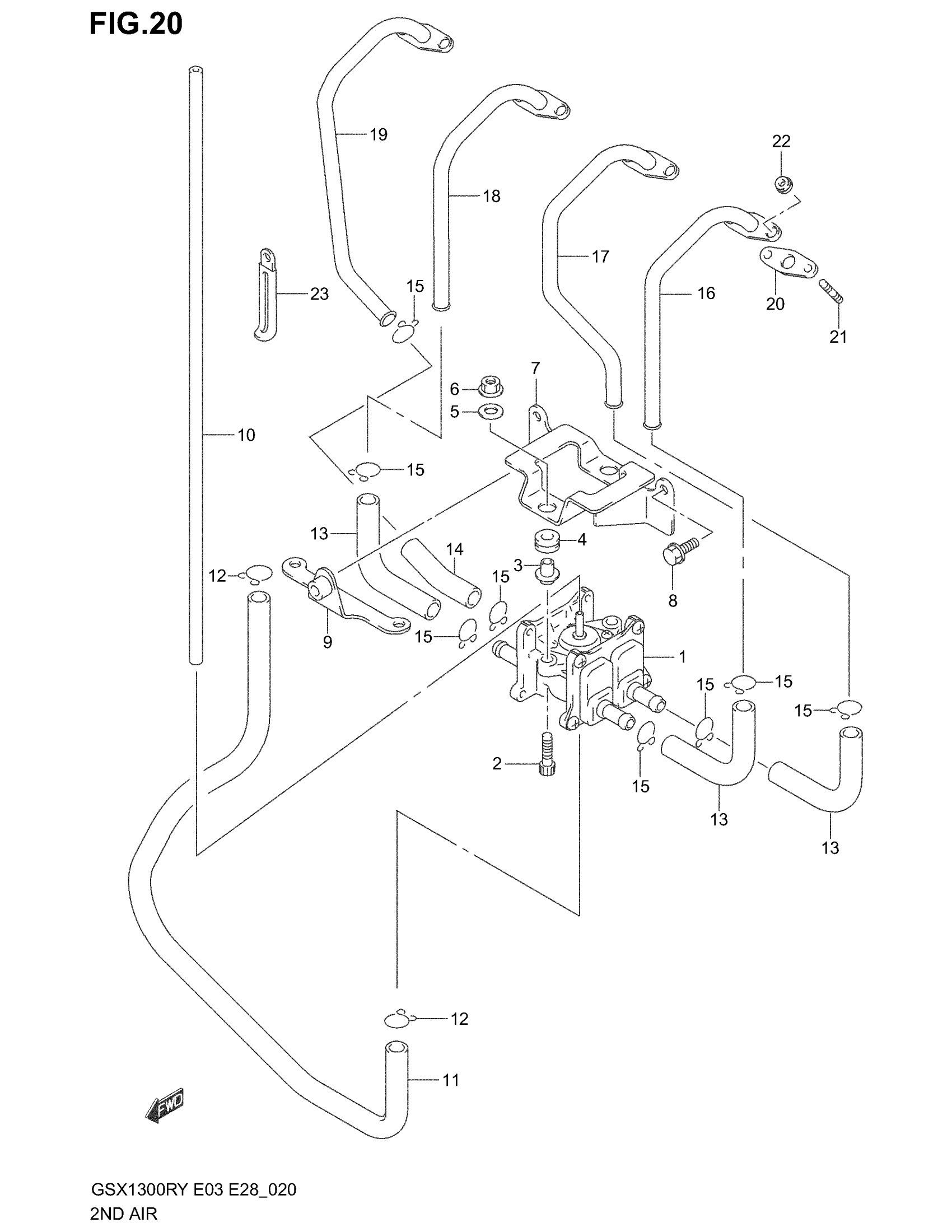

Find the part on the 2ND AIR diagram for your 2003 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX1300R 2ND AIR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY,2ND | MODEL X/Y/K1 This part replaces 18450-24F02.

18450-24F04

1
Out of stock

1

VALVE ASSY,2ND | MODEL K2/K3 This part replaces 18450-24F03.

18450-24F04

1
Out of stock

2

BOLT This part replaces 07130-06353.

07130-0635B

2
Out of stock

3

SPACER, 2ND AIR VALVE SUPPORT

18630-24F10

2
Out of stock

4

CUSHION, 2ND AIR VALVE SUPPORT

09320-10015

2
Out of stock

5

.WASHER (6.5X20X1.6)

09160-06088

2

$1.80

In stock

6

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

7

BRACKET, 2ND AIR VALVE

18610-24F01

1
Out of stock

8

BOLT (6X12) This part replaces 09103-06083.

09103-06285

3
Out of stock

9

BRACKET, 2ND AIR VALVE BRACKET

18620-24F00

1
Out of stock

10

HOSE(3.5X7.5X20 | L:2000!650 This part replaces 09355-35755-00B.

09355-35007-00B

1
Out of stock

11

HOSE,2ND AIR CL This part replaces 18711-24F00.

18711-24F01

1
Out of stock

12

CLIP

09401-15101

2
Out of stock

13

HOSE, 2ND AIR VALVE FR

18461-24F00

3
Out of stock

14

HOSE, 2ND AIR VALVE RH

18491-24F00

1
Out of stock

15

CLIP

09401-13409

8
Out of stock

16

PIPE, 2ND AIR NO.1

18410-24F00

1
Out of stock

17

PIPE, 2ND AIR NO.2

18420-24F00

1
Out of stock

18

PIPE, 2ND AIR NO.3

18430-24F00

1
Out of stock

19

PIPE, 2ND AIR NO.4

18440-24F00

1
Out of stock

20

GASKET 2ND AIR PIPE

18441-45C01

4
Out of stock

21

8

$2.05

In stock

22

NUT This part replaces 08316-10063.

08316-1006B

8
Out of stock

23

CLAMP This part replaces 09404-06432.

09404-06039

2
Out of stock
