2009 Suzuki GSX1300BK Tool Holder Diagram

← All diagrams

Find the part on the Tool Holder diagram for your 2009 Suzuki GSX1300BK, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

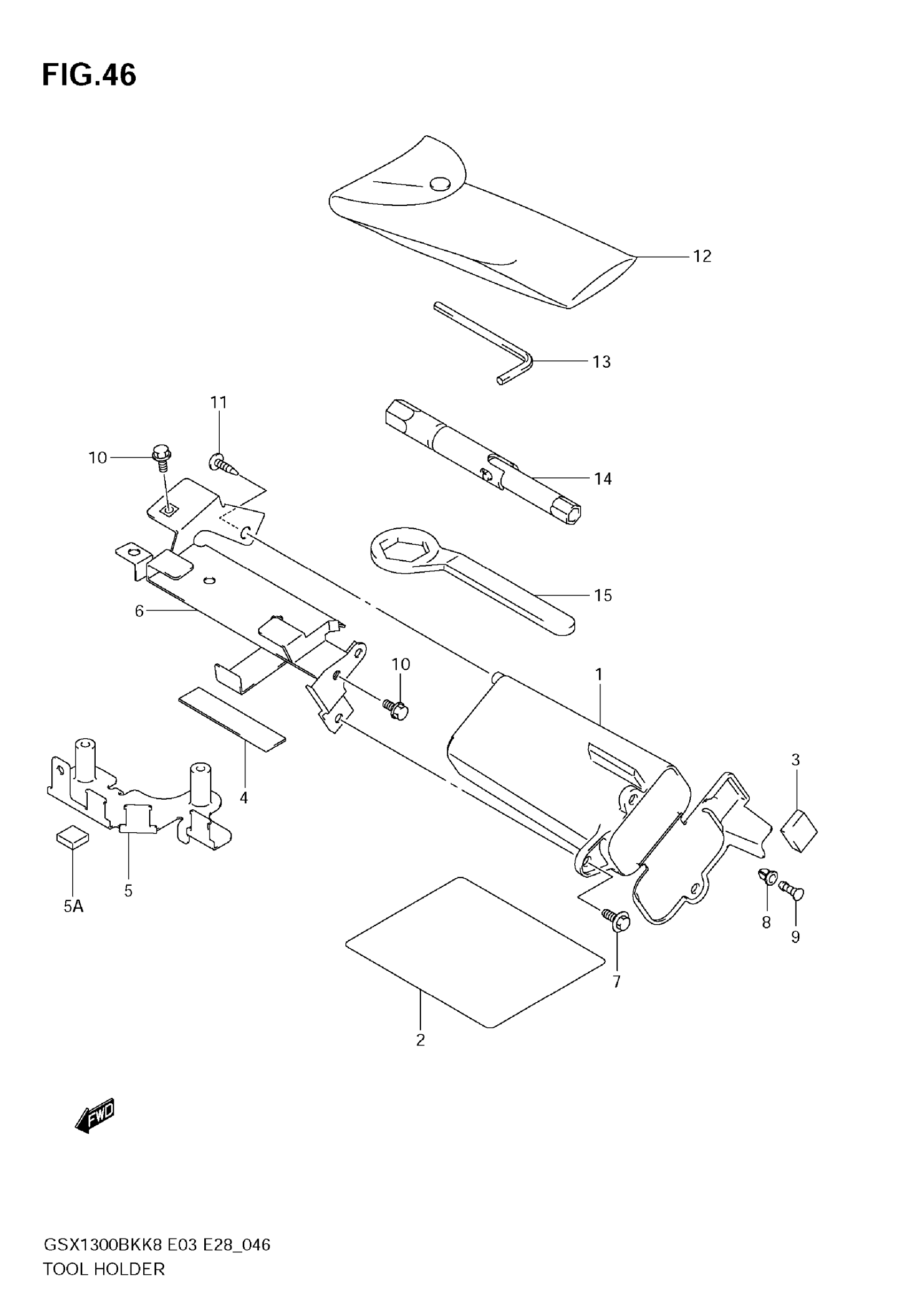

2009 Suzuki GSX1300BK Tool Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, TOOL

47435-23H00

1
Out of stock

2

SHIELD, TOOL HOLDER

47436-23H00

1
Out of stock

3

CUSHION, TOOL HOLDER LID

47437-23H00

1
Out of stock

4

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

1
Out of stock

5

PLATE, RELAY FITTING | Includes Item(s) 5A

47800-23H00

—
Out of stock

5A

CUSHION

47814-23H00

—
Out of stock

6

BRACKET, TOOL HOLDER

47820-23H00

1
Out of stock

7

BOLT, TOOL HOLDER

09111-06090

1
Out of stock

8

GROMMET

09409-08329

1
Out of stock

9

PLUNGER

09409-08330

1
Out of stock

10

BOLT, TOOL HOLDER BRACKET

01550-0612A

2
Out of stock

11

SCREW, TOOL HOLDER

03541-0516A

1
Out of stock

12

TOOL ASSY This part replaces 09800-21055.

09800-21102

1
Out of stock

13

HEXAGON, SPANNER 6

09816-00050

1
Out of stock

14

SPANNER (16)

09816-00149

1
Out of stock

15

SPANNER, RING 36

09817-00034

1
Out of stock
