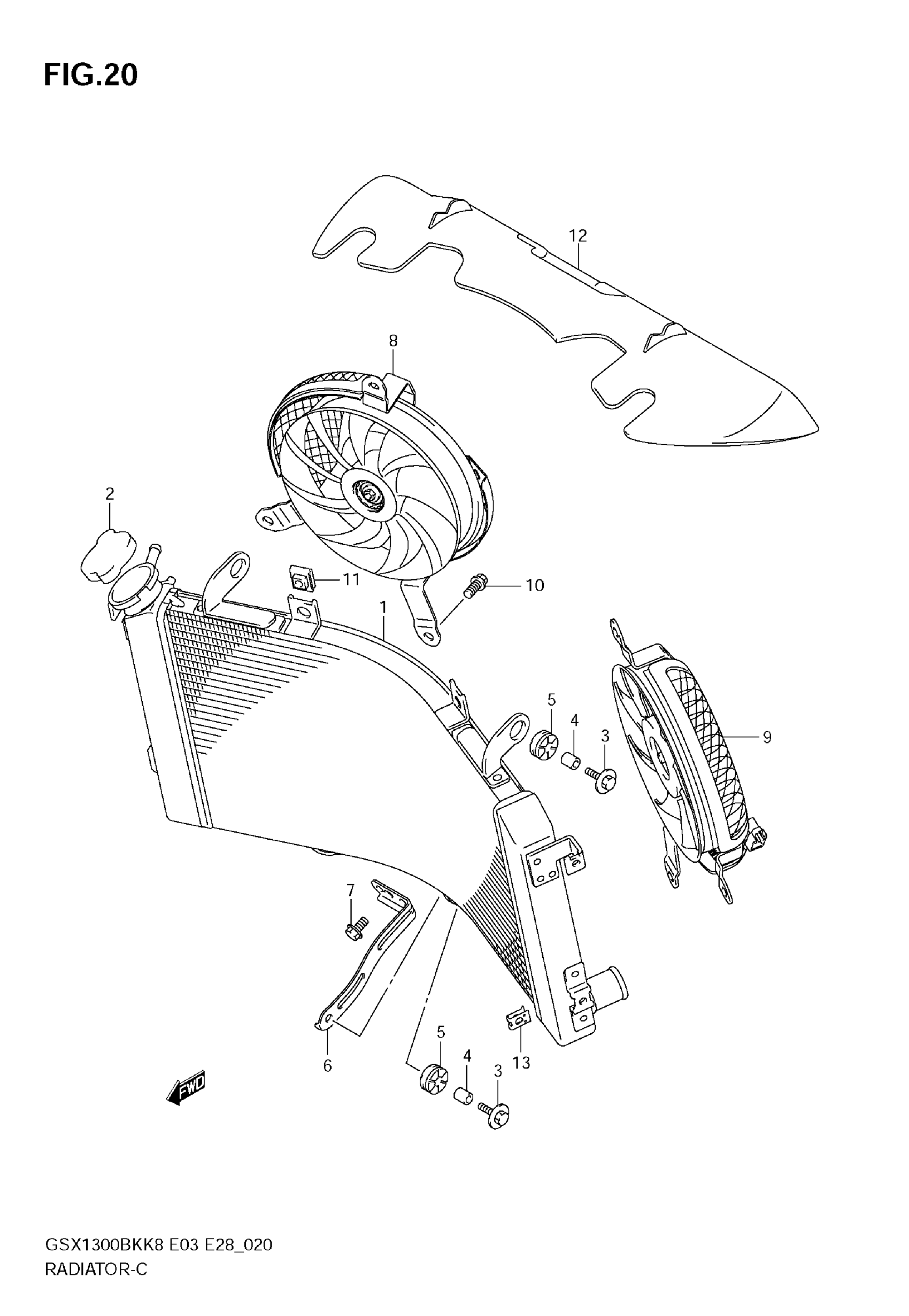

Suzuki GSX1300BK (2009) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-23H00

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$38.90

3

BOLT (6X25)

09118-06097

$2.50

4

SPACER

09180-06290

$2.01

5

CUSHION

09320-10051

$2.81

6

BRACKET, RADIATOR LOWER

17750-24F00

$12.35

7

BOLT

01550-0612A

$1.97

8

FAN ASSY, RADIATOR RH

17810-15H00

Unavailable

9

FAN ASSY, RADIATOR LH

17820-15H00

Unavailable

10

BOLT

17711-40F00

$6.30

11

NUT, FAN ASSY

17712-40F00

$4.42

12

SHIELD, HEAT

17771-23H00

Unavailable

13

NUT

09148-05052

$3.04
