2011 Suzuki GSX1250FAL1 Fuel Tank Diagram

← All diagrams

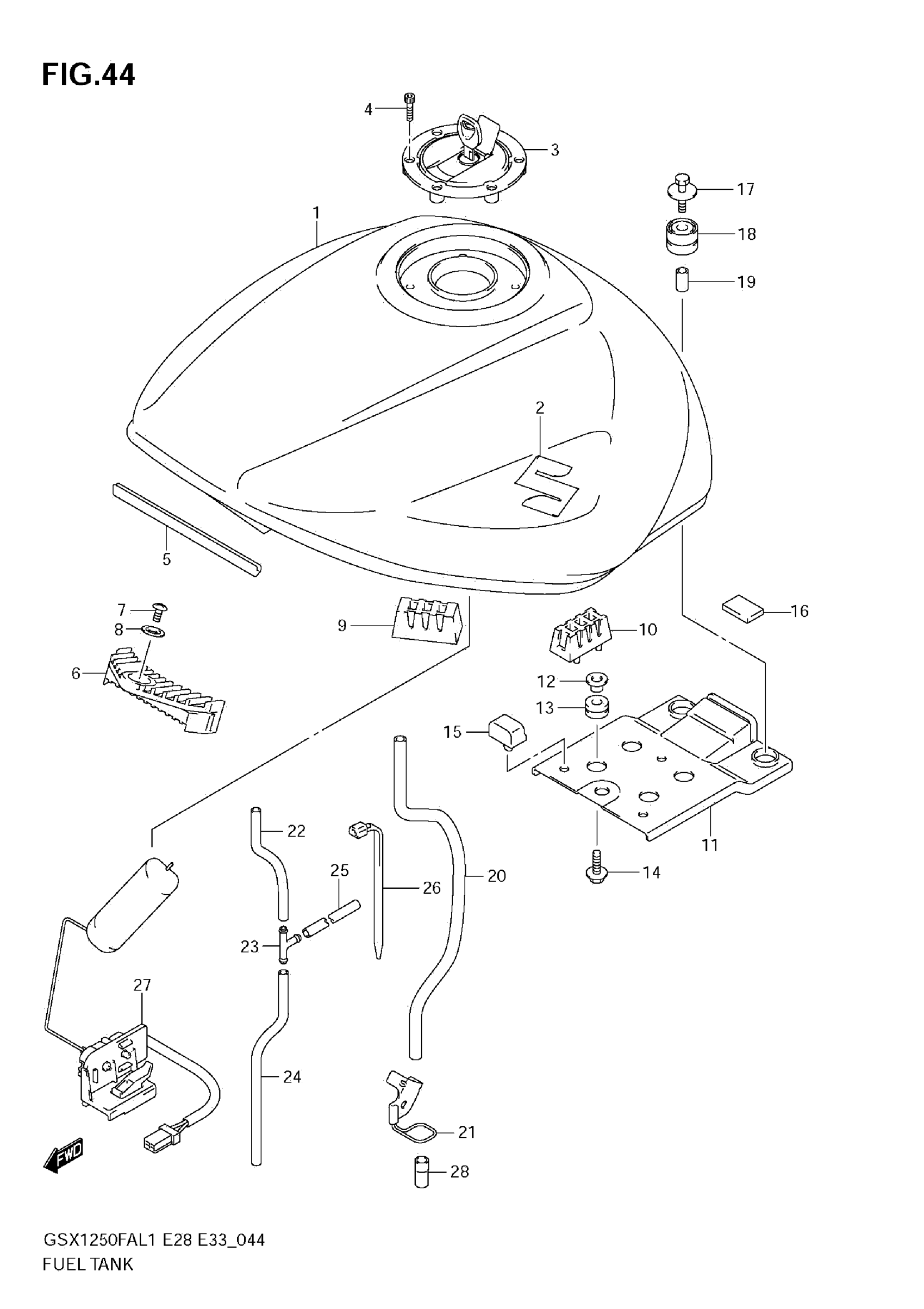

Find the part on the Fuel Tank diagram for your 2011 Suzuki GSX1250FAL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki GSX1250FAL1 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL (BLACK)

44100-18H30-YAY

—
Out of stock

1

TANK ASSY, FUEL (GRAY)

44100-18H30-YHG

—
Out of stock

1

TANK ASSY, FUEL (BLUE)

44100-18H30-YKZ

—
Out of stock

2

EMBLEM, S

68111-18G20

2
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

1
Out of stock

4

BOLT (5X20)

09106-05017

3
Out of stock

5

MOLDING

68241-04X50-300

1
Out of stock

6

CUSHION, FRONT

44511-27E00

1
Out of stock

7

SCREW

02142-0510B

1
Out of stock

8

WASHER

09169-05012

1
Out of stock

9

CUSHION, SIDE

45149-45330

2
Out of stock

10

CUSHION, FUEL TANK SIDE

44541-31F00

2
Out of stock

11

BRACKET, REAR

44141-38G00

1
Out of stock

12

WASHER

09169-06062

4
Out of stock

13

4

$2.23

In stock

14

BOLT (6X20)

09116-06192

4
Out of stock

15

CUSHION

45149-21G00

3
Out of stock

16

CUSHION

47163-10FA0

1
Out of stock

17

BOLT (6X30)

09116-06172

2
Out of stock

18

CUSHION,FUEL TA This part replaces 44541-38G00.

44541-38G01

2
Out of stock

19

SPACER (6.5X9X18)

09180-06271

2
Out of stock

20

HOSE, DRAIN

44423-18H10

1
Out of stock

21

GUIDE, DRAIN HOSE

44480-07J10

1
Out of stock

22

HOSE,VACUUM This part replaces 44425-09E00.

44425-09E01

1
Out of stock

23

.JOINT,3 WAY

09367-06002

1
Out of stock

24

HOSE,5X10X600 | L:600>300 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

25

HOSE | L:2000>610 This part replaces 09352-50823-00B.

09352-50005-00B

1
Out of stock

26

CLAMP (L:125)

09407-14403

1
Out of stock

27

GAUGE ASSY,FUEL This part replaces 34810-18H00.

34810-18H01

1
Out of stock

28

HOSE (13.5X16.5X10)

09352-13162-010

1
Out of stock
