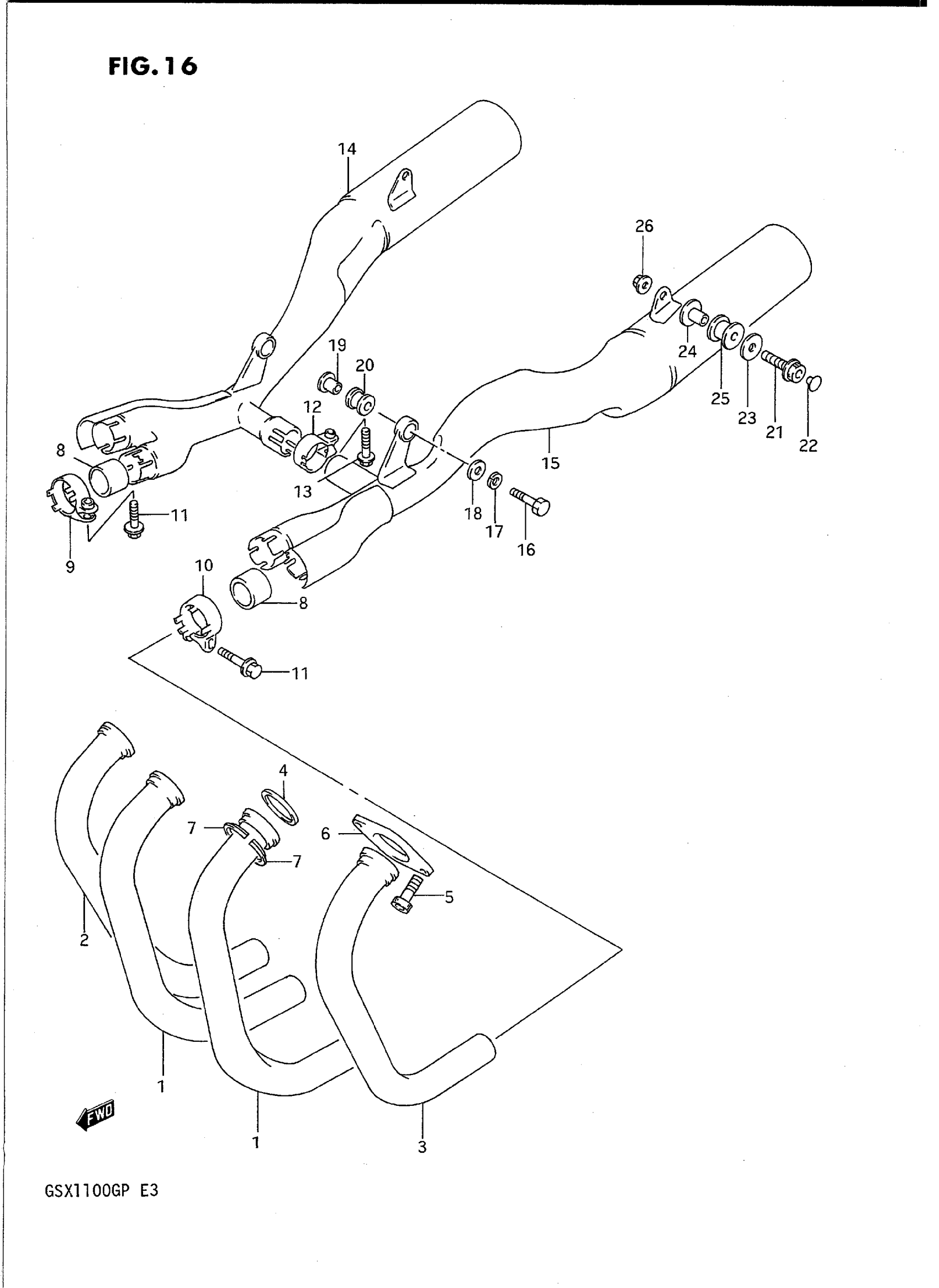

Suzuki GSX1100GP (1993) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 14170-26D00.

14170-26D02

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 14170-26D01.

14170-26D02

Unavailable

2

PIPE, EXHAUST, | MODEL M This part replaces 14150-26D00.

14150-26D02

Unavailable

2

PIPE, EXHAUST, | MODEL N/P This part replaces 14150-26D01.

14150-26D02

Unavailable

3

PIPE, EXHAUST LH | MODEL M This part replaces 14160-26D00.

14160-26D02

Unavailable

3

PIPE, EXHAUST LH | MODEL N This part replaces 14160-26D01.

14160-26D02

Unavailable

3

PIPE, EXHAUST LH | MODEL P

14160-26D02

Unavailable

4

GASKET, EXHAUST PIPE (T:2.5) | MODEL M->14181-18C00

14181-40C00

$6.61

4

.GASKET,EXHAUST | MODEL N/P

14181-18C00

$6.61

5

BOLT This part replaces 07110-08257.

07130-08257

$3.14

6

CLAMP, EXHAUST PIPE

14182-26D00

$42.37

7

PLATE, EXHAUST PIPE

14155-27A00

$3.35

8

CONNECTOR, MUFFLER

14771-48B01

Unavailable

9

CLAMP, MUFFLER CONNECTOR RH | MODEL M This part replaces 14459-26D00.

14459-26D10

Unavailable

9

CLAMP, MUFFLER CONNECTOR RH | MODEL N/P

14459-26D10

Unavailable

10

CLAMP, MUFFLER CONNECTOR LH | MODEL M This part replaces 14469-26D00.

14469-26D10

Unavailable

10

CLAMP, MUFFLER CONNECTOR LH | MODEL N/P

14469-26D10

Unavailable

11

BOLT | MODEL M This part replaces 01517-08357.

01550-08357

$3.19

11

BOLT | MODEL N/P This part replaces 01517-08258.

01550-08257

$2.80

12

CLAMP, MUFFLER JOINT

14459-45C00

Unavailable

13

BOLT This part replaces 01517-08357.

01550-08357

$3.19

14

NO DESCRIPTION AVAILABLE This part replaces 14305-26D10-H01.

14305-26D02-H01

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 14306-26D10-H01.

14306-26D02-H01

Unavailable

16

BOLT This part replaces 01107-08458.

01500-08453

$2.53

17

LOCK WASHER This part replaces 08321-31084.

08321-0108A

$1.83

18

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.10

19

SPACER

09180-08157

$7.75

20

CUSHION

09320-12057

Unavailable

21

BOLT, MUFFLER SUPPORT This part replaces 07120-08457.

07120-0845B

$3.58

22

CAP This part replaces 09250-06008.

09250-06016

$1.94

23

WASHER, MUFFLER SUPPORT This part replaces 09160-08110.

09160-08503

$2.53

24

SPACER

09180-08156

$6.14

25

CUSHION

09320-12049

$9.63

26

NUT This part replaces 08316-26088.

08316-20087

$3.00
