1993 Suzuki GSX1100GP Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 1993 Suzuki GSX1100GP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

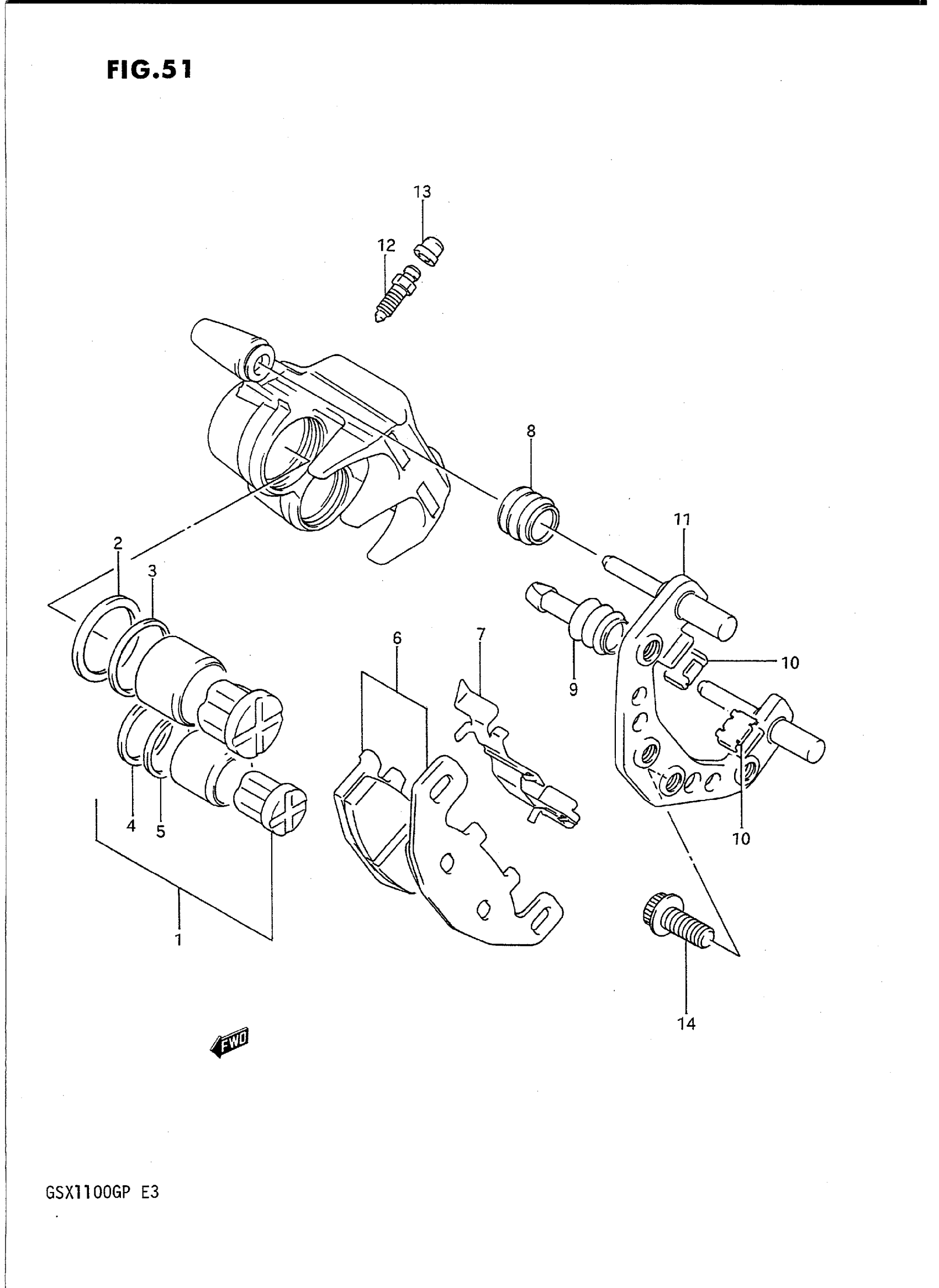

1993 Suzuki GSX1100GP Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, FRONT RH | MODEL M->59100-26D01 This part replaces 59100-26D00.

59100-26D01

1
Out of stock

CALIPER ASSY, FRONT LH | MODEL M->59300-26D01 This part replaces 59300-26D00.

59300-26D01

1
Out of stock

CALIPER ASSY, FRONT RH | MODEL N/P

59100-26D01

1
Out of stock

CALIPER ASSY, FRONT LH | MODEL N/P; Includes Item(s) 1 - 13

59300-26D01

1
Out of stock

1

2

$82.03

In stock

2

2

$13.32

In stock

3

DUST SEAL

59108-36A00

2

$12.50

In stock

4

2

$12.35

In stock

5

DUST SEAL

59108-04A00

2

$12.15

In stock

6

PAD SET

59100-26810

2
Out of stock

7

SPRING

59115-01D00

2
Out of stock

8

BOOT

59112-44B00

2

$8.88

In stock

9

INSULATOR, AXLE

59113-01D00

2

$11.48

In stock

10

GUIDE, PAD

59116-01D00

4
Out of stock

11

BRACKET

59150-01D00

2
Out of stock

12

BLEEDER

59121-18410

2

$8.70

In stock

13

2

$5.15

In stock

14

4

$5.17

In stock
