1993 Suzuki GSX1100G Crankcase Diagram

← All diagrams

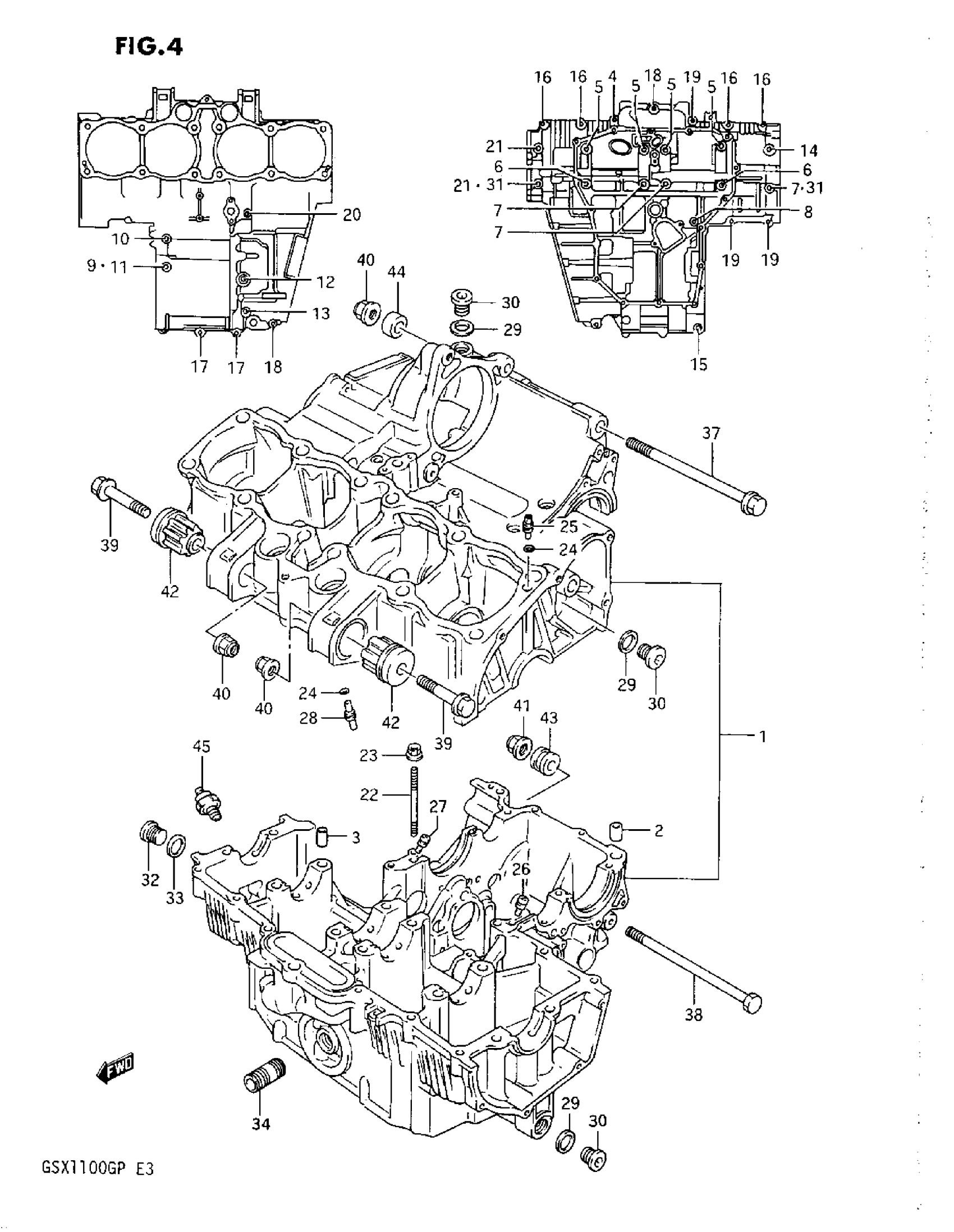

Find the part on the Crankcase diagram for your 1993 Suzuki GSX1100G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100G Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-26851

1
Out of stock

2

PLN

09206-13004

2
Out of stock

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

2
Out of stock

4

BOLT (6X100) This part replaces 09103-06020.

09103-06060

1
Out of stock

5

BOLT (8X135) This part replaces 09103-08209.

09103-08212

4
Out of stock

6

BOLT (8X145)

09103-08298

2
Out of stock

7

BOLT (8X140) This part replaces 09103-08301.

09103-08317

3
Out of stock

8

BOLT (6X120)

09103-06148

1
Out of stock

9

GASKET (8.2X14X1)

09168-08016

1
Out of stock

10

BOLT This part replaces 07110-08508.

07130-0850A

1
Out of stock

11

BOLT This part replaces 07110-08608.

07130-0860B

1
Out of stock

12

BOLT This part replaces 07110-08708.

07130-0870B

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 07110-08758.

07130-08757

1
Out of stock

14

BOLT (8X85)

09103-08300

1
Out of stock

15

BOLT This part replaces 07130-08808.

07130-0880B

1
Out of stock

16

BOLT This part replaces 01517-06358.

01550-06357

4
Out of stock

17

BOLT This part replaces 01517-06408.

01550-06407

2
Out of stock

18

BOLT This part replaces 01517-06608.

01550-06607

2
Out of stock

19

BOLT This part replaces 01517-06557.

01550-06557

3
Out of stock

20

BOLT This part replaces 01517-06808.

01550-06807

1
Out of stock

21

BOLT (8X95)

09103-08105

2
Out of stock

22

STUD BOLT

01421-06708

1
Out of stock

23

NUT This part replaces 09159-06017.

08319-31067

1
Out of stock

24

O-RING

09280-04004

6
Out of stock

25

JET, OIL HEAD

09493-14002

2
Out of stock

26

JET, OIL MISSION

09493-24010

1
Out of stock

27

JET, OIL MISSION

09493-28012

1
Out of stock

28

JET, OIL PISTON

09493-80011

4
Out of stock

29

GASKET, HOLE PLUG

09168-16002

3
Out of stock

30

PLUG, HOLE

09248-16008

3
Out of stock

31

GASKET

09168-08021

2
Out of stock

32

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

33

GASKET

09168-14004

1
Out of stock

34

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

1
Out of stock

37

BOLT (10X165)

09103-10167

1
Out of stock

38

BOLT (12XL51)

09100-12066

1
Out of stock

39

BOLT This part replaces 01517-10555.

01550-1055B

2
Out of stock

40

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

3
Out of stock

41

NUT This part replaces 08319-31125.

08319-3112B

1
Out of stock

42

BUSH, ENGINE MOUNTING

11681-27A00

2
Out of stock

43

SPACER | MODEL M/N This part replaces 11611-19B10.

11611-19B13

1
Out of stock

43

SPACER | MODEL P This part replaces 11611-19B11.

11611-19B13

1
Out of stock

44

SPACER (L:10)

11611-36A50

1
Out of stock

45

SWITCH ASSY,OIL PRESSURE | MODEL M/N This part replaces 37820-33200.

37820-33D11

1
Out of stock

45

SWITCH ASSY,OIL PRESSURE | MODEL P This part replaces 37820-33D00.

37820-33D11

1
Out of stock
