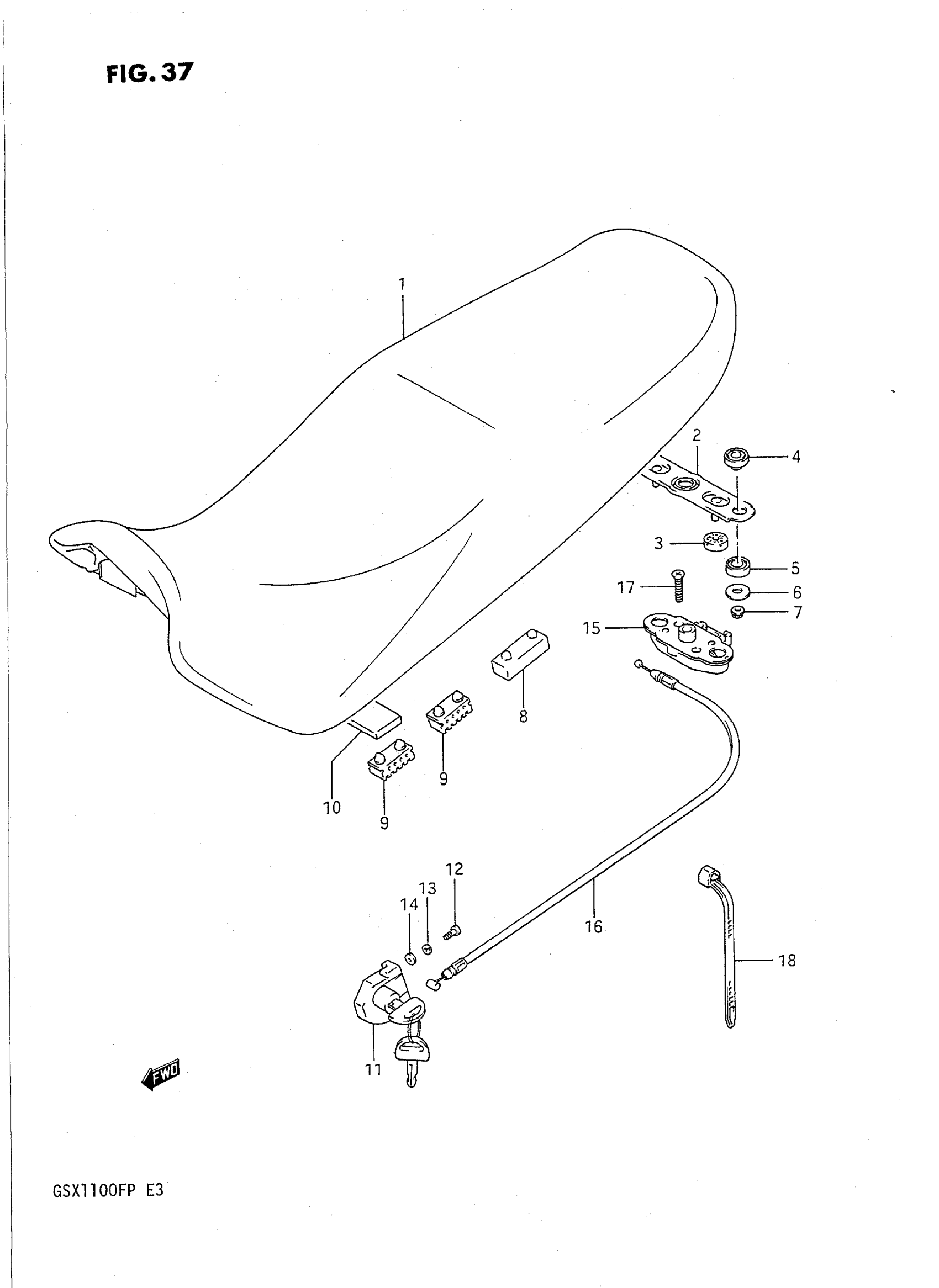

Find the part on the Seat diagram for your 1993 Suzuki GSX1100FP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100FP Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT SET (BLACK) | MODEL J This part replaces 45100-48B20-5ED.

45100-48B20-58R

1
Out of stock

1

SEAT SET (BLACK) | MODEL K/L/M/N/P; Includes Item(s) 2 - 10

45100-48B20-58R

1
Out of stock

2

STRIKER, SEAT LOCK

45215-48B20

1
Out of stock

3

CUSHION, BOSS This part replaces 45213-13600.

45213-13601

2
Out of stock

4

CUSHION

09320-10038

2
Out of stock

5

CUSHION

09320-14017

2
Out of stock

6

WASHER

08212-06222

2
Out of stock

7

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

8

CUSHION

45149-43500

2
Out of stock

9

CUSHION, SIDE This part replaces 45149-48B00.

45149-19D00

4
Out of stock

10

CUSHION, BATTERY STOPPER

94982-29400

1
Out of stock

11

LOCK ASSY, SEAT | MODEL J/K/L This part replaces 95700-26B00-KEY.

95700-26820

1
Out of stock

11

LOCK ASSY, SEAT | MODEL M/N/P

95700-26820

1
Out of stock

12

SCREW, THROTTLE | MODEL J/K/L/M This part replaces 02112-05105.

02112-0510A

2
Out of stock

12

SCREW | MODEL N/P

02112-75105

2
Out of stock

13

LOCK WASHER This part replaces 08321-21055.

08321-0105A

2
Out of stock

14

2

$1.97

In stock

15

BRACKET, SEAT SUPPORT | MODEL J/K/L/M/N This part replaces 45220-20A00.

45220-47H00

1
Out of stock

15

BRACKET, SEAT SUPPORT | MODEL P This part replaces 45220-20A01.

45220-47H00

1
Out of stock

16

CABLE, SEAT LOCK

45280-48B10

1
Out of stock

17

SCREW This part replaces 02122-06306.

02122-0630B

2
Out of stock

18

CLAMP

09407-14403

1
Out of stock
