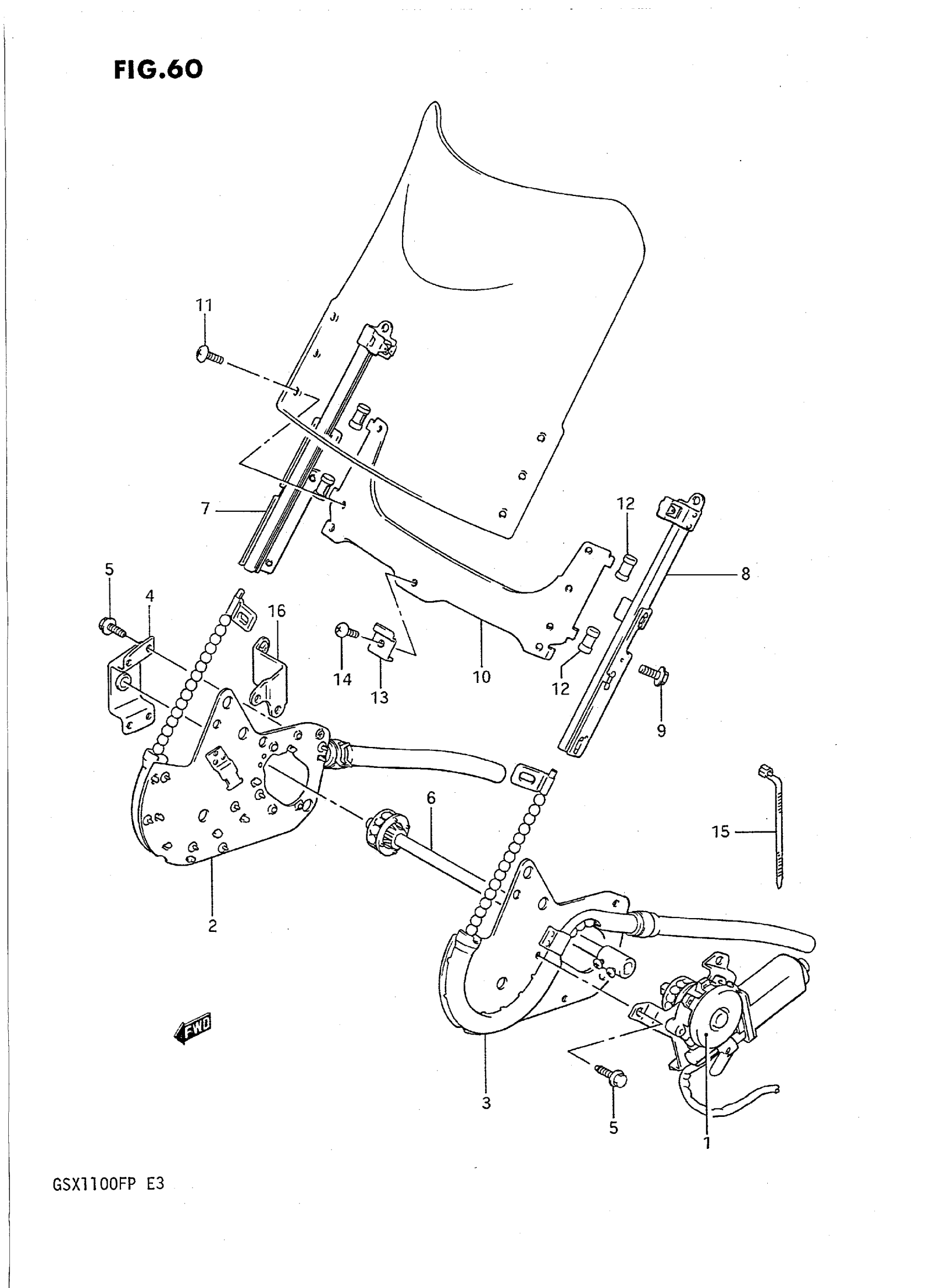

Find the part on the Power Screen diagram for your 1993 Suzuki GSX1100FP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX1100FP Power Screen Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 94600-48810.

94600-48811

1
Out of stock

2

FRAME SET, RH

94600-48820

1
Out of stock

3

FRAME SET, LH

94600-48860

1
Out of stock

4

METAL BRAKET SET

94600-48830

1
Out of stock

5

BOLT This part replaces 01517-05106.

01550-0510A

10
Out of stock

6

SHAFT SET

94600-48840

1
Out of stock

7

GUIDE PIPE SET, RH

94600-48850

1
Out of stock

8

GUIDE PIPE SET, LH

94600-48870

1
Out of stock

9

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

16
Out of stock

10

BRACKET, SCREEN

94621-48B00

1
Out of stock

11

.SCREW This part replaces 02142-05124.

02142-0512A

6
Out of stock

12

RUBBER, SLIDE

94622-48B00

4
Out of stock

13

BRACKET, SUPPORT

94623-48B00

1
Out of stock

14

SCREW, THROTTLE This part replaces 02112-05105.

02112-0510A

1
Out of stock

15

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

16

BRACKET | CALIFORNIA ONLY

94626-48B00

1
Out of stock
