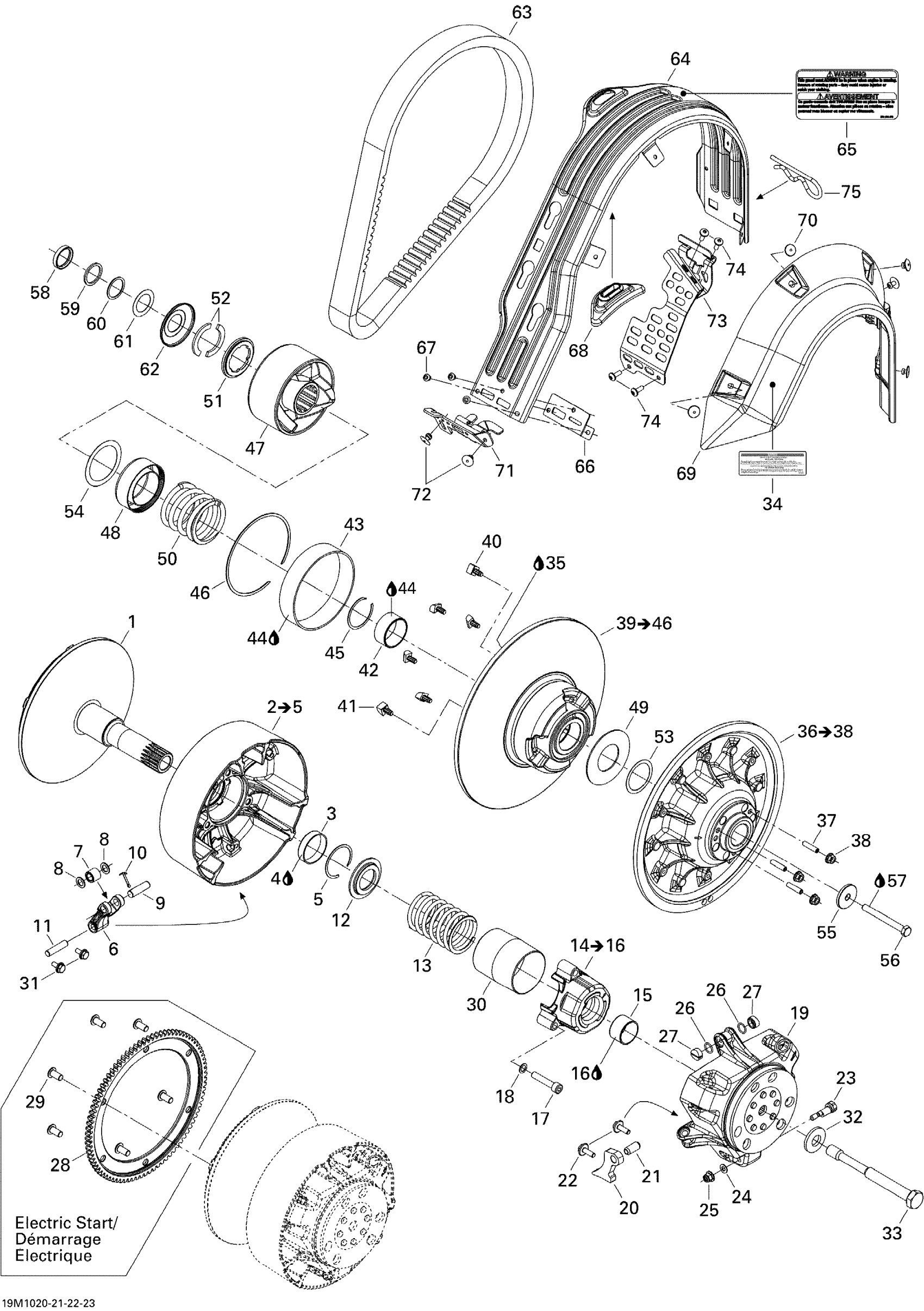

Ski-Doo GSX Sport 550F, 2010 Pulley System Diagram

Fixed Flange Ass'y

417222937

$226.12

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

Bushing

417222758

$20.74

Adhesive LOCTITE 680 - Call your local BRP dealership This part replaces 293800118.

219702967

Unavailable

Circlip

293370037

$3.02

Lever | Includes 10f to 10g

417222671

$32.28

Roller

417222947

$19.97

Stopper Washer

417004302

$15.99

Pin

417004308

Unavailable

Cotter Pin

250400060

$1.60

Lever Axle

417223164

$4.25

Spring Seat

417222312

$8.28

CLUTCH SPRING, YELLOW/YELLOW - Call your local BRP dealership

414748600

Unavailable

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

Bushing

417009204

$16.12

Loctite 609, 10 ml

413703100

$24.58

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

Lock Washer 8 mm

250200009

Unavailable

Governor Cup

417222213

Unavailable

Ramp 600

417222444

$32.28

Spring Pin M10 X 22

250400050

$2.38

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

CALIBRATION SCREW - Call your local BRP dealership

417223197

Unavailable

Washer

417005600

$3.86

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

O-Ring

732401030

$0.95

Slider Shoe

417222992

Unavailable

Ring Gear_Starter This part replaces 417223738.

417225070

Unavailable

Torx Screw M8 X 16

250000751

$4.64

Guard

417009205

$16.89

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

Spring Washer 14 mm

250200006

Unavailable

Drive Pulley Bolt

417120000

$63.82

DECAL, NOTICE, DRIVE PULLEY BOLT - Call your local BRP dealership

516003708

Unavailable

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

FIXED FLANGE ASS'Y - Call your local BRP dealership | Includes 36 to 38

417127022

Unavailable

SOCKET SET SCREW M6 X 25 - Call your local BRP dealership

206262590

Unavailable

Hex. Flange Nut M6

233061414

Unavailable

SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46

417126909

Unavailable

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

Unavailable

BUSHING - Call your local BRP dealership

417126901

Unavailable

BUSHING - Call your local BRP dealership

417126902

Unavailable

Loctite, Black Max, 3 ml

413408300

$24.58

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

CIRCLIP - Call your local BRP dealership

417126878

Unavailable

CAM ASS'Y - Call your local BRP dealership

417126445

Unavailable

GUARD - Call your local BRP dealership

417126381

Unavailable

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

Spring

417127061

$45.35

SPACER - Call your local BRP dealership

417126733

Unavailable

HALF KEY - Call your local BRP dealership

417126734

Unavailable

SHIM - Call your local BRP dealership

504112300

Unavailable

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

Strength Washer

517302322

$11.09

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

Loctite 243, 10 ml

293800060

$20.77

Spacer

504149100

$11.20

Spacer

417300252

$5.17

Spacer

417300265

$2.12

Shim

504112000

$6.05

PROTECTOR - Call your local BRP dealership

417300238

Unavailable

Drive Belt

417300367

Unavailable

Belt Guard

417300382

$85.35

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

Reinforcement

417300380

$5.17

Avex Rivet

390909200

Unavailable

Guide

417300381

$9.23

Side Protector

417300356

$13.25

Pop Rivet 3/16"

293150103

Unavailable

Front Belt Guard Bracket

417300386

$14.15

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

Torx Screw M5 X 14

250000742

$1.20

Hair Pin

114045200

Unavailable
