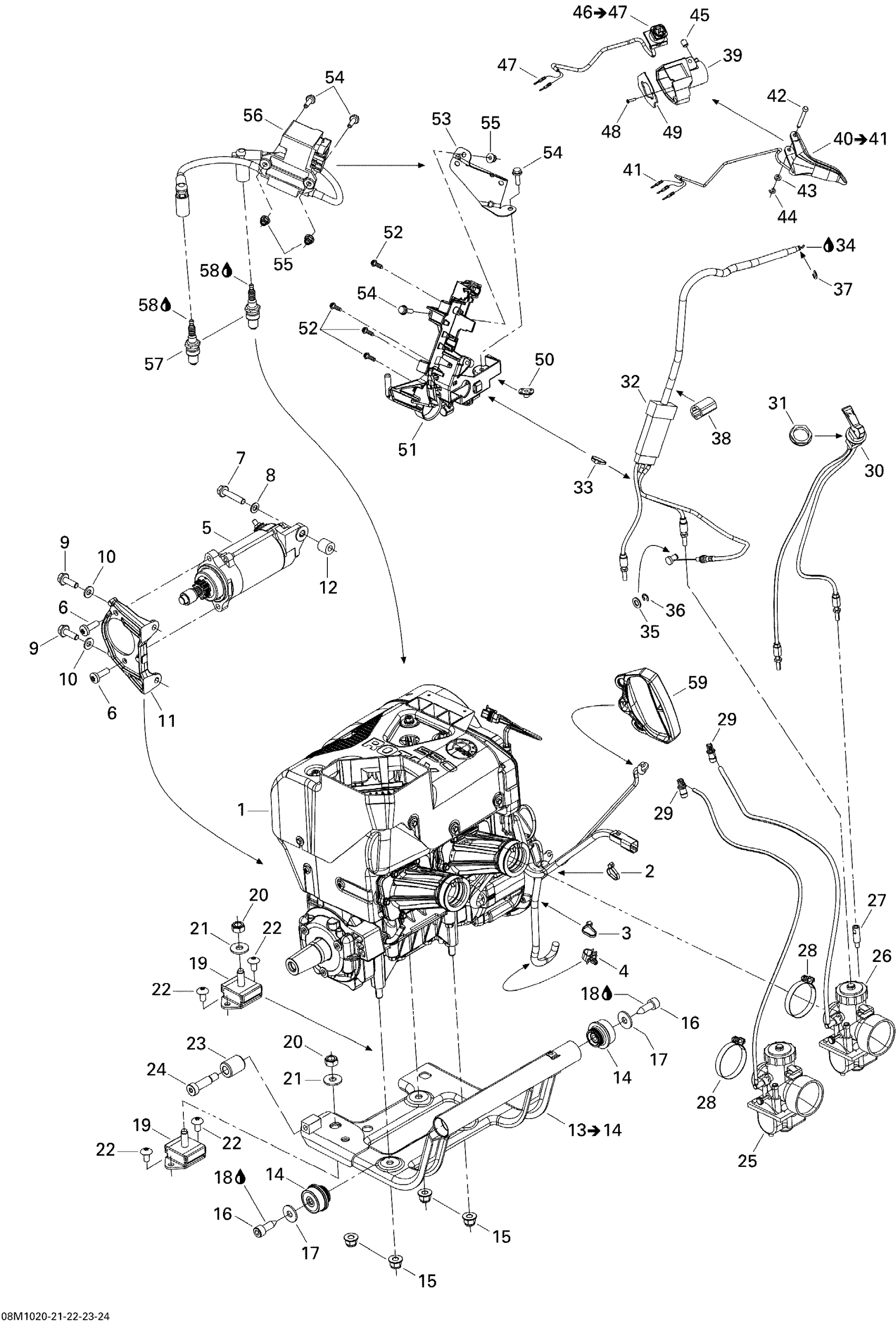

Ski-Doo GSX Sport 550F, 2010 Engine Diagram

#

Description
Price

1

Engine 552

400509780

Unavailable

2

Tie-Rap 180 mm

414115200

$0.10

3

Tie-Rap 180 mm

414115200

$0.10

4

Tie Rap Mount (screwable)

515176795

$4.96

5

Starter

515178473

$319.49

6

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

7

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.22

8

Flat Washer With Teflon 8 mm

250200008

$3.58

9

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

10

Conical Spring Washer M8

234281474

$1.43

11

Support

512060656

$55.19

12

Spacer

515176597

$13.18

13

Engine Support Ass'y | Includes 1000 to 1000a

512060637

$189.99

14

Rubber Mount

512059691

$43.25

15

Hex. Flange Elastic Nut M10

233201414

$1.45

16

Screw M10 X 30

250000094

$22.36

17

Flat Washer M10 | 4X4

250200014

$1.34

18

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

19

Rubber Mount

512060564

$38.78

20

Elastic Stop Nut M10

232500416

$1.79

21

Flat Washer M10 | 4X4

250200014

$1.34

22

Torx Truss Screw M8 X 16

250000746

$3.19

23

Stopper

512060395

$17.13

24

Socket Head Screw, Scotch Grip

250000463

$7.09

25

CARBURETOR VM30-217, PTO - Call your local BRP dealership

403138810

Unavailable

26

Carburetor VM30-216, MAG

403138801

Unavailable

27

EXTENSION - Call your local BRP dealership

512060562

Unavailable

28

Gemi Clamp | Not Shown

512059834

$10.21

29

Male Connector

414814100

$2.12

30

Choke Cable

512060674

$44.75

31

Plastic Nut

512060671

$0.96

32

Throttle Cable

512060891

$106.69

33

Tie Wrap 142 mm

293750002

$1.01

34

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

35

Flat Washer 8 mm, Nylon

234081100

$1.15

36

Circlip

414753500

$0.67

37

Circlip

414274500

$0.85

38

Protector

512060313

$9.03

39

Throttle Housing

512060603

$10.25

40

Handle Ass'y | Includes 3820 to 3820a

512061251

$87.28

41

Male Terminal

515175232

$1.45

42

Lever Pin

414438700

$10.81

43

Flat Washer M5, Stainless

234051600

$0.73

44

Circlip

293370050

$0.45

45

Socket Set Screw M8 X 10

414440800

$3.88

46

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

47

Male Terminal

515175232

$1.45

48

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

49

Plate

512060390

$9.03

50

Nut Welded, M6

293100003

$7.25

51

Coils Support

512060924

$9.03

52

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

53

Coils Support

512060460

$17.88

54

Hex. Flange Screw M6 X 20

207662044

$1.91

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

56

Calibrated Module

512060324

$569.99

57

Spark Plug NGK BR9ECS-5

512059552

$11.13

58

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

59

Starter Grip

512060136

$14.10
