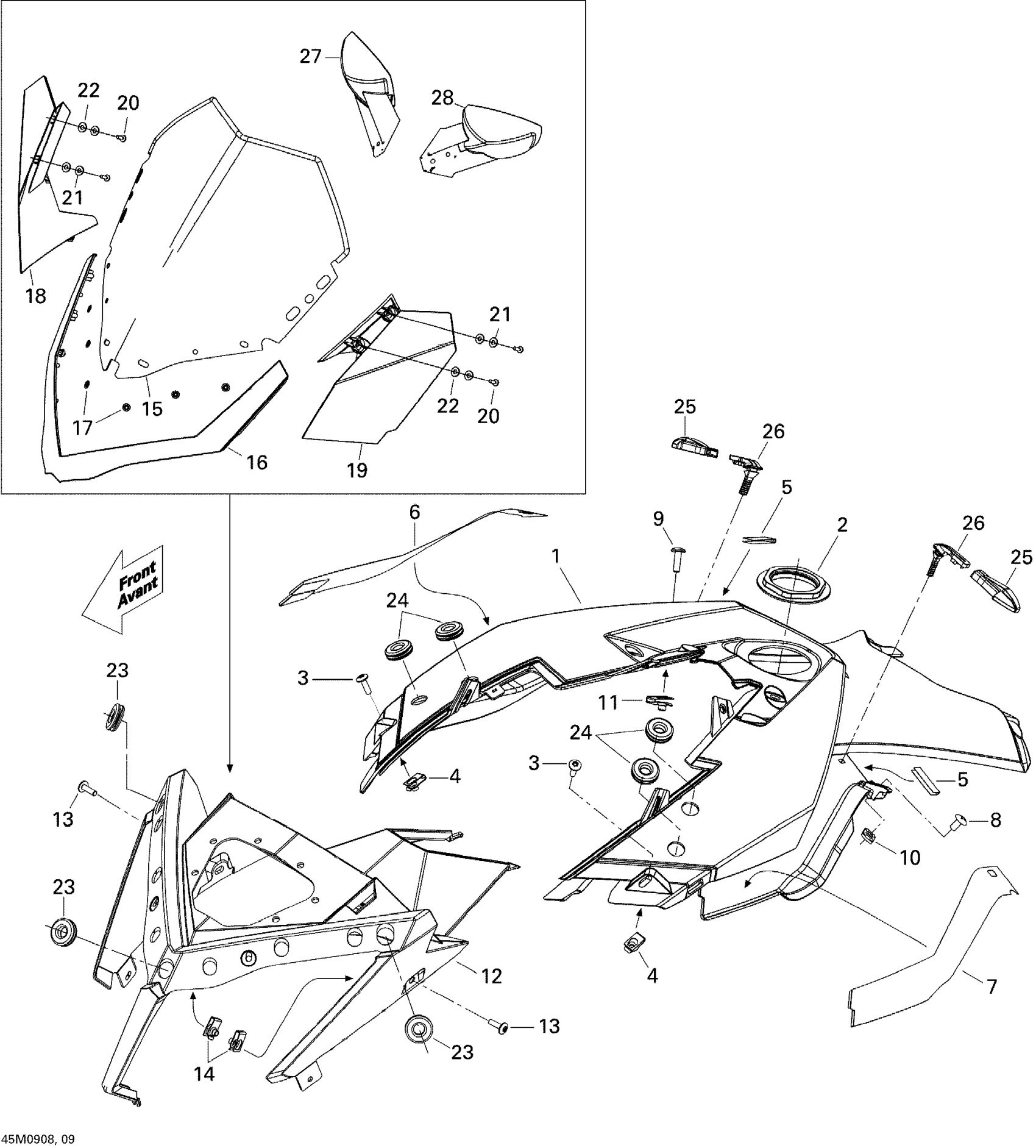

Ski-Doo GSX Sport 500SS, 2009 Windshield And Console Diagram

#

Description
Price

1

DEEP BLACK CONSOLE - Call your local BRP dealership This part replaces 517303925.

517303921

Unavailable

2

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

3

Torx Screw M6 X 20

250000722

$1.34

4

Panel Nut M6 X 1.0

250100198

$1.73

5

Console Decal

517304105

$10.42

6

RH Decal

517304103

$16.39

7

LH Decal

517304104

$16.39

8

Torx Truss Screw M6 X 12

250000767

$1.66

9

Torx Screw M6 X 20

250000722

$1.34

10

NUT-WELD THIN M6 - Call your local BRP dealership

250100106

Unavailable

11

Panel Nut M6 X 1.0

250100198

$1.73

12

Gauge Support

517304575

$63.40

13

Torx Screw M6 X 20

250000722

$1.34

14

Panel Nut M6 X 1.0

250100198

$1.73

15

HIGH WINDSHIELD - Call your local BRP dealership

517303758

Unavailable

16

Windshield Support

517303607

$32.06

17

Push Nut

732610072

$1.72

18

RH Air Deflector

517303791

$39.52

19

LH Air Deflector

517303792

$39.52

20

Torx Screw K50 X 16

250000720

$1.39

21

Washer M5

250200025

$0.61

22

Rubber Washer 5 mm

250200024

$1.77

23

Grommet

517303756

$3.15

24

Grommet

517303756

$3.15

25

End Piece Latch

517304075

$4.30

26

Panel Latch

517303981

$9.49

27

RH Mirror Ass'y

517305100

$49.97

28

LH Mirror Ass'y

517305101

$49.97
