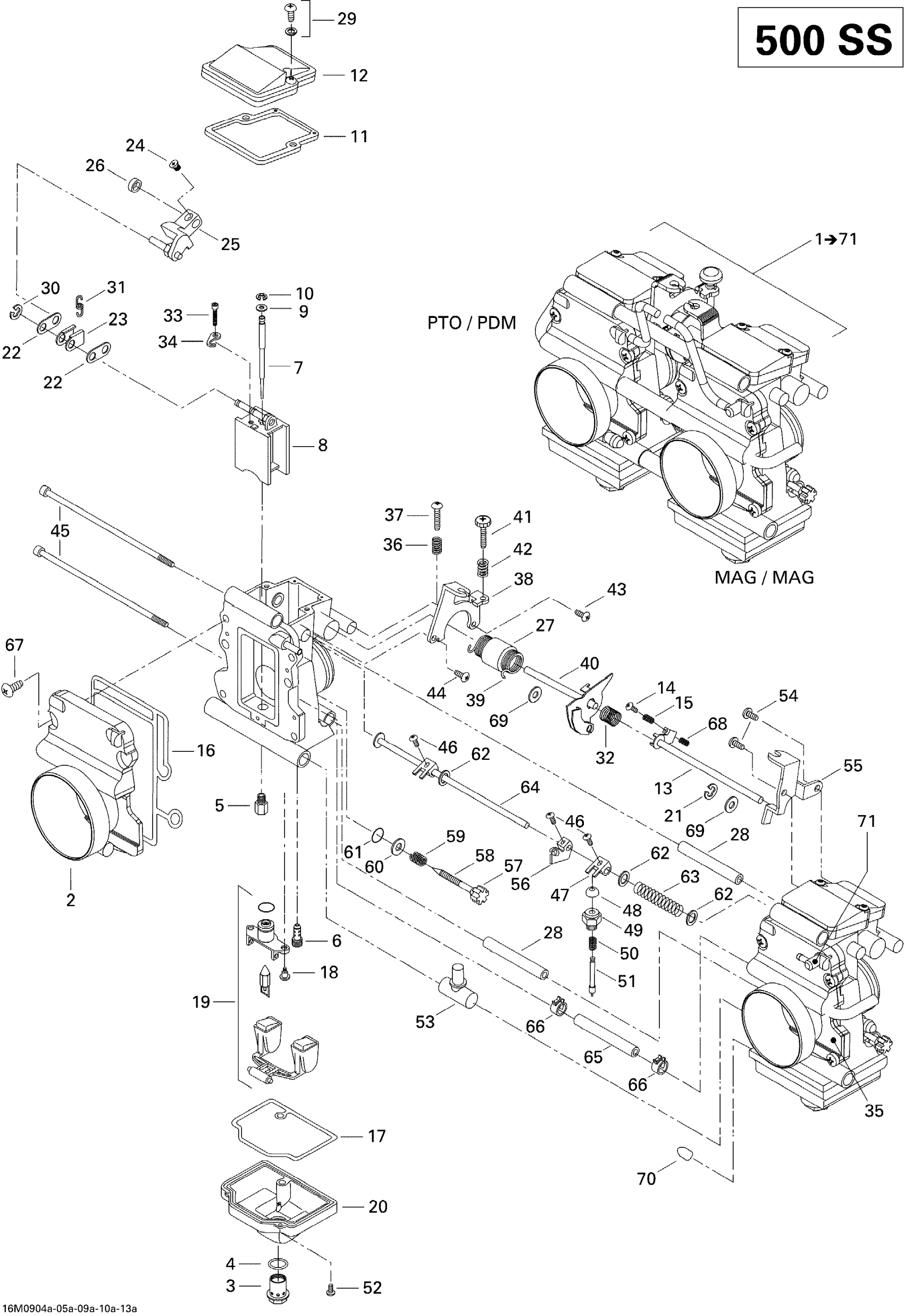

Ski-Doo GSX Sport 500SS, 2009 Carburetor 500SS Diagram

#

Description
Price

1

CARBURATOR KIT, TM40-B394 - Call your local BRP dealership

403138804

Unavailable

2

Funnel, PTO

404162093

$239.99

3

Drain Screw

404162094

$30.57

4

O-Ring

404161945

$7.90

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Pilot Jet 17.5

404161944

$5.19

7

NEEDLE JET J8-9CEY01-58 - Call your local BRP dealership

404162119

Unavailable

8

Valve Piston 2.0

404162020

$191.01

9

Packing

404137600

$6.49

10

E-Ring

404152200

$4.24

11

Gasket

404161940

$25.34

12

COVER - Call your local BRP dealership

404161939

$37.28

13

Throttle Shaft

404162006

$209.67

14

Screw

404136700

$12.18

15

Adjustment Spring

404135300

$10.13

16

O-Ring

404161935

$25.34

17

O-Ring

404161961

$16.39

18

Screw

404161933

$10.99

19

Float

404161932

$124.60

20

Body Float Ass'y

404162095

$74.60

21

E-Ring

707200027

$5.29

22

Plate

404162007

$15.64

23

Holder

404162008

$15.64

24

Screw

404161928

$11.85

25

Lever

404162009

$100.72

26

Ring

404161926

$11.85

27

Ring

404161925

Unavailable

28

RING - Call your local BRP dealership

404161924

Unavailable

29

Screw

404161923

$7.34

30

E-Ring

404138300

$11.49

31

Spring

404162010

$15.64

32

Spring

404162011

$11.85

33

Screw

404161920

$11.85

34

Plate

404161919

$11.85

35

Funnel, MAG

404162096

$238.03

36

Spring

404161918

Unavailable

37

Screw

404161917

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Spring

404162014

$32.06

40

Throttle Shaft

404162015

$209.67

41

Adjustment Screw

404137500

$17.88

42

Spring

404161913

$11.85

43

Screw

404161912

$6.49

44

Screw

404136100

$6.49

45

Screw

404161911

Unavailable

46

Screw

404161910

$11.85

47

Lever

404161909

Unavailable

48

Cap

404140000

$11.49

49

Guide Holder

404136900

$16.39

50

Spring

404161908

$12.99

51

Plunger Ass'y

404161907

$32.81

52

Screw

404161906

$6.49

53

Nipple

404161905

$48.48

54

Screw

404161903

$3.15

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Starter Lever

404161901

$35.79

57

Cap

404161899

$11.51

58

Adjuster

404161898

$24.60

59

Spring

404161897

$6.07

60

Washer

404161896

$6.19

61

Packing

404161895

$7.90

62

Packing

404161894

$11.85

63

Spring

404103500

$8.00

64

Not Available As Spare Part - Friction Washer

Unavailable

65

Hose | Grand Touring 500.

404161956

$17.88

66

Clip | Grand Touring 500.

404161957

$15.64

67

Screw

404138800

$6.19

68

Spring

404135400

$8.42

69

Packing

270500118

$8.37

70

Cap

270500095

$7.30

71

Elbow 90°

404128800

$32.81
