Description

Price

1

LH Housing

515177022

Unavailable

2

Start/RER Button

515176088

$18.43

3

Switch Housing Plate

515175926

Unavailable

4

Torx Screw #8-18

250000263

$1.02

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

6

Male Terminal

515175232

$1.49

7

Kill Switch Support

515176825

$8.60

8

Torx Screw #8-18

250000263

$1.02

9

Wiring Harness | Includes 9 to 21

515176509

Unavailable

10

Male Terminal

515175232

$1.49

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Female Terminal

515175231

Unavailable

13

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

14

Female Terminal Housing, 8 Circuits

515175819

$7.46

16

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

17

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

18

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

19

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

20

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

21

Female Terminal Housing, 6 Circuits

515175543

$8.57

22

Female Terminal

515175941

$2.48

23

Male Terminal Housing, 8 Circuits

515175817

Unavailable

24

Male Terminal Housing, 6 Circuits

515175662

Unavailable

25

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

31

Tie-Rap 180 mm

414115200

$0.09

31

Tie Wrap 368 mm

293750008

$0.85

31

Tie Wrap 142 mm

293750002

Unavailable

31

Tie Wrap 94 mm | 4X4

293750001

$0.83

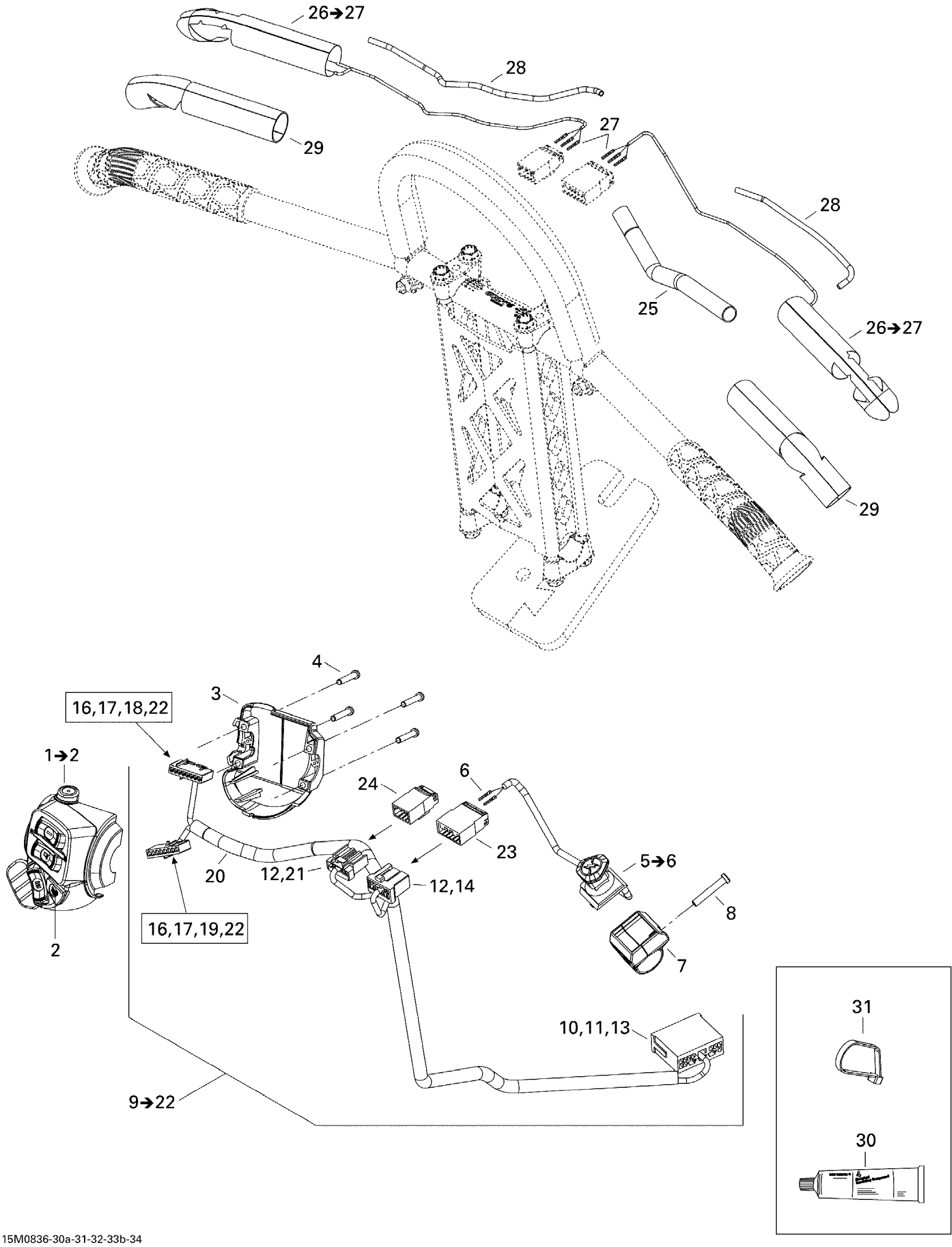

Ski-Doo GSX SPORT 500SS, 2008 Steering Wiring Harness Diagram

LH Housing

Switch Housing Plate

Wiring Harness | Includes 9 to 21

MALE TERMINAL - Call your local BRP dealership

Female Terminal

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

Male Terminal Housing, 8 Circuits

Male Terminal Housing, 6 Circuits

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Was 293550004 Dielectric Grease, 150 g

Tie Wrap 142 mm
