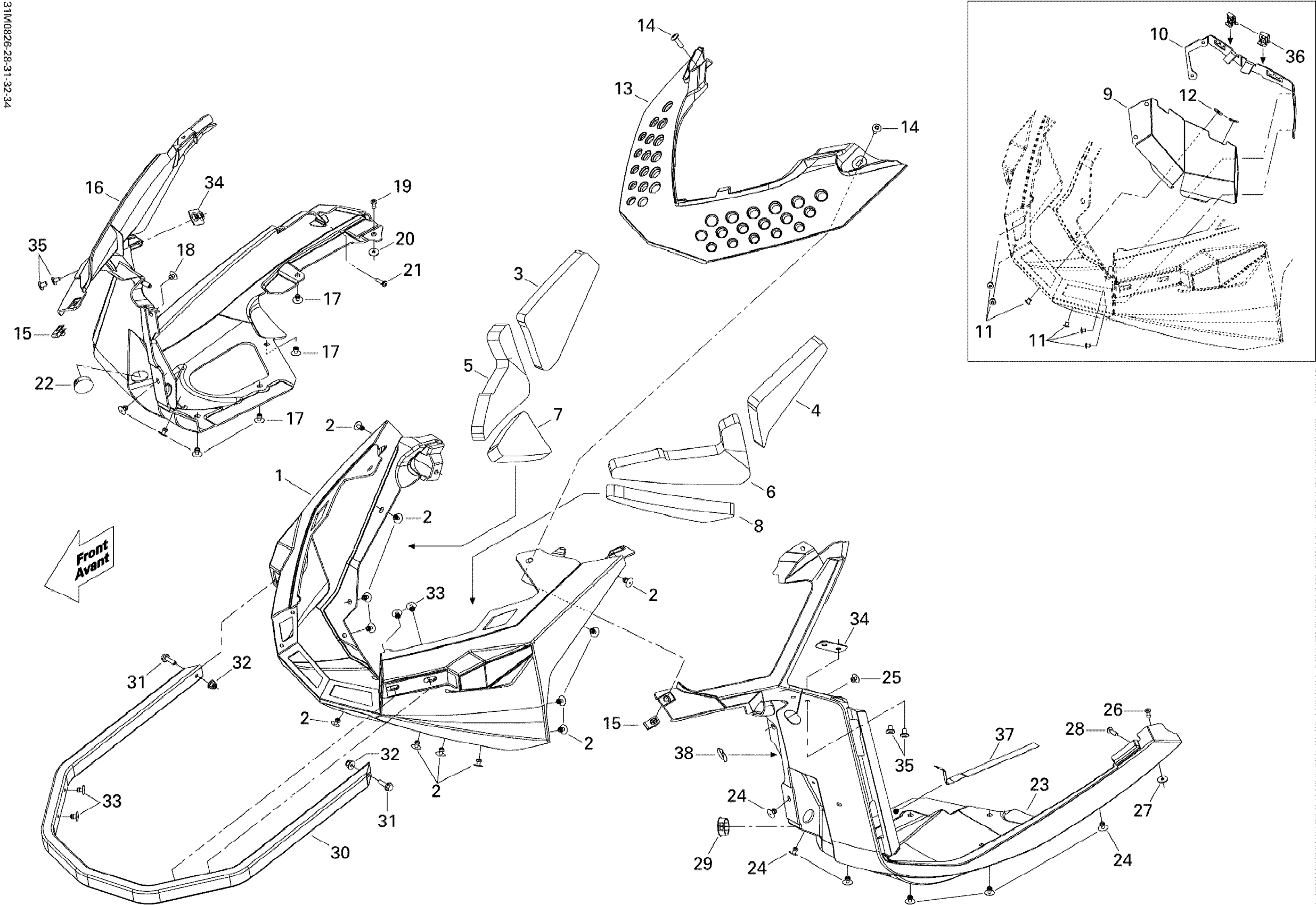

Ski-Doo GSX SPORT 500SS, 2008 Bottom Pan Diagram

#

Description
Price

1

Black, Front Bottom Pan

502006971

$106.12

2

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

3

RH Foam Upper

502007210

$13.85

4

LH Foam Upper

502007211

$15.03

5

RH Middle Foam

502007212

$18.43

6

LH Middle Foam

502007213

$18.43

7

RH Lower Foam

502007214

$13.85

8

LH Lower Foam

502007215

$13.85

9

BOTTOM PAN GRILL - Call your local BRP dealership | 600HO ETEC

502006942

Unavailable

10

GRILL BRACKET - Call your local BRP dealership | 600HO ETEC

502006943

$10.37

11

Rivet 3/16"

293150102

$0.71

12

Washer

517124300

Unavailable

13

Deep Black Bottom Pan Cap

502007068

$65.35

14

Torx Screw M6 X 20

250000722

Unavailable

15

Panel Nut M6 X 1.0

250100198

Unavailable

16

Black, RH Bottom Pan

502006831

$72.28

17

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

18

Pop Rivet 3/16"

293150103

Unavailable

19

Pop Rivet 3/16"

390402300

Unavailable

20

Washer

517124300

Unavailable

21

Torx Screw K50 X 16

250000720

$1.39

22

Black, Nylon Cap

414916600

$4.32

23

Deep Black LH Bottom Pan

502006832

$52.28

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

25

Pop Rivet 3/16"

293150103

Unavailable

26

Pop Rivet 3/16"

390402300

Unavailable

27

Washer

517124300

Unavailable

28

Torx Screw K50 X 16

250000720

$1.39

29

Black, Nylon Cap

414916600

$4.32

30

Black Front Bumper

502007116

$76.89

31

Hex. Flange Screw M6 X 20

207662044

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

34

Plate

502006949

Unavailable

35

Torx-truss M/s M6 X 10

250000995

Unavailable

36

Edge Clip

517302785

Unavailable

37

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

38

Adhesive Patch

518325560

Unavailable
