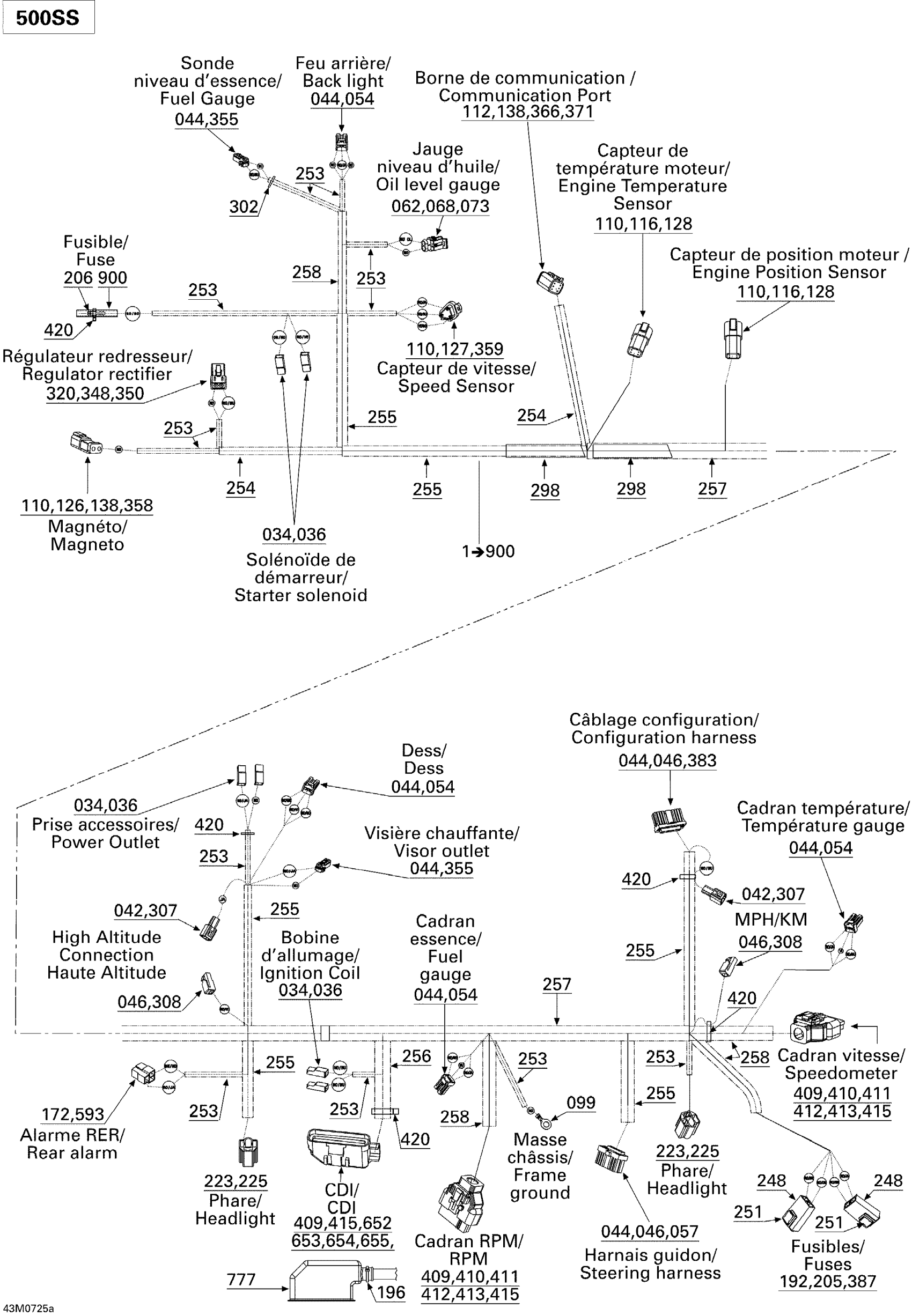

Ski-Doo GSX Sport 500 SS, 2007 Electrical Harness 500SS Diagram
#
1
FRAME WIRING HARNESS - Call your local BRP dealership | Includes 1 to 900
515176426
Unavailable
42
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
44
Female Terminal
515175231
Unavailable
57
Female Terminal Housing, 13 Circuits
515175350
Unavailable
62
Female Terminal
278001014
Unavailable
73
Wire Seal
278001013
Unavailable
112
Female Terminal
278000632
Unavailable
138
Sealing Cap
293000052
Unavailable
172
Female Terminal
561503100
Unavailable
196
Tie Wrap 142 mm
293750002
Unavailable
206
Female Terminal
409004200
Unavailable
223
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
225
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
248
Fuse Holder
409004000
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
258
Tubing 10 MM 1000MM Long
219704407
Unavailable
298
Tape
293740005
Unavailable
307
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175509
Unavailable
308
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
515175510
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
359
Male Housing
515175666
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
383
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
515175719
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
593
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
515176069
Unavailable
900
Hose
415079200
Unavailable
