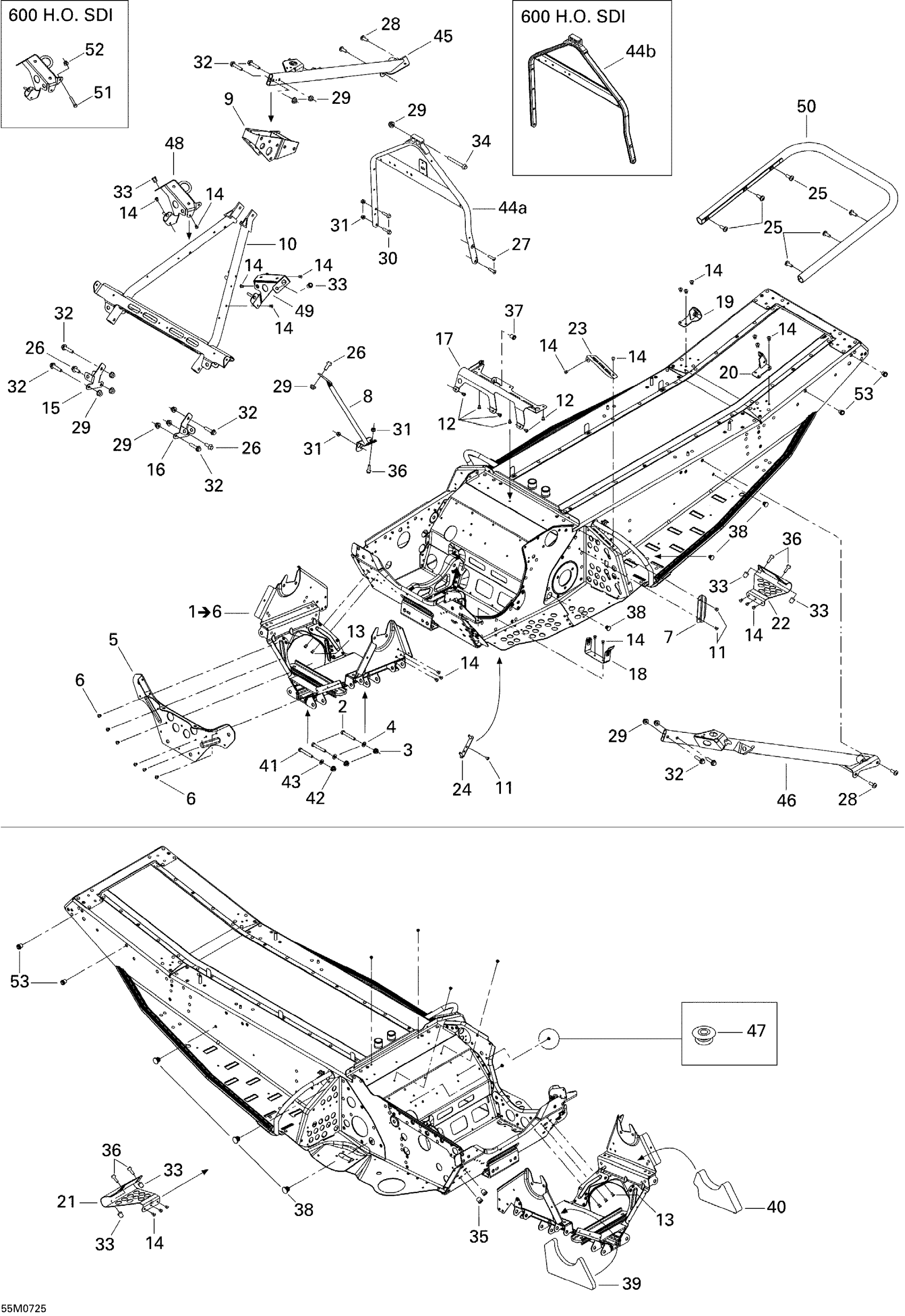

Ski-Doo GSX Sport 500 SS, 2007 Frame and Components 500 SS Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

Unavailable

2

Hex. Screw M8 X 55

207085544

$1.62

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Flat Washer 8 mm

234081410

Unavailable

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Avex Rivet

390909100

$0.29

7

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

8

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

9

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

10

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

11

Pop Rivet 3/16"

390402200

$0.26

12

Pop Rivet 3/16"

390402400

Unavailable

13

Avex Rivet

390909100

$0.29

14

Avex Rivet

390909200

Unavailable

15

RH SHOCK BRACKET - Call your local BRP dealership

518322461

$8.43

16

LH SHOCK BRACKET - Call your local BRP dealership

518322462

$8.43

17

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

18

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

19

RH Console Support

518323535

Unavailable

20

LH Console Support

518323536

Unavailable

21

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

22

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

23

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

24

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

25

Hex. Screw M8 X 20

236282084

Unavailable

26

Hex. Flange Screw M8 X 20

207682044

Unavailable

27

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

28

Pan Head Torx Screw M8 X 12

250000887

$1.56

29

Hex. Flange Elastic Nut M8

233281414

Unavailable

30

Hex. Flange Screw M6 X 25

207662544

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

Hex. Flange Screw M8 X 35

207683544

$1.39

33

Insert

293450275

Unavailable

34

Hex. Flange Screw M8 X 70

207687044

Unavailable

35

Insert

293450166

Unavailable

36

Hex. Flange Screw M6 X 20

207662044

Unavailable

37

Threaded Insert M6 X 1.0

250100242

Unavailable

38

Panel Fastener

518321954

Unavailable

39

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

40

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

41

Hex. Screw M8 X 55

207085544

$1.62

42

Hex. Flange Elastic Nut M8

233281414

Unavailable

43

Flat Washer 8 mm

234081410

Unavailable

44a

HANDLE SUPPORT - Call your local BRP dealership

518323979

Unavailable

44b

Not Available As Spare Parts

XXX

Unavailable

45

RH Member

518323352

Unavailable

46

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

49

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

50

REAR BUMPER - Call your local BRP dealership

518325216

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

53

Insert

293450275

Unavailable
