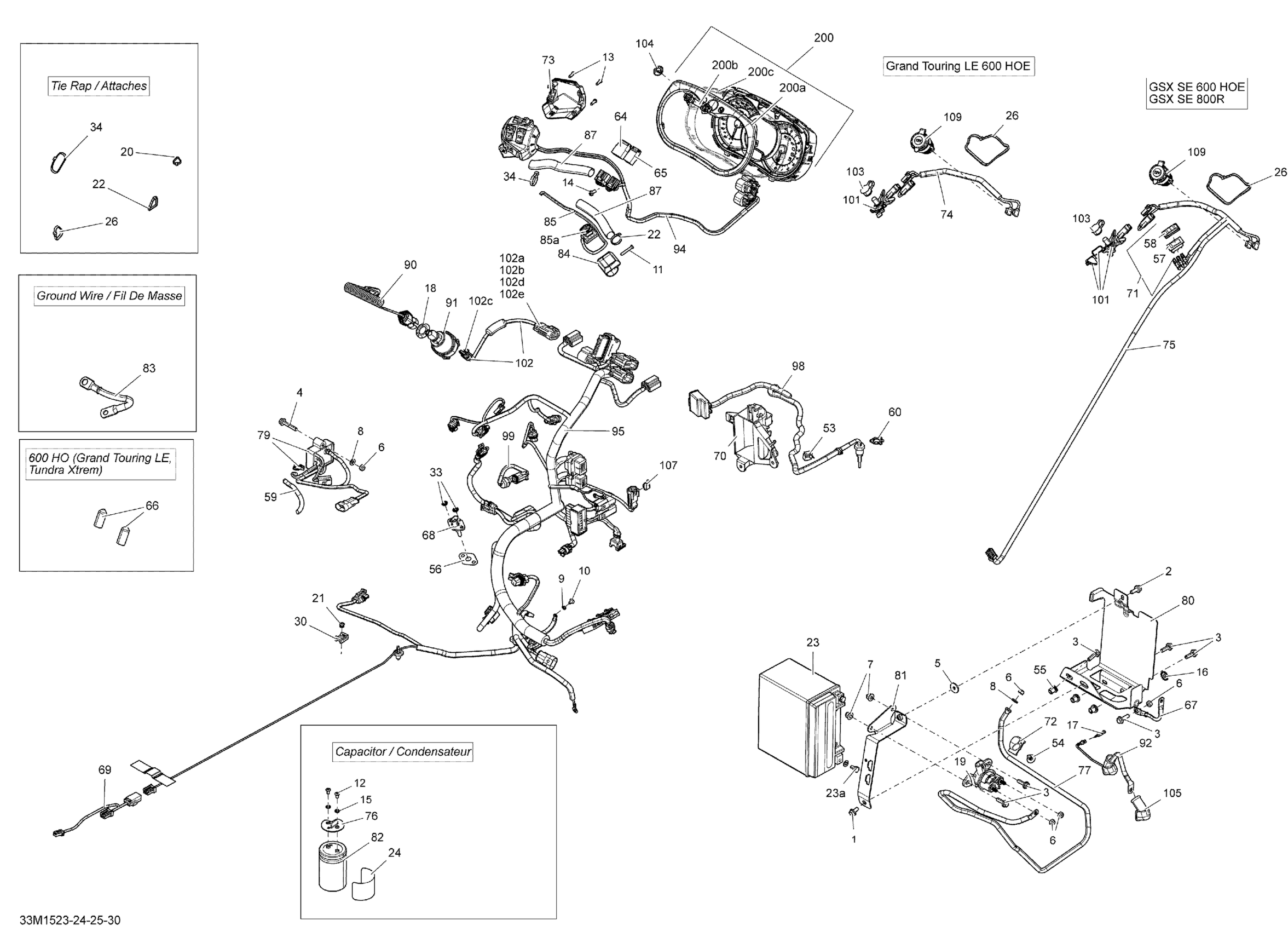

Ski-Doo GSX SE 800RETEC XR137, 2015 Electrical System _33M1525 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12

207661244

Unavailable

2

Hex. Flange Screw M6 X 16

207661644

Unavailable

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

4

Hex. Flange Screw M6 X 35

207663544

$0.74

5

Flat Washer

224061201

Unavailable

6

Elastic Stop Nut M6

232561434

$1.55

7

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

8

Flat Washer 6 mm

234061410

Unavailable

9

Lock Washer 4 mm

234141601

Unavailable

10

Torx Screw M4 X 8

250000127

$1.09

11

Torx Screw #8-18

250000263

$1.02

12

Socket Head Screw M10 X 32

250000462

$2.06

13

Torx Screw

250000671

Unavailable

14

Pan Screw Forming, 7500C

250000690

Unavailable

15

Lock washer | Quest XT 650.

250200026

$1.83

16

Lock Washer Serrated M6

250200041

Unavailable

17

Fuse, 25 Amperes

278001443

Unavailable

18

Safety Nut (DESS Switch)

278002963

$2.72

19

Starter Relay

278003012

Unavailable

20

Tie Wrap 94 mm | 4X4

293750001

$0.83

21

Avex Rivet

390909200

Unavailable

22

Tie Wrap 142 mm

293750002

Unavailable

23

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

23a

Battery Bolt Kit

250000282

$2.95

24

Capacitor Decal

516006206

$8.49

26

Tie Wrap 368 mm

293750008

$0.85

30

Tie Rap Mount (screwable)

515176795

$5.11

33

Push Nut

389804300

$0.43

34

Tie-Rap 180 mm

414115200

$0.09

53

Clip

414227300

$1.45

54

Black, Dart

414644300

$0.78

55

Insert

293450275

Unavailable

56

Seal

508000769

$5.22

57

Rocker Switch

510004413

Unavailable

58

Switch Protector

510004414

$7.37

59

Tubing 6 Mm 3000Mm Long

219704425

$13.14

60

Tab Lock

514055100

$6.28

64

Male Terminal Housing, 6 Circuits

515175662

Unavailable

65

Male Terminal Housing, 4 Circuits

515175846

$8.57

66

Not Available As Spare Parts

XXX

Unavailable

67

Ground Wire

515176358

Unavailable

68

Air Temperature Sensor

515176366

$18.43

69

Not Available As Spare Parts

XXX

Unavailable

70

Capacitor Support

515176607

$17.66

71

ROCKER SWITCH ASS'Y - Call your local BRP dealership | Includes 950 to 950,002

515176844

$8.55

72

Clip

515177066

$4.00

73

Housing Plate

515177147

$17.66

74

Not Available As Spare Parts

XXX

Unavailable

75

SEAT HARNESS - Call your local BRP dealership

515177189

$42.99

76

Cap

515177193

$4.43

77

Battery/Starter Wire

515177208

Unavailable

79

Compressor Module

515177234

$414.99

80

Battery Support

515177264

Unavailable

81

Battery Strip

515177266

Unavailable

82

Capacitor

515177272

Unavailable

83

Ground Wire

515177289

Unavailable

84

Emergency Stop Switch Support

515177310

$8.60

85

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

85a

Male Terminal

515175232

$1.49

87

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

90

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

Unavailable

91

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

92

Fuse Battery Wire

515177576

Unavailable

94

LH Switch Housing

515178197

$259.20

95

Main Harness | 800R ETEC

515177747

Unavailable

98

Kit Module *Egts Module Kit Sing This part replaces 515177759.

415130000

Unavailable

99

Temperature Sensor This part replaces 420664508.

420664509

Unavailable

101

Visor Harness

515177837

$32.28

102

Wiring Harness

515177877

Unavailable

102a

Seal

710001233

Unavailable

102b

Terminal

710001224

$3.02

102c

Housing

710001161

$9.15

102d

Wire Seal

710001163

Unavailable

102e

Female Terminal

710001164

Unavailable

103

Cap

572103300

$9.65

104

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

105

Protector Cap

710000495

Unavailable

107

Not Available As Spare Parts

XXX

Unavailable

109

DC Outlet

710001248

$31.17

200

Speedometer | Includes 10 to 10c

515177910

$615.35

200a

Speedometer Button | XTP

415129355

Unavailable

200b

Gauge Ring

415129348

Unavailable

200c

Lens | XTP

415129349

Unavailable
