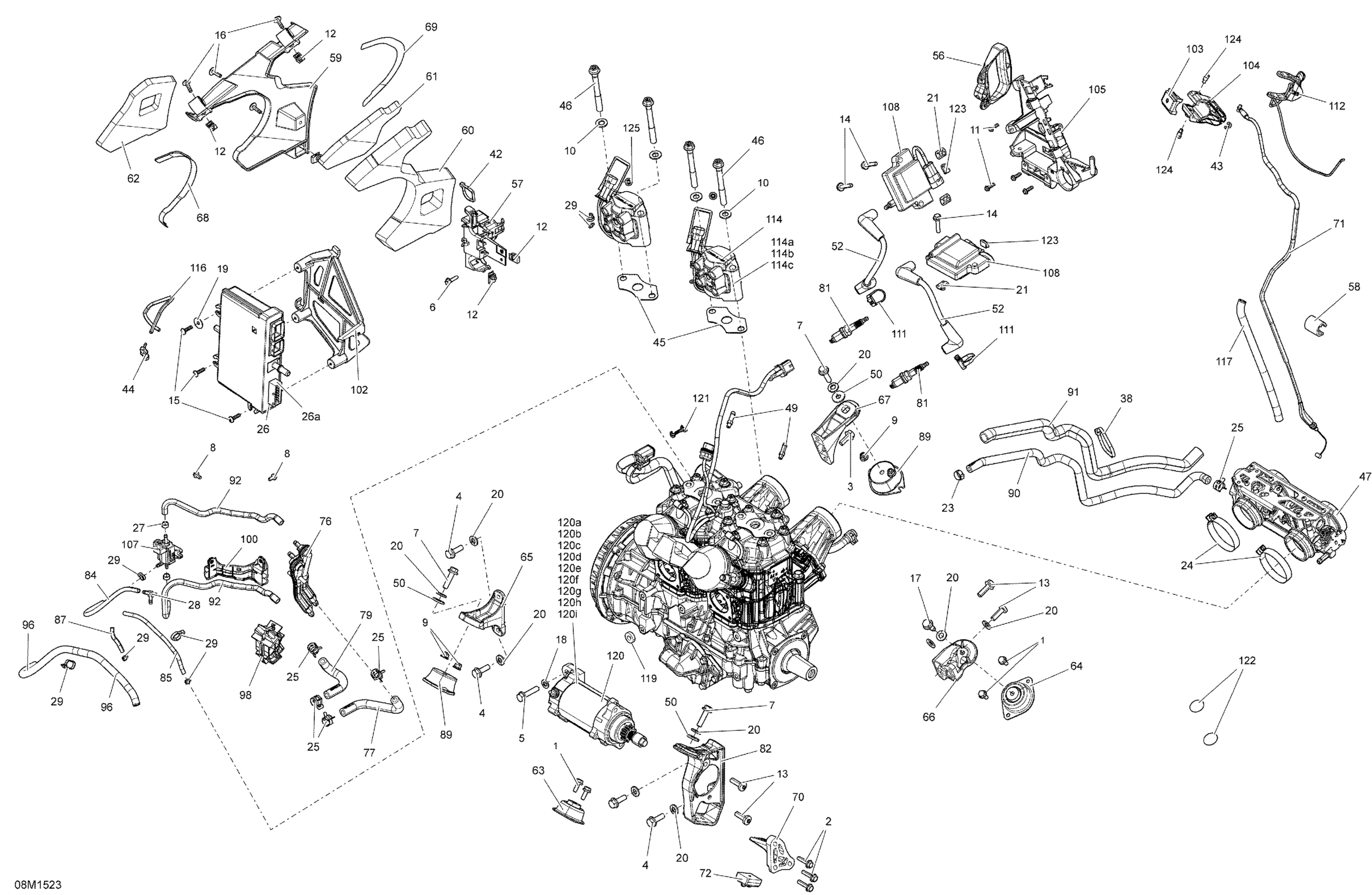

Ski-Doo GSX SE 600HOETEC XR137, 2015 Engine _08M1523 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

2

Hex. Flange Screw M6 X 25

207562544

$1.39

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

5

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

6

Hex.Flange Screw M5 X 20

207652044

$1.56

7

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

8

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10

Flat Washer 10 mm

234001410

Unavailable

11

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

12

Panel Nut M5 X 0.8

250000958

Unavailable

13

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

14

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

15

Truss Head Torx Screw K50 X 20

250000297

$1.74

16

Torx Screw M5 X 20

250000528

Unavailable

17

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

18

Flat Washer With Teflon 8 mm

250200008

Unavailable

19

Flat Washer

250200040

$1.82

20

Conical Spring Washer M8

250200146

Unavailable

21

Nut Welded, M6

293100003

Unavailable

23

Oetiker Clamp

293650046

Unavailable

24

Gemi Clamp

293650158

$8.34

25

Norma Spring Clamp

293650214

$15.35

26

Calibrated Module

512060780

$769.99

26a

Calibrated Module

512060780

$769.99

27

Crimp Clamp

293650234

$5.22

28

T-Fitting

293710068

$6.59

29

Tie Wrap 94 mm | 4X4

293750001

$0.83

38

Tie Wrap 368 mm

293750008

$0.85

42

Tie-Rap 180 mm

414115200

$0.09

43

Circlip

414274500

Unavailable

44

Male Connector

414814100

$2.18

45

Gasket

420430930

$4.60

46

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

Unavailable

47

Throttle Body

420889201

$1,228.43

49

Hose Nipple

420924724

Unavailable

50

Yellow, Washer

503183200

Unavailable

52

Ignition Cable, 177mm long

512061126

$27.66

56

Starter Grip

512060136

$14.54

57

Solenoid Support

512060298

$12.52

58

Protector

512060313

$9.31

59

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

60

Interior Noise Foam

512060343

Unavailable

61

Upper Exterior Noise Foam

512060344

Unavailable

62

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

63

Rubber Mount

512060387

$42.28

64

Rubber Mount

512060448

$42.28

65

Front Support, MAG

512060469

$31.51

66

Rear Support, PTO

512060478

$29.97

67

Rear Support, MAG

512060559

$29.97

68

Heat Shield

512060574

Unavailable

69

Heat Shield

512060575

Unavailable

70

Stopper Support

512060576

$28.43

71

Throttle Cable

512060611

$106.12

72

Stopper

512060627

$9.31

76

Manifold

512060692

$43.05

77

RH Formed Hose

512060694

$7.80

79

LH Formed Hose

512060695

$7.80

81

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

Unavailable

82

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

84

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

85

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

87

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

89

Rubber Mount

512060729

$69.97

90

Formed Hose, Output

512060740

Unavailable

91

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

92

Polyurethane Hose 10000Mm Long

219704410

Unavailable

96

Was 409901700 Tubing (9 mm)

219704399

Unavailable

98

Manifold Support

512060769

$10.52

100

Hose Support

512060827

$2.06

102

Calibrated Module Support

512060858

$12.52

103

Upper Housing

512060859

Unavailable

104

Lower Housing

512060860

Unavailable

105

Ignition Coils Support

512060888

$10.52

107

Solenoid Valve

270600005

$39.62

108

Ignition Coil

512060953

$129.97

111

Clamp

512060993

Unavailable

112

Handle Ass'y

512061250

$117.66

114

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

Unavailable

114a

Crush Ring

415129497

Unavailable

114b

O-Ring

415129498

Unavailable

114c

O-Ring

415129499

Unavailable

116

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

117

Was 409901700 Tubing (9 mm)

219704399

Unavailable

119

Washer

515176500

Unavailable

120

Starter

515178473

$319.49

120a

Clutch Kit

415129441

$104.58

120b

Brush Kit

415129333

$58.43

120c

FLAT WASHER - Call your local BRP dealership

410204500

Unavailable

120d

Brush Kit

415129333

$58.43

120e

Brush Kit

410212100

$32.28

120f

Starter Bolt

415129341

$13.94

120g

O-Ring Kit This part replaces 278000696.

415129342

$12.88

120h

O-Ring Kit This part replaces 278000696.

415129342

$12.88

120i

O-Ring

278000695

$12.88

121

Locker

515177770

$2.14

122

Adhesive Patch

518325560

Unavailable

123

Clip

710000992

$4.00

124

Flange Screw

732601143

$4.02

125

Push Nut

732610072

Unavailable
