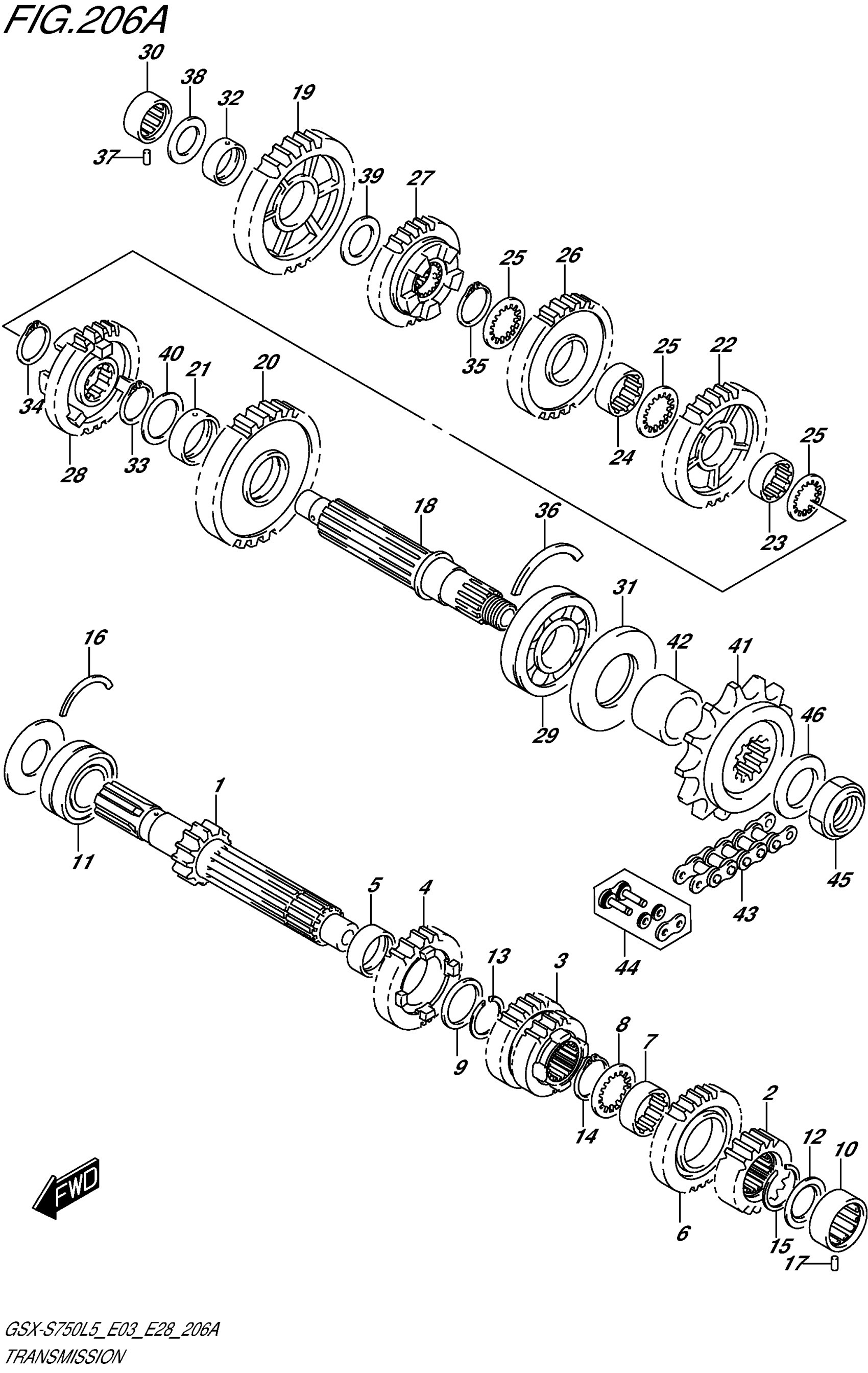

Suzuki GSX-S750L5 (2015) TRANSMISSION Diagram

SHAFT, COUNTER (NT:14)

24120-35F20

$318.22

GEAR,2ND DRIVE (NT:19)

24221-35F00

$131.95

GEAR,3RD & 4TH DRIVE This part replaces 24231-35F01.

24231-35F20

$158.10

GEAR, 5TH DRIVE (NT:23)

24251-35F21

$179.55

BUSH 5TH DRIVE GEAR

24252-35F00

$27.88

GEAR, 6TH DRIVE (NT:22)

24261-35F02

$176.20

BUSH, 6TH DRIVE GEAR

24262-35F10

$32.40

LOCK WASHER

09167-27003

$7.38

SHIM (27X36X2.5)

09181-27014

$6.87

BEARING (20X34X13.5) | LH

09263-20087

$54.53

BEARING (25X52X20.6) | RH

09267-25013

$115.55

OIL SEAL (20X31.2X2.7)

09285-20006

$5.88

CIRCLIP

09380-27006

$2.73

CIRCLIP

09380-27006

$2.73

CIRCLIP

09380-27004

$3.33

C RING | RH

09390-58001

$3.72

PIN (6X10) | LH

09261-06003

$1.49

SHAFT, DRIVE

24131-35F01

$352.00

GEAR,1ST DRIVEN (NT:39)

24311-35F20

$180.58

GEAR,2ND DRIVEN (NT:39)

24321-35F11

$152.71

BUSH, 2ND DRIVEN GEAR

24322-35F00

$23.28

GEAR,3RD DRIVEN (NT:37)

24331-35F10

$187.45

BUSH, 3RD DRIVEN GEAR

24332-35F00

$32.30

BUSH, 4TH DRIVEN GEAR

24332-35F00

$32.30

WASHER, 3RD & 4TH DRIVEN GEAR

24333-02F00

$6.62

GEAR,4TH DRIVEN (NT:29)

24341-35F10

$192.08

GEAR,5TH DRIVEN (NT:30)

24351-35F10

$187.45

GEAR, 6TH DRIVEN (NT:26)

24361-35F10

$190.30

BEARING (28X70X18) | LH

09262-28025

$163.68

BEARING (20X34X13.5) | RH

09263-20087

$54.53

OIL SEAL (34.8X70X6)

09283-36008

$19.21

BUSH (22X26X9)

09300-22008

$16.03

CIRCLIP

09380-27006

$2.73

CIRCLIP

09380-27006

$2.73

CIRCLIP

09380-27006

$2.73

C RING | LH

09390-70001

$10.62

PIN (6X10) | RH

09261-06003

$1.49

SHIM (20X34X1)

09181-20251

$2.77

SHIM (22X34X1)

09181-22223

$2.85

WASHER (27X36X1)

09160-27008

$4.00

SPROCKET,ENGINE This part replaces 27510-20A20.

27510-20A22

$89.07

SPACER,ENGINE SPROCKET

27531-35F01

$34.83

CHAIN ASSY (RK 525SM8)

27600-06G40-112

$242.55

.JOINT SET,DRIVE CHAIN | OPT

27620-06G40

$23.82

NUT

09159-20004

$14.15

WASHER (25X41X3)

09160-25009

$4.84
