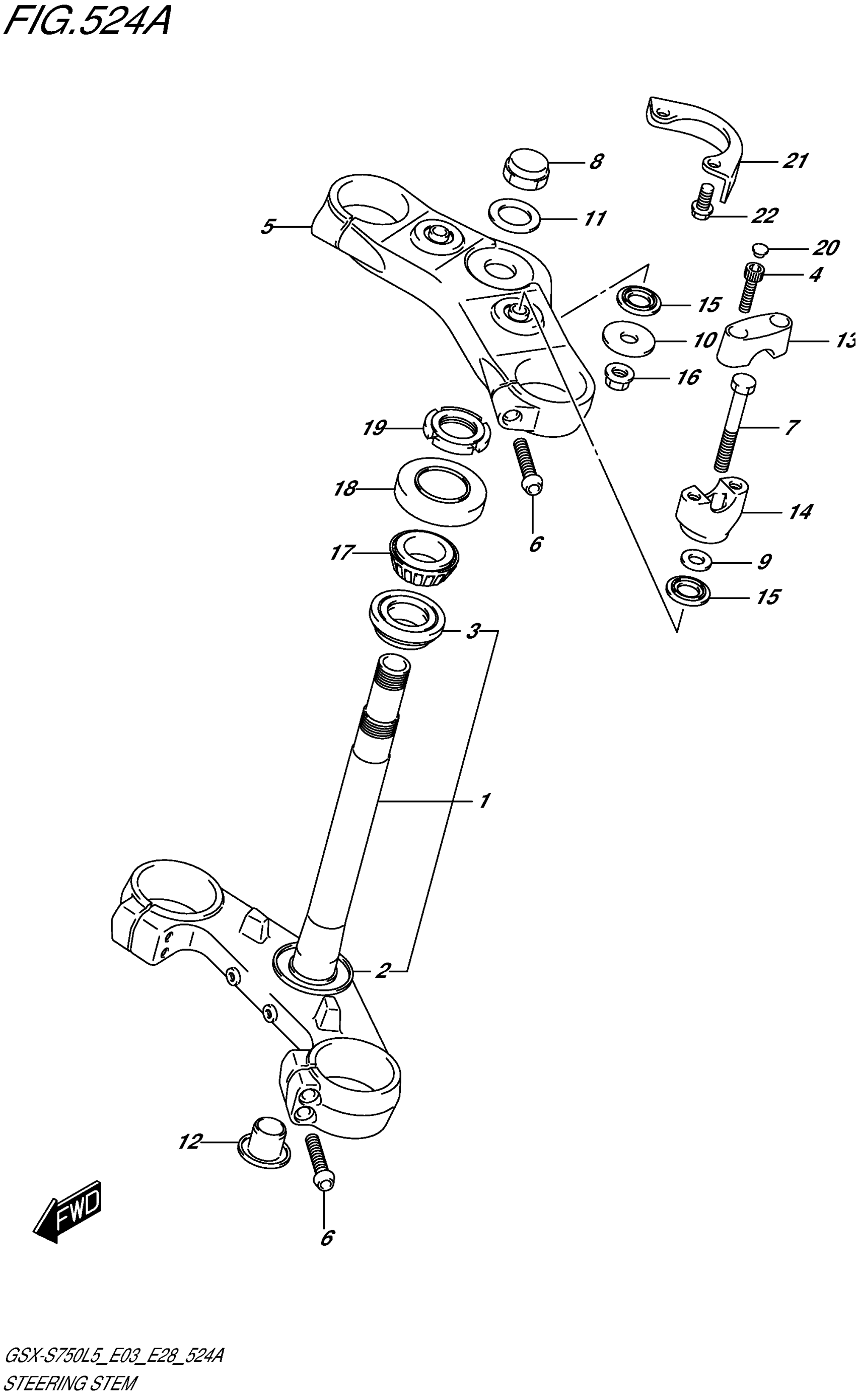

Suzuki GSX-S750L5 (2015) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER (BLACK)

51410-08J00-291

$666.32

2

SEAL, STEERING LOWER

51644-12C00

$8.65

3

BEARING (30X55X17)

09265-30020

$40.65

4

BOLT

51147-17H00

$6.35

5

BRACKET, UPPER (BLACK)

51311-08J00-291

$498.90

6

BOLT (8X40)

51166-40H20

$7.17

7

BOLT

51321-17H10

$5.85

8

NUT, CAP

51353-24B00

$34.62

9

WASHER

51354-17H00

$4.90

10

WASHER

51355-16G00

$6.52

11

WASHER

51356-10D03

$8.47

12

CAP

51482-26F00

$5.82

13

HOLDER, HANDLE (BLACK)

56211-08J00-291

$181.17

14

HOLDER, HANDLE (BLACK)

56221-08J00-291

Unavailable

15

HOLDER RUBBER,HANDLE

56245-08J00

$5.97

16

NUT

08319-3110A

$2.73

17

BEARING (25X47X15)

09265-25038

$41.11

18

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

19

NUT, STEERING STEM

51631-31F00

$22.42

20

CAP (OD:11)

09250-06011

$2.53

21

PLATE,STEERING LOCK

51911-08J01

$20.92

22

BOLT (8X16)

09103-08351

$3.52
